Hager Surge Protection Devices
Hagers range of Surge Protection Devices or SPDs are designed to protect electrical and electronic equipment
The whole nature of how electrical equipment is used in homes and at work has evolved; with everyday activities relying on electronic equipment. A surge protection device is designed to protect electrical devices such as computers and TV's from voltage spikes.
Helps to conform to the 18th edition BS 7671.
Showing 1 - 8 of 8 items

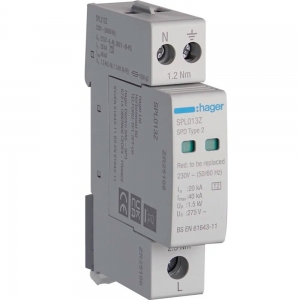

HAGER MODULAR SURGE PROTECTION DEVICES
HAGER ENCLOSED TYPE II SURGE PROTECTION DEVICES
Showing 1 - 8 of 8 items
Surge Protection Devices
SPD’s protect electrical and electronic equipment against transients, originating from lightning, switching of transformers, lighting and motors. These transients can cause premature aging of equipment, downtime, or complete destruction of electronic components and materials. SPDs are strongly recommended for installations that are exposed to transients, to protect sensitive and expensive electrical equipment such as TVs, washing machines, PCs, alarms etc.
Surge protection devices are classified according to their functions:
Type 1
SPD which can discharge partial lightning current with a typical waveform 10/350 μs. Usually employs spark gap technology.
Type 2
SPD which can prevent the spread of overvoltages in the electrical installations and protects equipment connected to it. It usually employs metal oxide varistor (MOV) technology and is characterised by an 8/20 μs current wave.
Type 3
These SPDs have a low discharge capacity. They must therefore only be installed as a supplement to Type 2 SPD and in the vicinity of sensitive loads. Type 3 SPD’s are characterised by a combination of voltage waves (1.2/50 μs) and current waves (8/20 μs).
