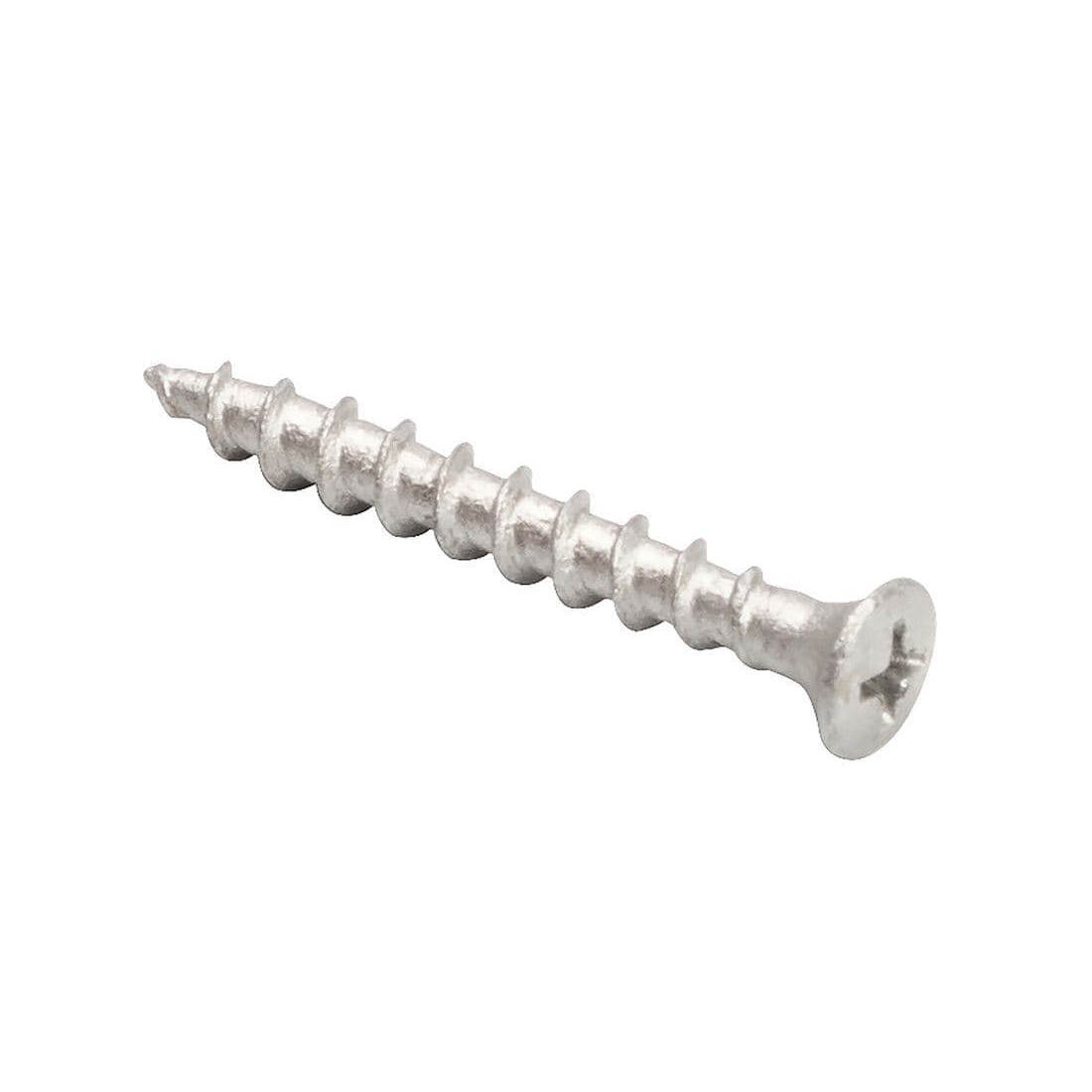

D-Line DFIX/100 Fire Rated Screws With Countersunk Head (Pack Size 100)
Designed to work with D-Line’s U Clips, F Clips and Conduit Saddle clips.
within 1-2 working days
D-Line DFIX/100 Description
These D-Fixing fire rated steel screws comply with 18th Edition wiring regulation and work in conjunction with all fire clips in the D-Line series. D-Fixings hardened steel screw includes a 40mm long shaft and close threads, giving the screw flexibility to work with D-Line’s U Clips, F Clips and Conduit Saddle clips. In fire tests, D-Fixing screw threads remain securely embedded, eliminating the need for anchors or plastic wall plugs. The hardened screw is suitable for masonry, plasterboard, breeze-block, concrete, brickwork and wood.
These fire rated screws cover the latest fire regulations - 18th Edition BS7671 Amendment 3.
D-Line DFIX/100 Features
- Designed to work with D-Line’s U Clips, F Clips and Conduit Saddle clips
- Excellent tensile strength, shear strength and pull out performance
- PZ2 shallow dome head
- Fire rated. Certified for 2 hours at 970°C
- Non-corrosive coating (zinc plated)
- Constructed from pliable steel
- Tensile strength: 1305kg
- Shear strength 683kg
- Concrete pull out load: 591kg
- Brick pull out load: 387kg
- Timber pull out: 305kg
- Diameter: 8.3mm (head)
- Length: 40mm
- Sold in packs of 100
