CP Electronics Green-i PIR Occupancy Switches
The CP Electronics Green-i PIR occupancy switch range is built for straightforward installation and dependable automatic control, helping cut energy use by reducing the time lights and services are left running unnecessarily.
These sensors switch loads on when occupancy is detected and switch off after an adjustable time delay once the area is vacated—ideal for toilets, corridors, storerooms and circulation areas.
Multiple mounting styles are available, including recessed ceiling, surface ceiling, wall mount and retrofit batten mount, giving installers flexibility across different site conditions.
Selected Green-i models include lux level sensing to prevent lighting switching on when there is sufficient natural daylight, delivering even greater savings.
For enhanced setup and user control, the range also includes programmable PIR options and infra-red override models suited to more tailored installations.
Showing 1 - 14 of 14 items
CP ELECTRONICS GREEN-I RECESSED CEILING MOUNTING PIR PRESENCE DETECTORS
CP ELECTRONICS GREEN-I SURFACE CEILING MOUNTING PIR PRESENCE DETECTORS
CP ELECTRONICS GREEN-I SURFACE WALL MOUNTING PIR PRESENCE DETECTORS
CP ELECTRONICS GREEN-I BATTEN MOUNTING PIR PRESENCE DETECTORS
CP ELECTRONICS GREEN-I INFRA-RED REMOTE CONTROLS
Showing 1 - 14 of 14 items
Key Features & Benefits
- GEFL – Green-i recessed ceiling PIR presence detector: white round recessed, single channel, 360° / 6m, lux level sensing, 10 sec–30 min time delay, IP40, 8A 240V, Ø76mm with 65mm recess depth.
- GEFL-IR – Programmable recessed PIR presence detector: white round recessed, single channel, 360° / 6m, lux level sensing, 10 sec–30 min delay, IP40, 8A 240V — requires GEFL-HS handset for programming.
- GEFL-HS – Green-i compact infra-red handset designed for use with GEFL-IR.
- GESM – Surface ceiling PIR presence detector: white round surface mount, single channel, 360° / 7m, pushbutton set-up, lux level sensing, 10 sec–30 min delay, IP54, 10A 240V, Ø94mm.
- SPIR-F – Wall mounting PIR presence detector: white wall mount, single channel, 120° / 9m, lux level sensing, 10 sec–60 min delay, IP20, 10A 240V — requires 1 gang mounting box.
- PDS – Wall mounting 2-wire (no neutral) PIR presence detector: 120° / 9m, lux level sensing, 5–60 min delay, IP20, 10A 240V — requires 1 gang mounting box.

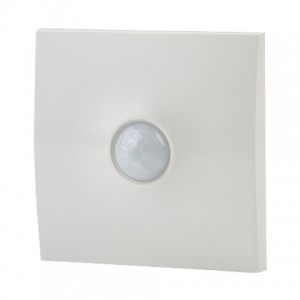

- PDS-PRM – 2-wire (no neutral) wall PIR presence/absence detector with infra-red override, 120° / 9m, lux level sensing, 1–30 min delay, IP20, 10A 240V.
- GIMB – Retrofit batten mount miniature PIR presence detector: white batten mount, 360° / 16m, 10 min time delay, IP65, 2A 240V, compact body (144 x 33 x 28mm).
