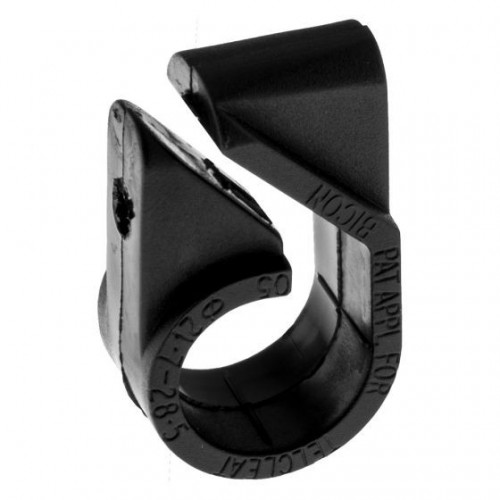

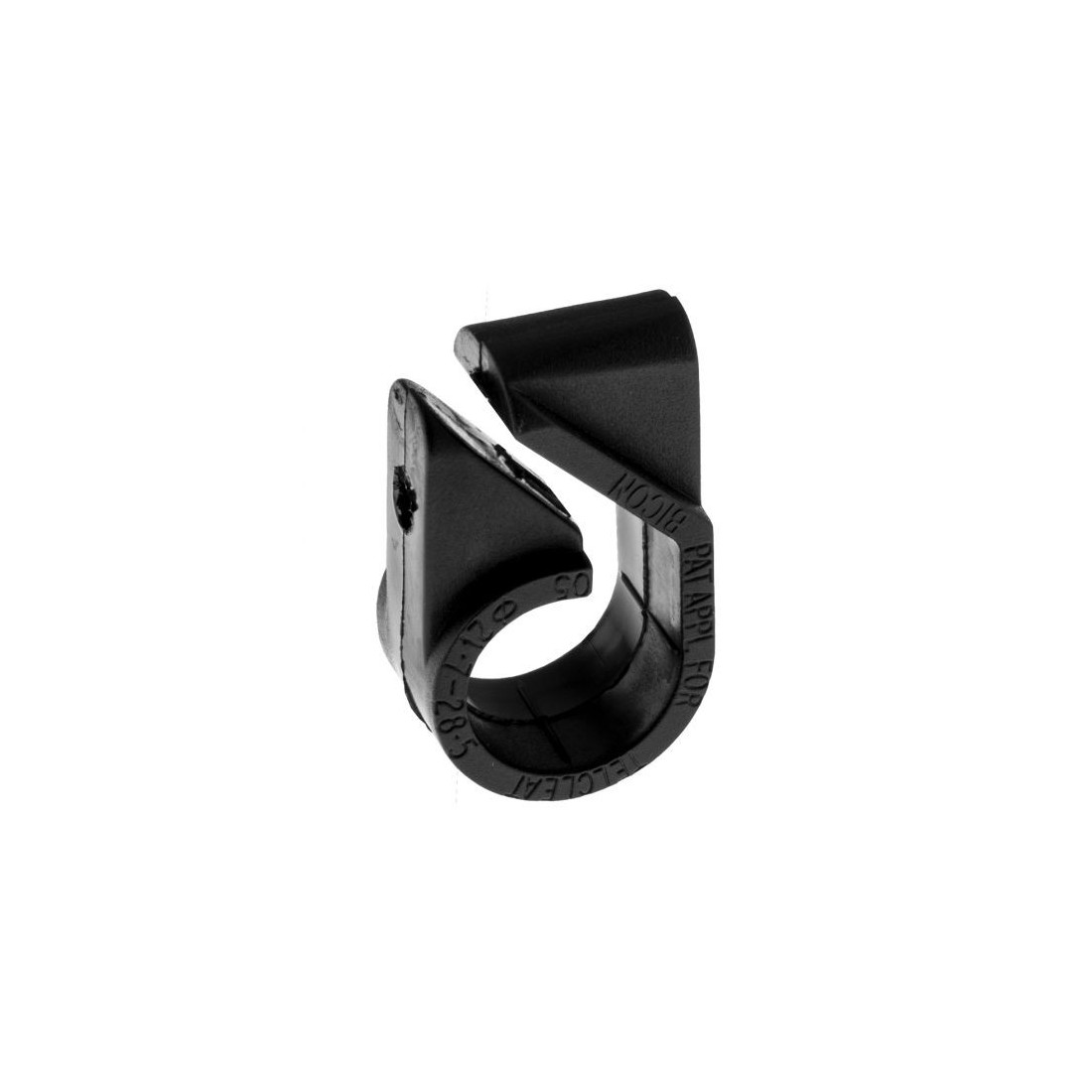

Prysmian 385AA06 BiCON Black Polythene Single Fixing Adjustable Telcleat (Pack Size 25) Cable DiaØ: 26.2mm² - 34.2mm²

Prysmian Cable & Accessories 385AA06 Description

The Prysmian 385AA06 BiCON is a black polythene single fixing adjustable telcleat that offers simple installation of low, medium and high voltage SWA cables with an outer sheath diameter between 26.2mm² - 34.2mm².

Provides excellent grip through its one piece overlapping, single fixing and therefore self adjusting design when clamping, supporting and retaining cables.

Manufactured from sunlight and weather resistant low density polythene that provides protection against all weather conditions and is unaffected by corrosive environments, oils and many chemicals.

The cleat is opened up and placed around the cable so that the end of the cleat containing the slot will be in contact with the mounting surface. It is fixed using an No.8 wood screw or M4 bolt.

When mounting directly on “Unistrut” or “Leprack” type channel section an adaptor plate should be used.

Prysmian Cable & Accessories 385AA06 Features

• Prysmian 385AA06 black single fixing telcleat
• Cable Size: 26.3mm-34.2mm
• Fits SWA Cable: 25mm 4 Core, 35mm 3 Core, 50mm 2 Core
• Construction: Low Density Polythene
• Overlapping self-adjusting ranges
• Sunlight (UV) and weather resistant
• One piece, single fixing design
• Can be double stacked on a single fixing
• Operating temperature: -40°C to +60°C
• Standards: BS EN 50368
• Fixing Method: No.8 Wood Screw or M4 Bolt
• Colour: Black
