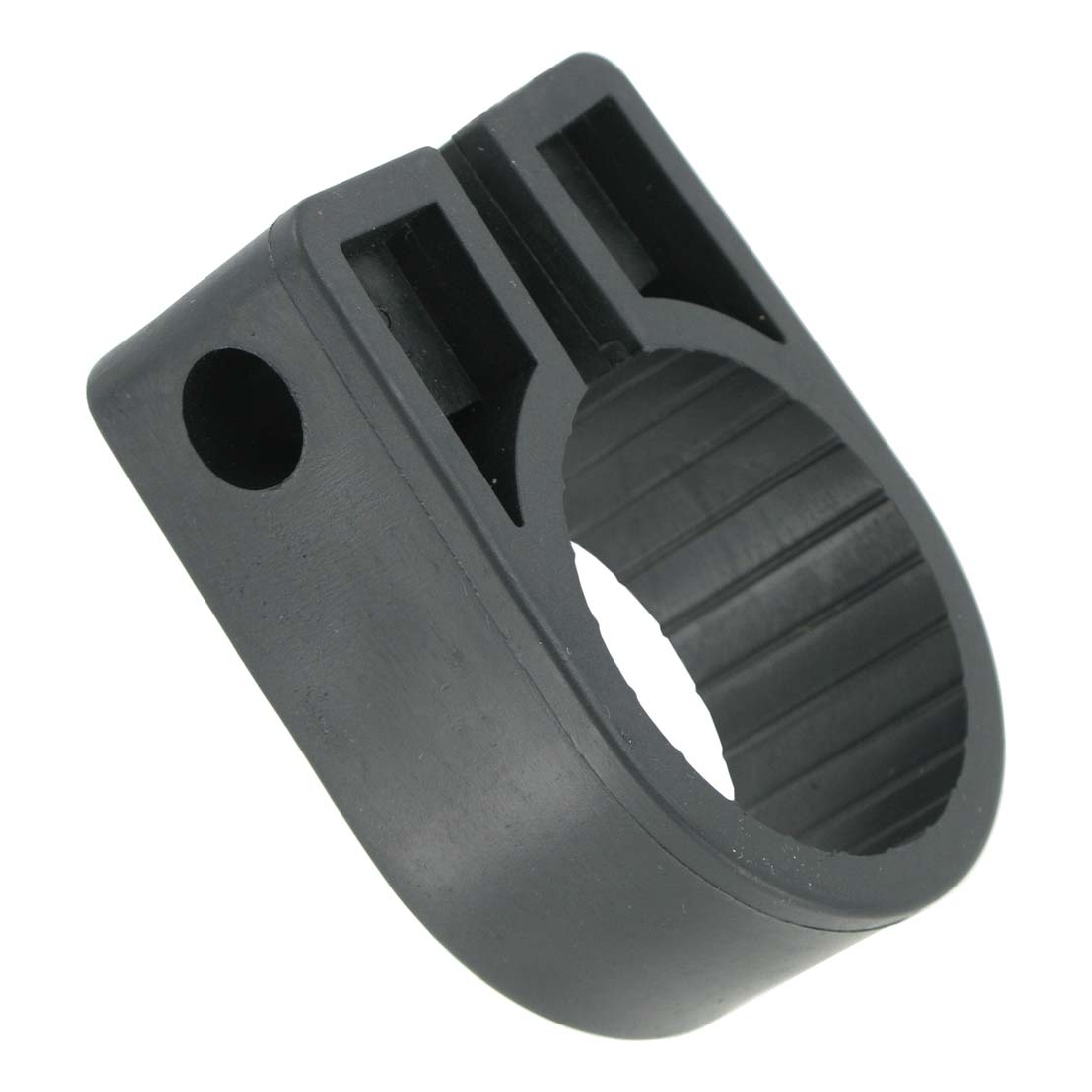

CC12 Black Polypropylene Single Fixing Cable Cleat (Pack Size 50) Cable DiaØ: 27.6mm² - 30.5mm²

Deligo CC12 Description

The CC12 black polypropylene single fixing cable cleat is is suitable for fixing, clamping and supporting SWA cable with an outside diameter between 27.6mm² - 30.5mm².

Offers a simple and economical, single-hold fixing for securing armoured cables when installed at intervals along the length of the cable. The CC12 cleat reduces cable strain by reducing the load of the cables’ weight.

Due to the electrical current flowing through the cable, the cable must have cable clamps in place to ensure movement is restricted. Failure to correctly clamp the electrical cable could result in a break in the flow of electricity and even cause permanent damage.

Manufactured from black polypropylene meaning is has high impact resistance and able to withstand damage over time. It also has a high resistance to ultra violet light, unaffected by corrosive environments.

Fixing screws are not included and need to be ordered separately. The type and length of fixings is determined by the surface the cable cleat is being attached to.

Deligo CC12 Description

• CC12 black one piece, single fixing cable cleat
• Cable Size: 27.6mm² - 30.5mm²
• Pack Size: 50
• Suitable for SWA and heavy duty cables
• Fits SWA Cable: 35mm 3 Core, 35mm 4 Core, 50mm 3 Core
• Construction: Black High Strength Polypropylene
• Provides a simple, but strong fixing point
• Protect cables from damage, vibration and chafing due to excessive movement
• High level of resistance to ultra violet light
• High impact resistance
• Unaffected by corrosive environments
• Provides strain relief
• Fully recyclable
• Stability down to -35°C and up to 105°C constant
• Fixing Method: M10 Bolt
• Standards: BS EN 61914:2016
