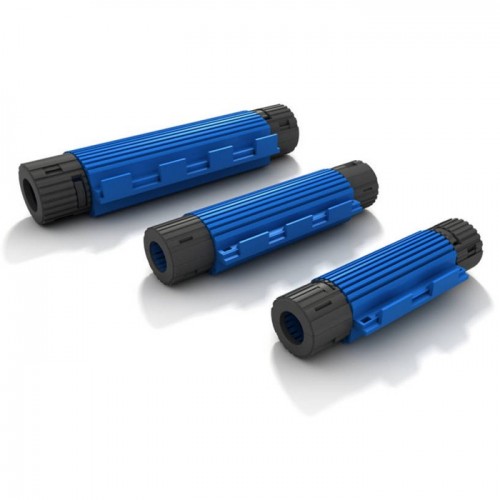

Wiska SH6802AW SHARK SIXEIGHT Blue Polyamide Round Pre-Filled Gel Straight Insulated Joint With Modular Bolts and Gaskets (5 core) 2.5mm² - 10mm² 80A Length: 235mm | DiaØ: 68mm

Wiska SH6802AW Description

The Wiska SH6802AW SHARK SIXEIGHT Blue Polyamide Pre-Filled Gel Straight Insulated Joint is a high-performance cable jointing solution designed for low-voltage electrical systems requiring fast, reliable protection against moisture and dust. Part of the SHARK SIXEIGHT range, this gel joint eliminates the need for mixing or pouring resin — simply insert and close for immediate operation with lasting performance.

Engineered for use with 5-core cables from 2.5 mm² to 10 mm², it is ideal for both steel wire armoured (SWA) and unarmoured PVC/XLPE/EPR cables in demanding environments. The pre-filled silicone gel provides excellent electrical insulation and strong mechanical performance. With an IP68 rating, the SH6802AW delivers 100 % watertight and dust-tight protection, making it suitable for outdoor, buried, duct and wet location installations.

Modular bolts, gaskets, earth braid and spring coil accessories are included for a complete, secure electrical and mechanical connection. The joint’s re-enterable design allows access for inspection or re-termination without replacing the gel, reducing long-term maintenance costs and downtime.

Wiska SH6802AW Features

• Product: Wiska SH6802AW SHARK SIXEIGHT pre-filled gel insulated straight joint
• Cable compatibility: 5-core cables 2.5 mm² – 10 mm²
• Rated current: 80 A capacity for safe electrical load
• Voltage rating: 0.6 kV – 1 kV low-voltage system compatibility
• Ingress protection: IP68 — watertight and dust-tight for underground and wet environments
• Housing material: Durable blue polyamide with pre-filled silicone gel for electrical insulation and sealing
• Temperature range: –20 °C to +90 °C operational range
• Glow wire test: Self-extinguishing outer material for safety
• Installation: Ready-to-use gel joint — no mixing, pouring or curing required
• Re-enterable: Gel joint can be reopened for maintenance or re-termination
• Included accessories: Modular bolts and gaskets, earth braid, cable retention clamp and constant force spring coils
• Suitable for: SWA and unarmoured PVC/XLPE/EPR cables in outdoor, buried, duct or wet locations
• Dimensions: approx. 235 mm (L) × 68 mm (W) × 48 mm (D)
• Benefits: Immediate operation, excellent insulation, strong mechanical performance, no expiry date
