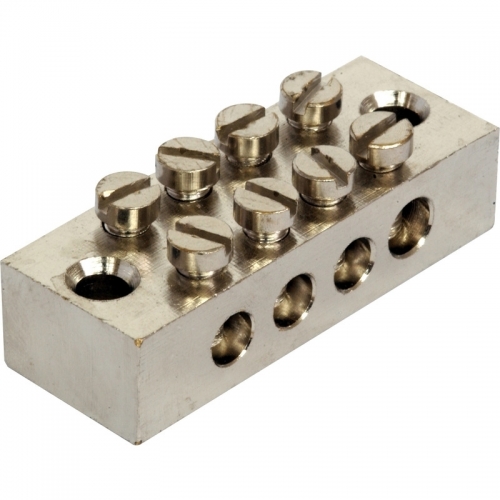

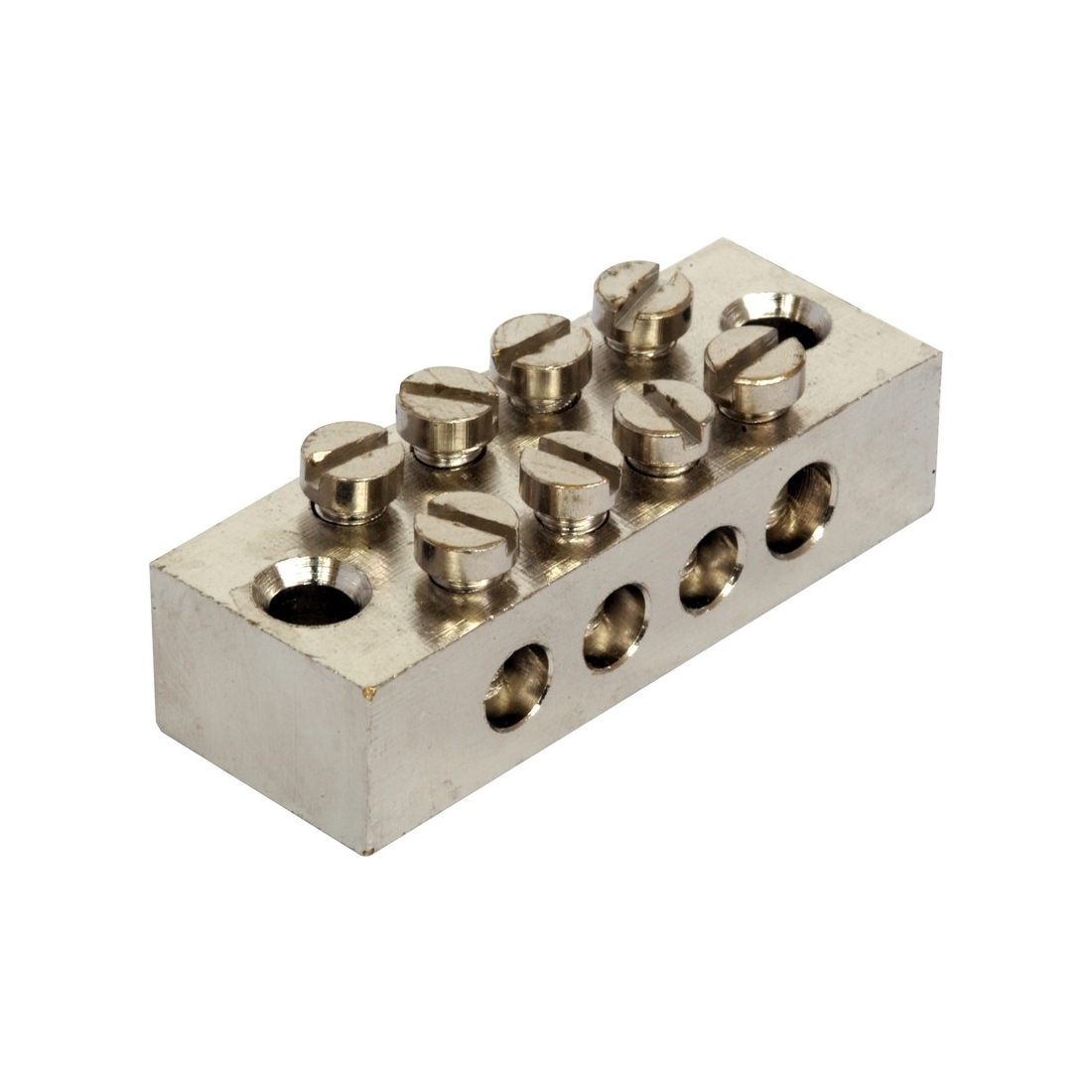

EB4 Brass 4 Way Double Pole Earth Block Terminals: 1 x 25mm² & 3 x 16mm²

Deligo EB4 Description

The Deligo EB4 is a 4 way double pole multi-use earth terminal block manufactured from brass to BS2498 with nickel plated matt finish to BS1872.

Takes up to 3 x 16mm² & 1 x 25mm² conductors allowing earth conductor termination, or live conductor termination with a suitable, fully insulated housing.

Supplied with slotted screws that terminate the wiring by screwing down into the earth terminal block for ease and speed of installation. Features two fixing holes at either end of the bar.

Commonly used to connect mains incoming earth cable from the meter to the consumer unit.

Deligo EB4 Features

• Deligo EB4 4 way earth block
• 4 Way double pole configuration
• Solid brass casting
• Hole sizes (conductor size): 1 x 6.5mm (25mm²), 3 x 5.5mm (16mm²)
• Allows earth conductor termination, or live conductor termination with a suitable, fully insulated housing
• Supplied with slotted screws that terminate the wiring
• Features two fixing holes at either end of the bar
• Commonly used to connect mains incoming earth cable from the meter to the consumer unit
