EC16/3 Green Earth Clamp For All Conditions Terminal Size A - D 2.5mm² - 16mm² | Pipe Dia : 50mm-75mm

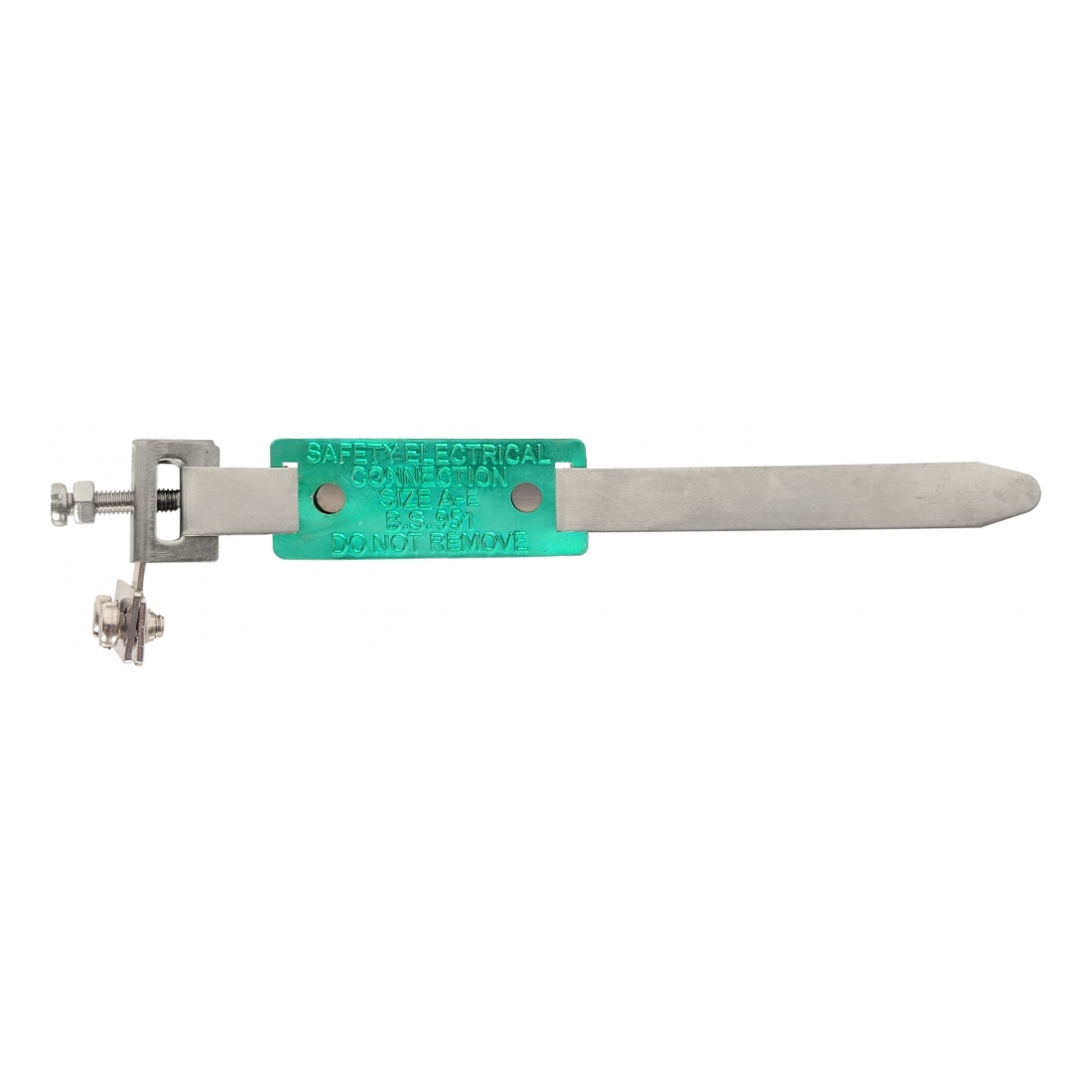

The Deligo EC16/3 is a green coded adjustable earthing clamp suitable for earth bonding 2 x 2.5mm² - 10mm² wires to 50mm - 75mm diaØ pipes and other circular metal tubes in damp, humid and corrosive installations.
Order code: EC16-3
Manufacturer: Deligo
GTIN: 5060467396042
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Deligo EC16/3 Description
The Deligo EC16/3 is a green coded adjustable earthing clamp suitable for earth bonding 2 x 2.5mm² - 10mm² wires to 50mm - 75mm diaØ pipes and other circular metal tubes in damp, humid and corrosive installations.
Fix to wet filled radiators, steel kitchen sinks, ducting, suspended ceilings or any other metal work that offers a ‘fin’ contact area.
The strap and clamp housing are made from stainless steel, while the cable tag, fixing screws and locking nut are made from brass.
Simple and quick to install, they offer a convenient & easy method of complying with the current IET wiring regulations.
Deligo EC16/3 Features
- Deligo EC16/3 adjustable earthing clamp
- Green coded
- Suitable for damp, humid and corrosive conditions
- Strap and clamp housing are made from stainless steel
- Cable tag, fixing screws and locking nut are made from brass
- Embossed with safety advice, size and standard
- Complies with BS951
- Fits Pipes: 12mm-32mm
- Wire Sizes: 2 x 2.5mm²-10mm²
