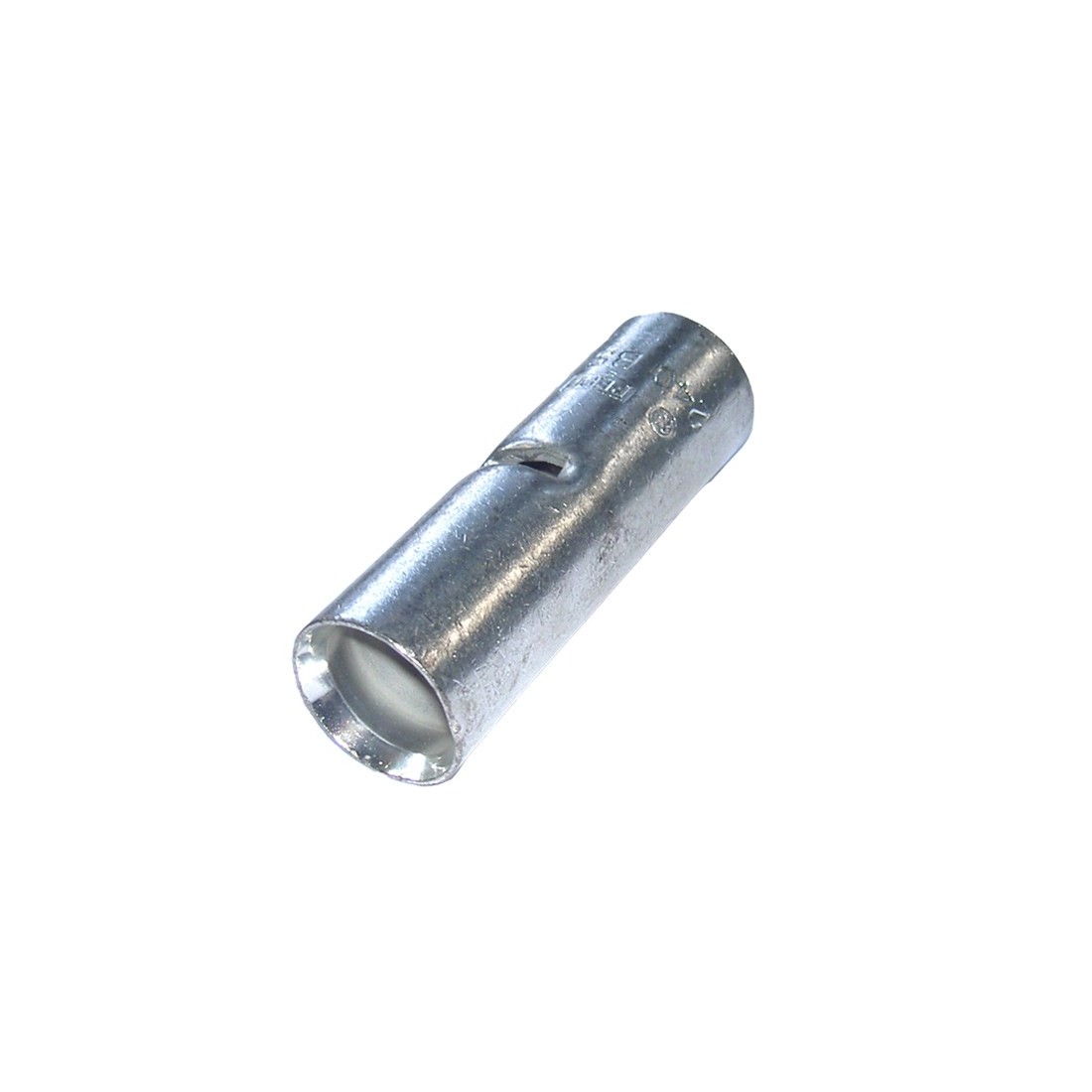

SWA 10BS Copper Butt Splice Cable Size: 10mm² - Priced Individually
The SWA 10BS is a single uninsulated copper butt splice for use when jointing 10mm² diameter cable up to 1000V ac.
Order code: 10BS
Manufacturer: SWA
GTIN: 5050291021050
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
SWA 10BS Description
The SWA 10BS is a single uninsulated copper butt splice for use when jointing 10mm² diameter cable up to 1000V ac.
Features an internal taper at both ends to ease the insertion of the conductor and a central stop to ensure correct positioning.
Manufactured from 99.5% seamless copper tube and fully annealed to ensure optimum ductility and prevent deformation such as cracking and splitting when crimping.
SWA 10BS Features
- SWA 10BS uninsulated copper butt splice
- Suitable for jointing 10mm² diameter cable
- Supplied individually
- Max Voltage: 1000V ac
- Manufactured from 99.5% seamless copper tube and fully annealed
- Ensures optimum ductility to avoid severe deformation when crimped
- Internal taper at both ends to ease the insertion of the conductor.
- Central stop to ensure correct positioning
- Standards: BS EN 61238-1:2003 Grade A, BS EN 12449:1999
- Certified by: Dekra International
