SWA 50-16TQ Copper Tube Terminal Stud Size M16 | Cable Size: 50mm² - Priced Individually

SWA 50-16TQ Description

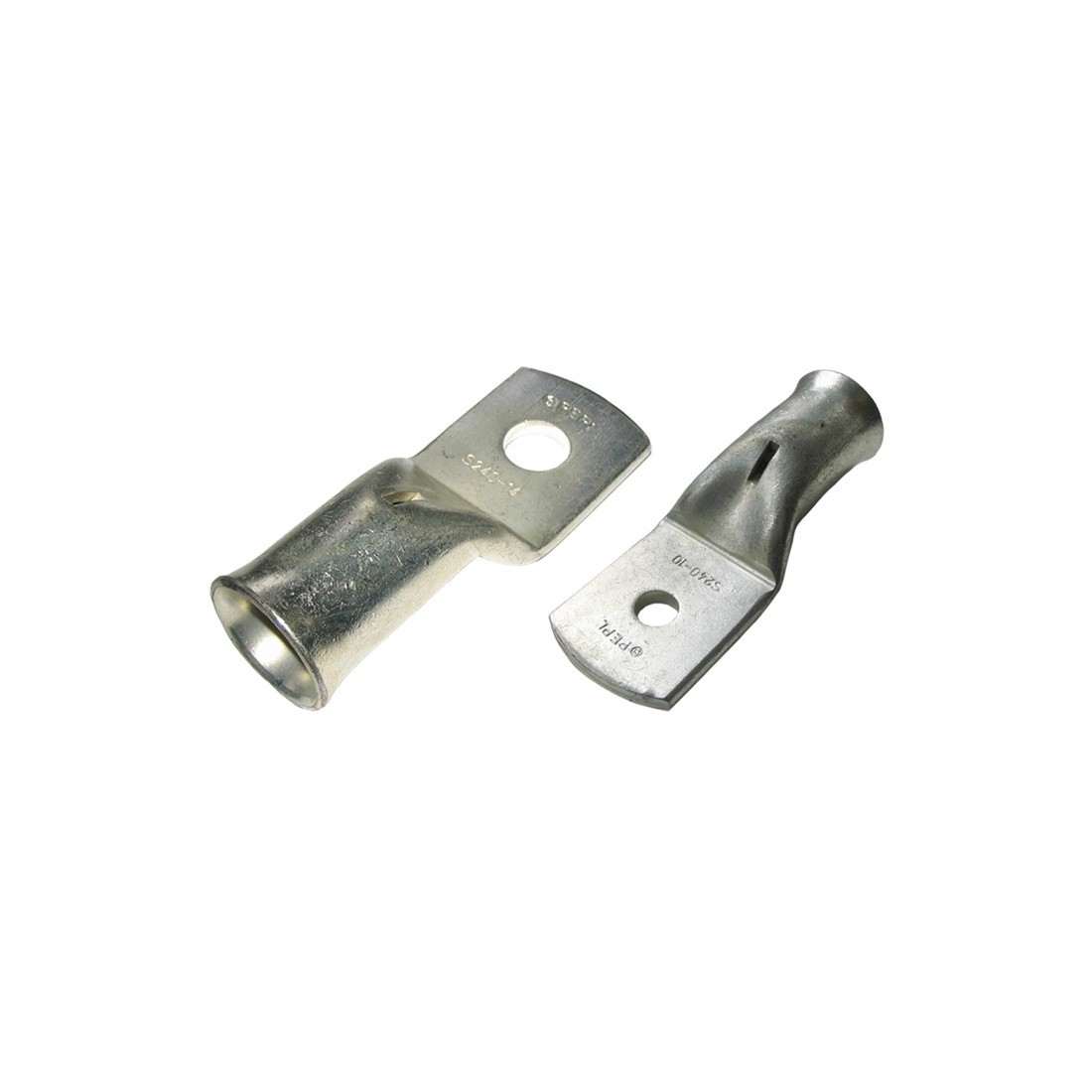

The SWA 50-16TQ is an uninsulated copper tube terminal with M16 stud for terminating 50mm² cable. Manufactured from seamless copper tube to BS EN 12449:1999.

Designed with bell-mouthed entry for easy termination to cable and inspection window which enables the installer to ensure full and correct insertion of the conductor and a flared entry to enable a smooth transition from terminal to conductor.

Manufactured from 99.5% copper and fully annealed to ensure optimum ductility and prevent deformation such as cracking and splitting when crimping. They provide a clean, easy and reliable electrical and mechanical connection.

Predominantly used to terminate mains or power cables whether it be in switch gear, motor and transformer terminal blocks or commercial distribution boards

SWA 50-16TQ Features

• SWA 50-16TQ uninsulated copper tube terminal
• Supplied individually
• Suitable for power cables up to 1000V
• Bell mouth for easier cable insertion
• Terminals are supplied with an inspection window
• Ensure full and correct insertion of the conductor
• Flared entry ensures a smooth transition from terminal to conductor
• All terminals are manufactured from 99 .5% copper and fully annealed
• Optimum ductility to avoid severe deformation such as cracking and splitting when crimped
• Standards: BS EN 12449:1999, BS EN 61238-1:2003 Grade A
• Certified by: Dekra International
• Dimensions: Stud Size M16 | Cable Size: 50m²
