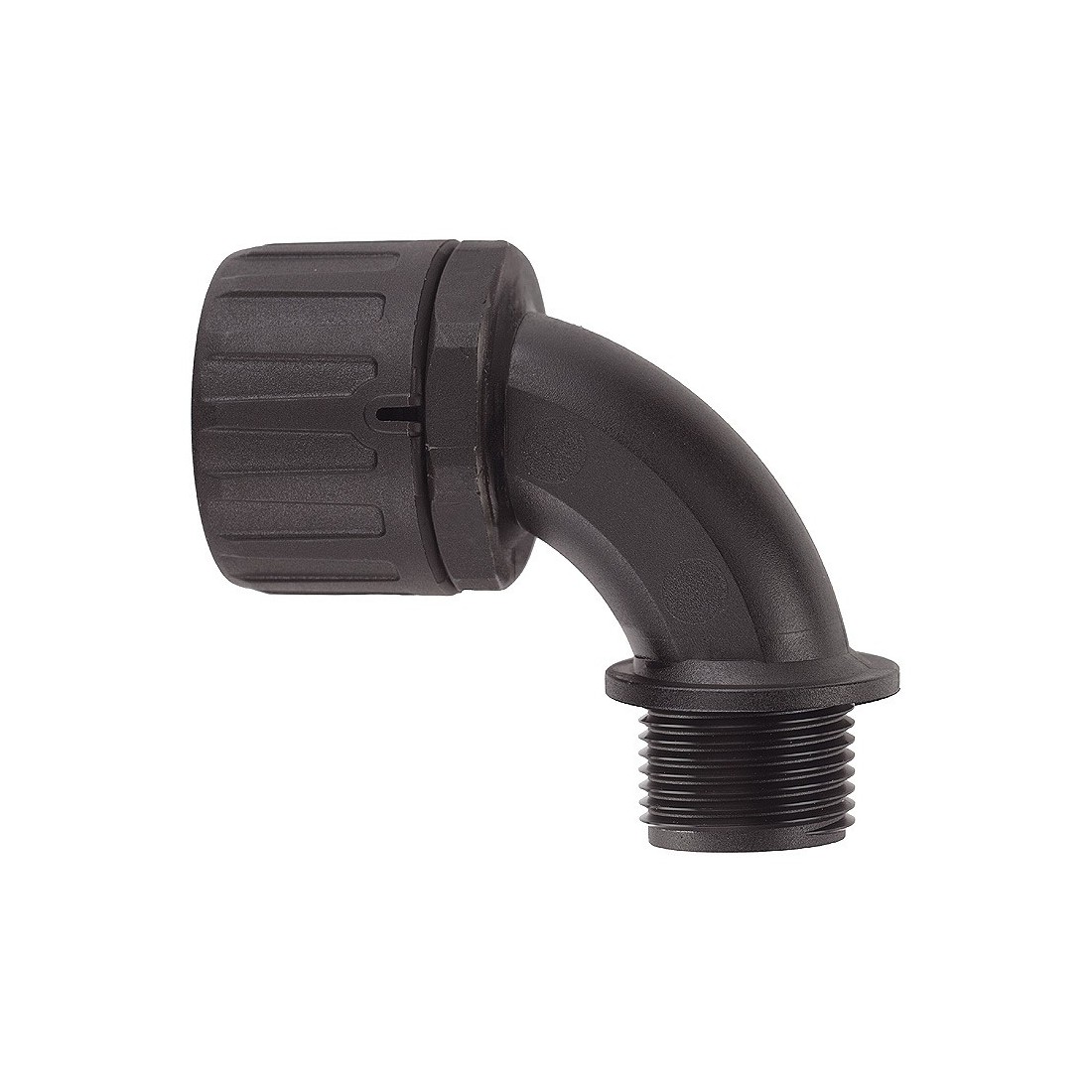

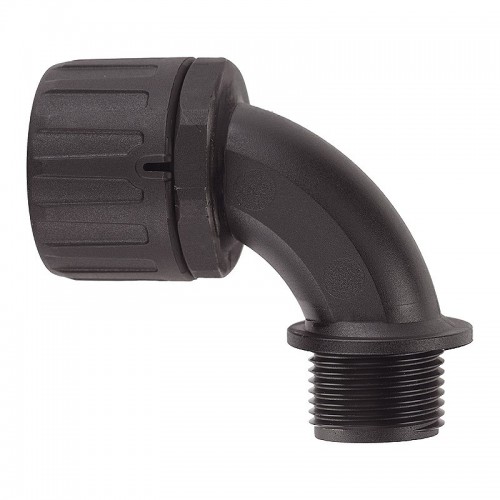

Flexicon FPA21-M20-90B Type FPA90 Black Nylon 90° Elbow External Thread Connector For FPAS Flexible Conduit IP66 DiaØ: 21mm | Thread Size: M20

Flexicon FPA21-M20-90B Description

Flexicon Type FPA FPA21-M20B-90B is an IP66 black nylon 21mm diameter female 90° elbow M20 external thread connector for non-metallic flexible conduit.

Fast fit, tamper resistant moulded fitting suitable for use with knockouts. The all round teeth give high pull-off strength. Can be removed using a flat bladed screwdriver

Vibration and shock tested to EN61375 Cat2

Flexicon FPA21-M20B-90B Features

• Flexicon FPA21-M20B-90B female 90° elbow nylon connector
• Suitable for fine and coarse pitch flexible conduits
• Finish: Black
• IP66 rated
• Low fire hazard (LFH)
• Single part
• External thread
• Fast fit suitable for use with knockouts
• Tamper resistant
• All round teeth give high pull-off strength
• Can be removed using a flat bladed screwdriver
• Vibration and shock tested to EN61375 Cat2
• Temperature range: -50°C to +135°C
• Approvals: CE, BS EN IEC 61386, Lloyds Register, UL Listed, REACh, RoHS
• Dimensions: Diameter Ø: 21mm | Thread Size: M20
