Flexicon FPA28-M25B Type FPA Black Nylon Straight Fixed External Thread Connector For FPAS Flexible Conduit IP66 DiaØ: 28mm | Thread Size: M25

Flexicon FPA28-M25B Description

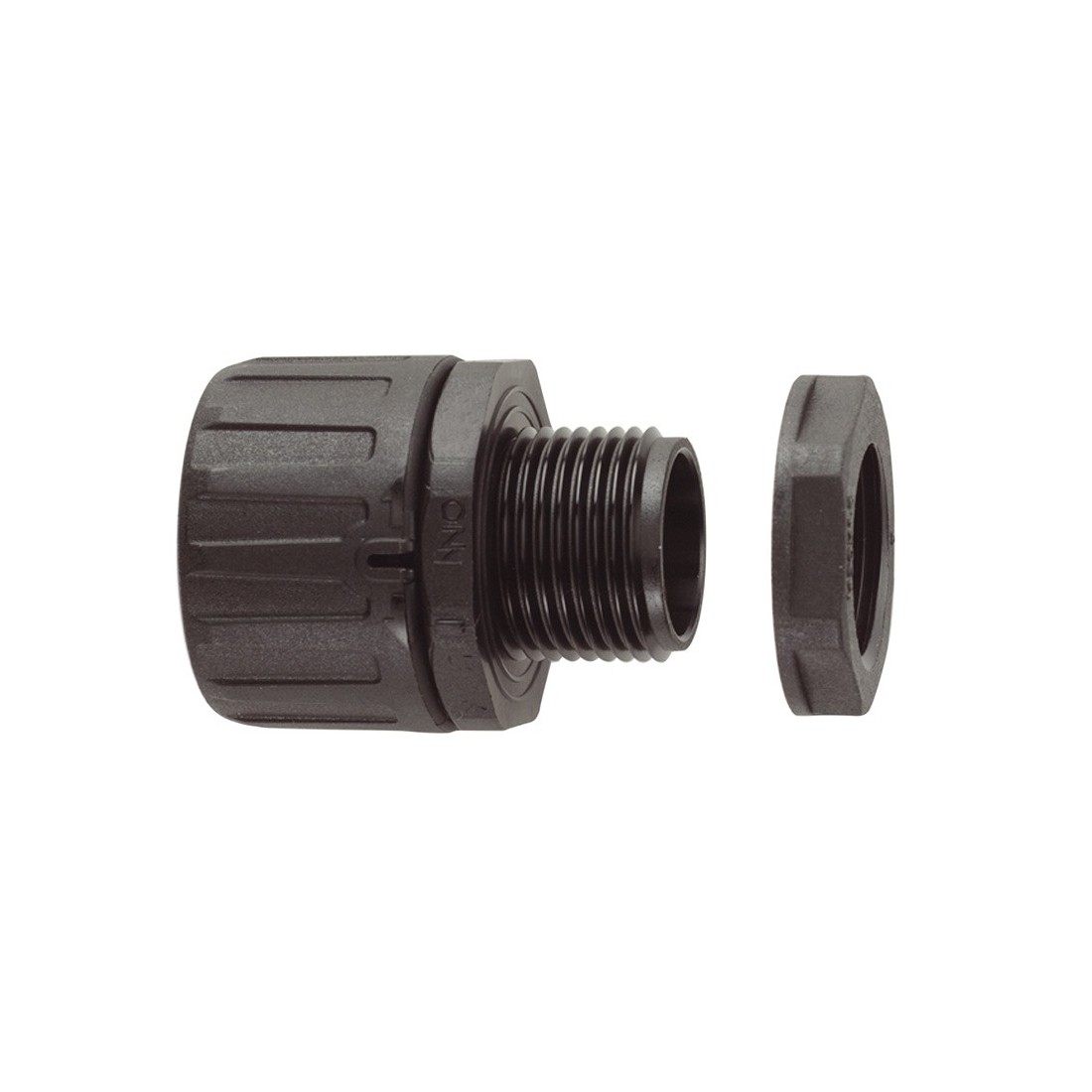

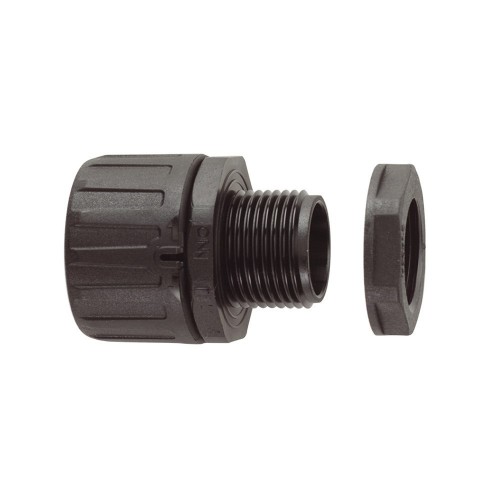

Flexicon Type FPA FPA28-M25B is an IP66 black nylon 28mm diameter straight fixed M25 external thread connector for non-metallic flexible conduit.

Fast fit, tamper resistant moulded fitting suitable for use with knockouts or threaded entries. The all round teeth give high pull-off strength. Can be removed using a flat bladed screwdriver

Vibration and shock tested to EN61375 Cat2

Flexicon FPA28-M25B Features

• Flexicon FPA28-M25B straight fixed nylon connector
• Suitable for fine and coarse pitch flexible conduits
• Finish: Black
• IP66 rated
• Low fire hazard (LFH)
• Single part
• Fast fit suitable for use with knockouts or threaded entries
• Tamper resistant
• All round teeth give high pull-off strength
• Can be removed using a flat bladed screwdriver
• Vibration and shock tested to EN61375 Cat2
• Temperature range: -50°C to +135°C
• Approvals: CE, BS EN IEC 61386, Lloyds Register, UL Listed, REACh, RoHS
• Dimensions: Diameter Ø: 28mm | Thread Size: M25
