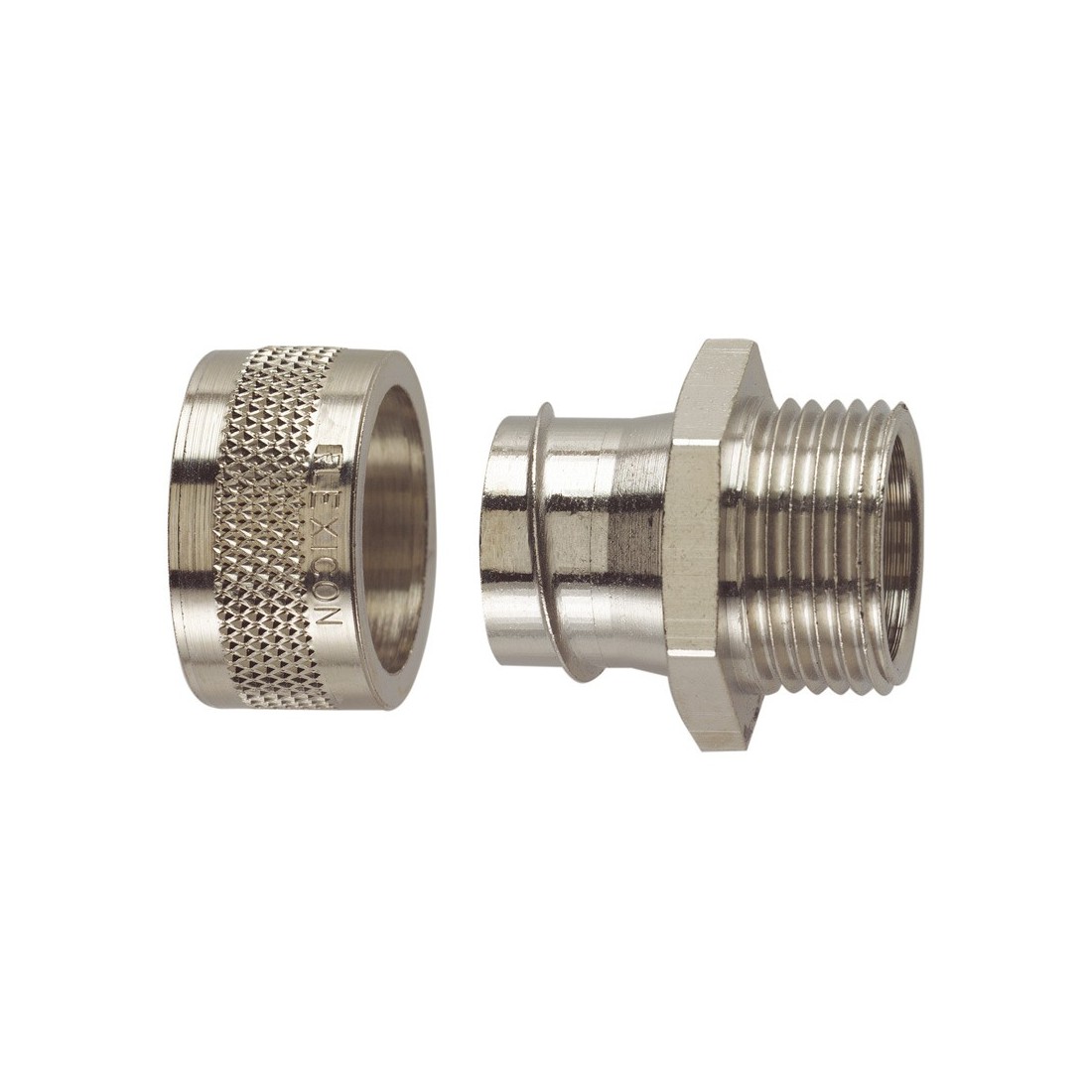

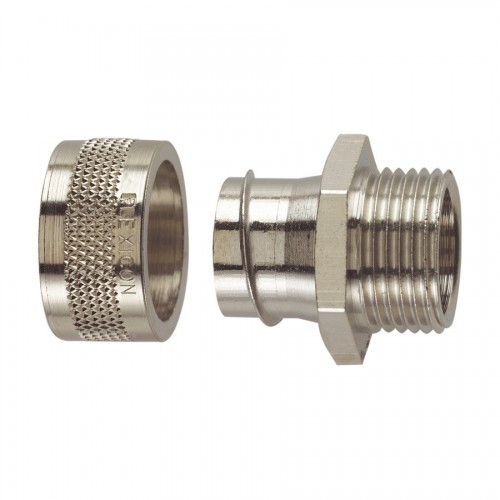

Flexicon FSU20-M20-M Type M Nickel Plated Brass Straight Fixed External Thread Connector For Type FSU Flexible Conduit IP54 DiaØ: 20mm | Thread Size: M20

Flexicon FSU20-M20-M Type M Nickel Plated Brass Straight Fixed External Thread Connector For Type FSU Flexible Conduit IP54

The Flexicon FSU20-M20-M is a 20mm diameter IP54 rated straight fixed nickel plated brass connector with M20 external thread for use with Type FSU flexible conduit.

Order code: FSU20-M20-M
Manufacturer: Flexicon
GTIN: 5052446020468

£ 3.83 incl. VAT
£ 3.19 excl. VAT

Trade Price: £ 104.28
You SAVE
£ 101.09 or 97%
Add to compare
Normally despatched within 1-2 working days
Normally despatched
within 1-2 working days

Flexicon FSU20-M20-M Description

The Flexicon FSU20-M20-M is a 20mm diameter IP54 rated straight fixed nickel plated brass connector with M20 external thread for use with Type FSU flexible conduit.

A two part metal fitting comprising shell and body with external thread. This fitting can be inserted into a knockout and secured with a locknut. Fittings have a high tensile strength and are also vibration tested.

Primarily used commercially in floor boxes and underfloor wiring in office blocks it has an ingress protection rating of IP54.

Flexicon FSU20-M20-M Features

  • Flexicon FSU20-M20-M Type M straight flexible conduit connector.
  • Suitable for Type FSU flexible conduit
  • Manufactured from nickel plated brass
  • IP54 rated
  • Fixed externally threaded
  • Two part fitting comprising shell and body
  • Can be used with threaded entries or knockout
  • Secured with a locknut
  • Operating Temperature: -15°C to +70°C
  • Approvals: CE, BS EN IEC 61386, REACh, RoHS
  • Dimensions: DiaØ: 20mm | Thread Size: M20
