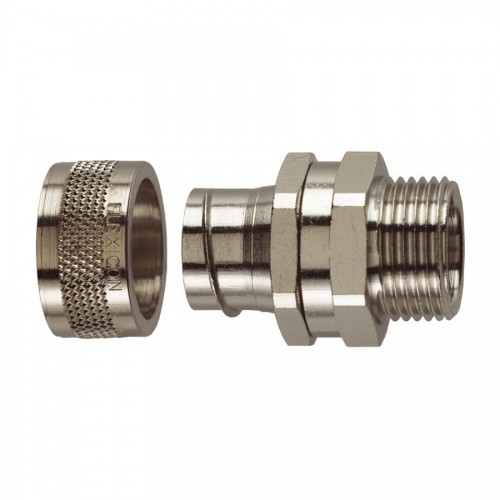

Flexicon FSU20-M20-S Type S Nickel Plated Brass Straight Swivel External Thread Connector For Type FSU Flexible Conduit IP54 DiaØ: 20mm | Thread Size: M20
The Flexicon FSU20-M20-S is a 20mm diameter IP54 rated straight nickel plated brass connector with M20 external thread that swivels about the main body. Suitable for use with Type FSU flexible conduit.
Order code: FSU20-M20-S
Manufacturer: Flexicon
GTIN: 5052446020482
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Flexicon FSU20-M20-S Description
The Flexicon FSU20-M20-S is a 20mm diameter IP54 rated straight nickel plated brass connector with M20 external thread that swivels about the main body. Suitable for use with Type FSU flexible conduit.
A two part metal fitting comprising shell and body with external thread that swivels about the main body. This fitting can be inserted into a knockout and secured with a locknut. Fittings have a high tensile strength and are also vibration tested.
Primarily used commercially in floor boxes and underfloor wiring in office blocks it has an ingress protection rating of IP54.
Flexicon FSU20-M20-S Features
- Flexicon FSU20-M20-S Type S straight flexible conduit connector.
- Suitable for Type FSU flexible conduit
- Manufactured from nickel plated brass
- IP54 rated
- Fixed externally threaded
- Two part fitting comprising shell and body
- The external thread swivels about the main body
- Can be used with threaded entries or knockout
- Secured with a locknut
- Operating Temperature: -15°C to +70°C
- Approvals: CE, BS EN IEC 61386, REACh, RoHS
- Dimensions: DiaØ: 20mm | Thread Size: M20
