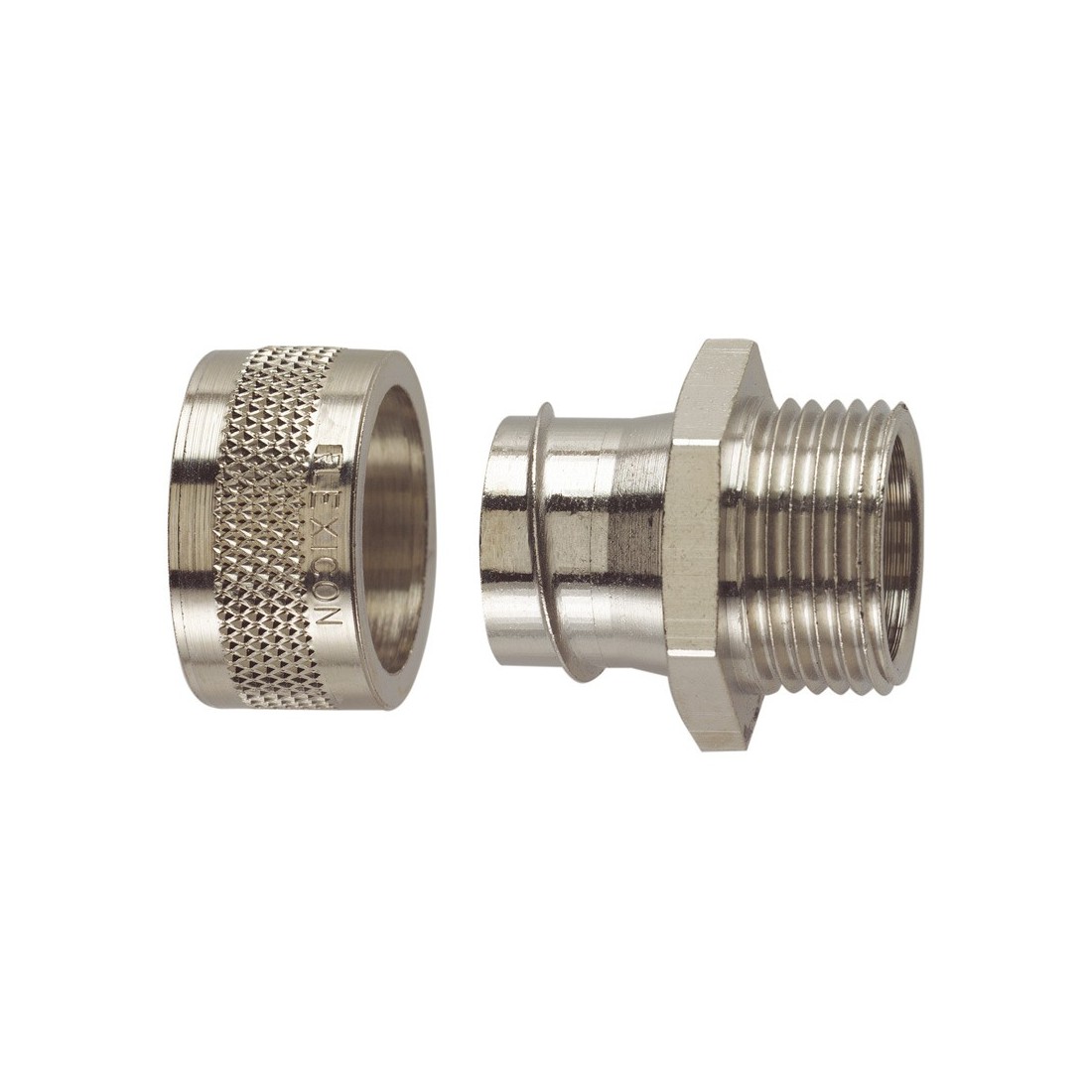

Flexicon FSU25-M25-M Type M Nickel Plated Brass Straight Fixed External Thread Connector For Type FSU Flexible Conduit IP54 DiaØ: 25mm | Thread Size: M25
The Flexicon FSU25-M25-M is a 25mm diameter IP54 rated straight fixed nickel plated brass connector with M25 external thread for use with Type FSU flexible conduit.
Order code: FSU25-M25-M
Manufacturer: Flexicon
GTIN: 5052446020871
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Flexicon FSU25-M25-M Description
The Flexicon FSU25-M25-M is a 25mm diameter IP54 rated straight fixed nickel plated brass connector with M25 external thread for use with Type FSU flexible conduit.
A two part metal fitting comprising shell and body with external thread. This fitting can be inserted into a knockout and secured with a locknut. Fittings have a high tensile strength and are also vibration tested.
Primarily used commercially in floor boxes and underfloor wiring in office blocks it has an ingress protection rating of IP54.
Flexicon FSU25-M25-M Features
- Flexicon FSU25-M25-M Type M straight flexible conduit connector.
- Suitable for Type FSU flexible conduit
- Manufactured from nickel plated brass
- IP54 rated
- Fixed externally threaded
- Two part fitting comprising shell and body
- Can be used with threaded entries or knockout
- Secured with a locknut
- Operating Temperature: -15°C to +70°C
- Approvals: CE, BS EN IEC 61386, REACh, RoHS
- Dimensions: DiaØ: 25mm | Thread Size: M25
