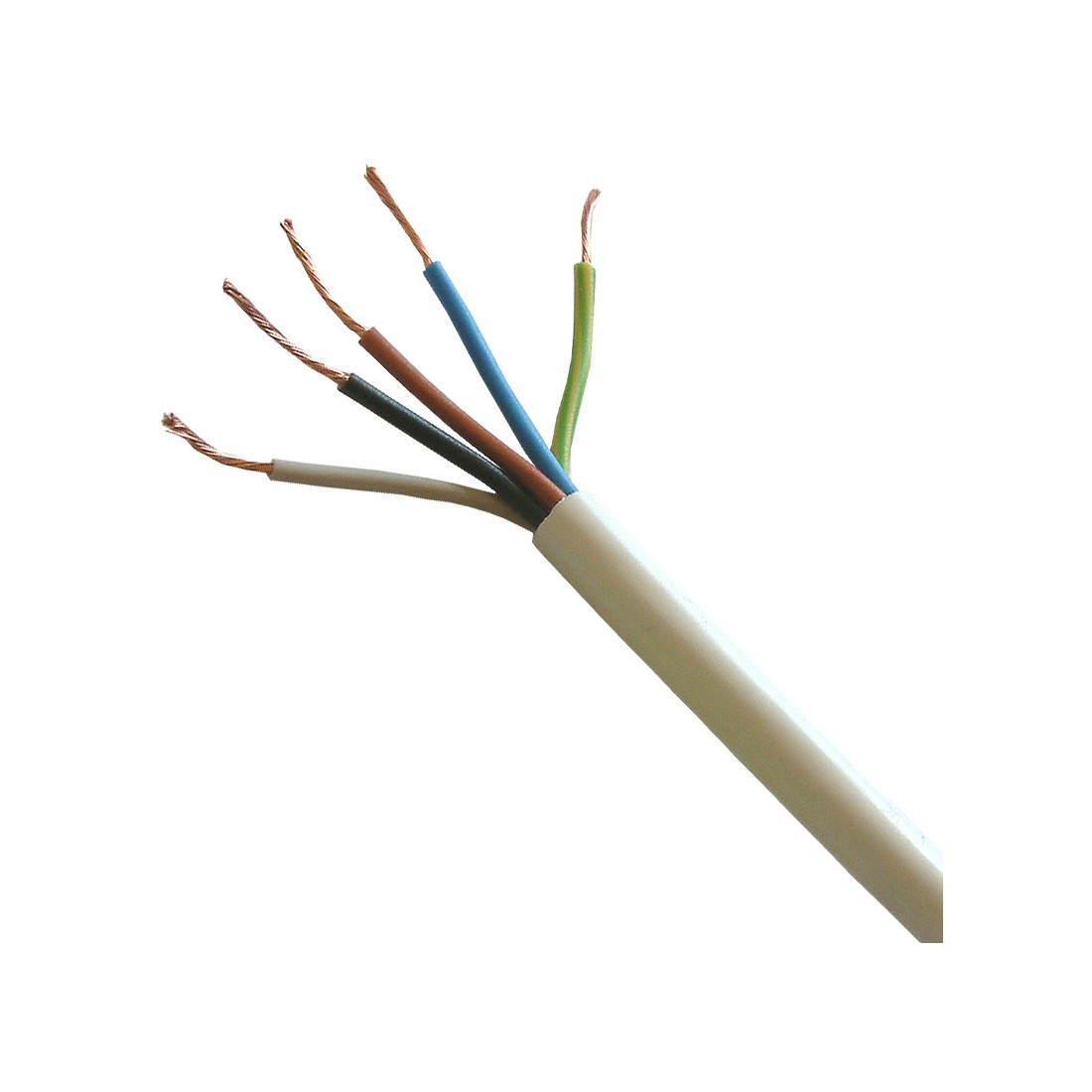

3185Y15WHIB BASEC Approved 3185Y White 5 Core PVC Insulated & Sheathed Circular Flexible Cable 1.5mm 50m Reel
3185Y15WHIB BASEC Approved 3185Y white 5 core 1.5mm² flexible cable 50m reel specifically designed to be manoeuvrable. Applications include lawnmowers, power tools, washing machines, spin dryers and refrigerators etc. Generally unsuitable for outdoor use or industrial applications.
Order code: 3185Y15WHIB
Manufacturer: BASEC Approved Cable
GTIN:
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
BASEC Approved Cable 3185Y15WHIB Description
- Application: Ideal for portable appliances, extensions reels and tight lighting circuits.
- Type: 3185YH
- Number of Cores: 5
- Conductor Diameter: 1.5mm²
- Conductors: Flexible Stranded Copper
- Insulation: PVC
- Outer Sheath Colour: White
- Core Colours: Black, Brown, Blue, Grey, Green/Yellow
- Current Rating: 16A
- Max Voltage: 300/500V
- Standards: BS EN 50525-2-11
- Approximate Diameter: 10.3mm
- Cable Clip Required: 10mm Round
- Length: 50m Reel
BASEC Approved Cable 3185Y15WHIB Features
Construction: Plain annealed copper conductor, PVC insulated five cores twisted together and PVC sheathed.
Standards: Certified to BS6500, 4.0mm² to BS7919, CENELEC HD21.5, VDE 281
Conductor: Class 5 flexible plain copper conductors to BS EN 60228:2005 (previously BS6360)
Standard Colours: 5 Cores - Green/Yellow, Blue, Brown, Black & Grey, / Sheath - White
Voltage Rating: 300/500 Volts
Temperature Rating: 0°C to +60°C.
