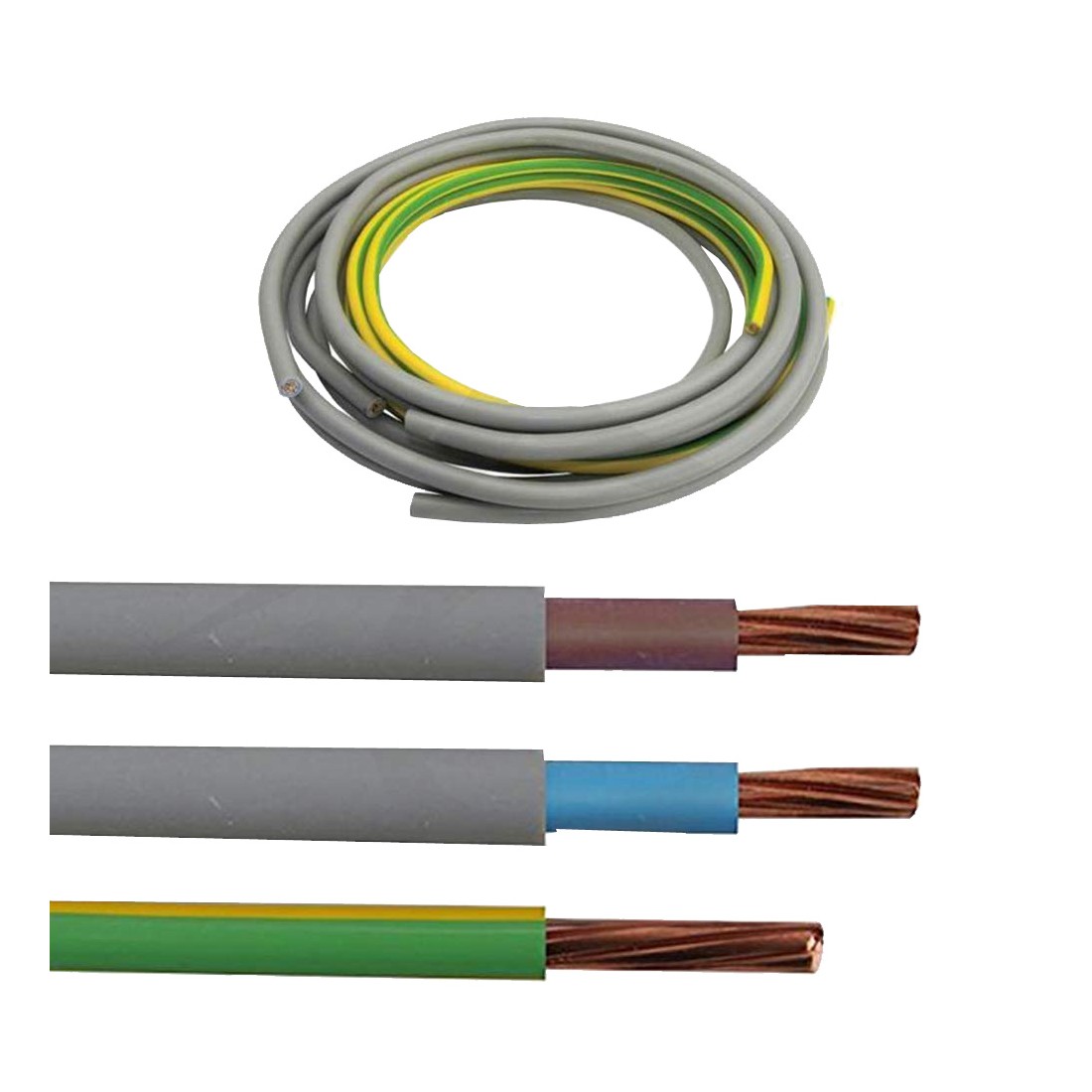

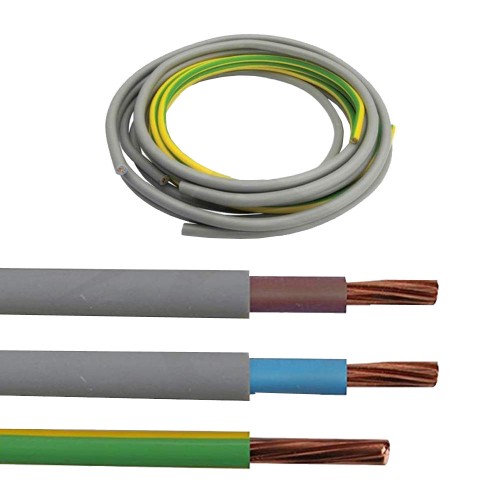

AVDIPK253 BASEC Approved 3m Double Insulated Standard Meter Tail Pack With 25mm 6181Y Blue, 25mm 6181Y Brown & 16mm 6491X Green/Yellow Meter Tails

AVDIPK253 BASEC Approved 3m Double Insulated Standard Meter Tail Pack used to connect a consumer unit to the service head cut out on the electricity meter. Supplied with two 25mm lengths of standard meter tails (brown and blue inner sheath) and a 16mm earth. Suitable for domestic and larger industrial applications, the cable can be clipped directly to a surface, used on a tray, embedded in plaster or used in free air.

Order code: AVDIPK253
Manufacturer: BASEC Approved Cable
GTIN:

£ 30.22 incl. VAT
£ 25.18 excl. VAT

Normally despatched within 1-2 working days
Normally despatched
within 1-2 working days

BASEC Approved Cable AVDIPK253 Description

  • Application: Used to connect a consumer unit to the service head cut out on the electricity meter. Also suitable for connecting smart meters.
  • All Cable is BASEC Approved and Manufactured to all UK and European Standards
  • Conductors: Annealed Copper Conductor
  • Sold as a 3m standard meter tails pack
  • 3m of 25mm² 6181Y Standard Double Insulated Brown Core
    3m of 25mm² 6181Y Standard Double Insulated Blue Core
    3m of 16mm² 6491X Standard Green/Yellow Earth Outer sheath
  • Insulation: PVC
  • Outer Sheath: Grey
  • Max voltage: 300/500 Volt
  • BS Number: BS 6004, BS EN 60332-1-2, BS EN 50525-2-31
  • Rating: 129A
