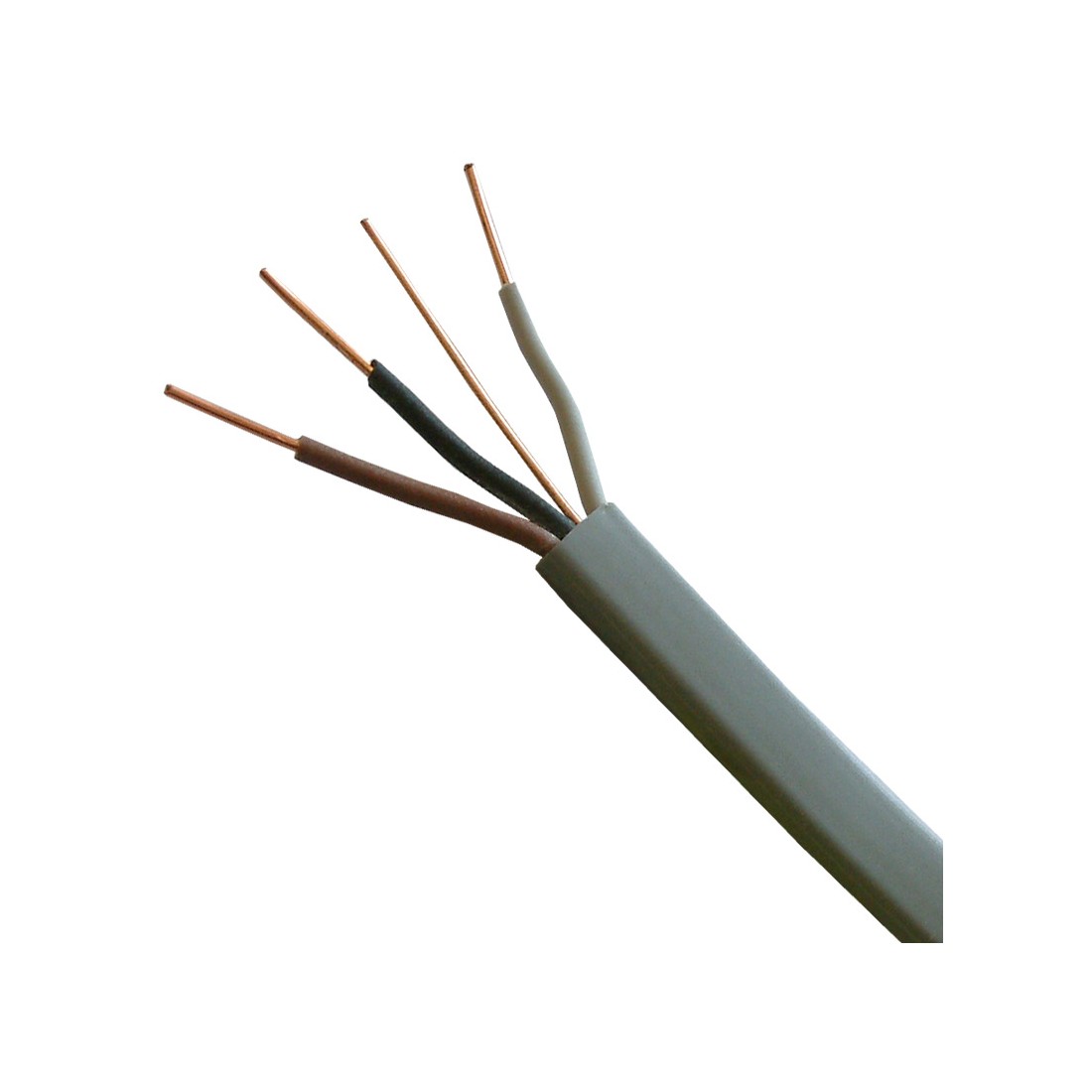

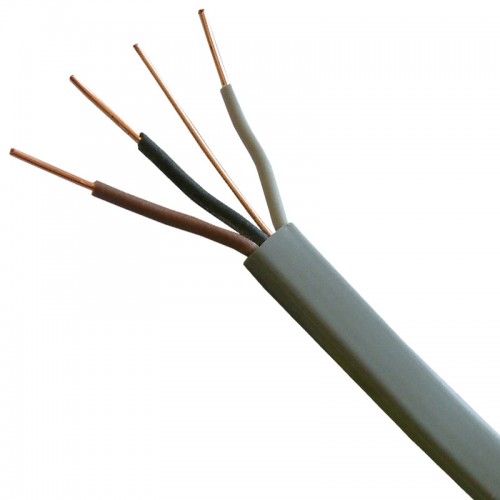

6243YH1.5GREYC BASEC Approved 6243Y Grey 3 Core & Earth Cable 1.5mm 100m Reel
6243YH15GREYC BASEC Approved 1.5mm Three Core & Earth two way lighting cable is shipped on a 100m reel for general purpose installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster making it a the perfect cable for two way lighting circuits.
Order code: 6243YH15GREYC
Manufacturer: BASEC Approved Cable
GTIN:
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
BASEC Approved Cable 6243YH15GREYC Description
- Application: General, domestic and light industrial mains wiring including lighting circuits, central heating, extractor fans etc.
- Type: 6243Y
- Number of Cores: 3
- Conductor Size: 1.5mm²
- Conductors: Solid Plain Copper Cores
- Insulation: PVC
- Outer Sheath Colour: Grey
- Core Colours: Brown, Black, and Grey
- Earth: Bare Copper Wire
- Current Rating: 18A
- Max Voltage: 300/500V
- BS Number: BS6004
- Width: 11.7mm
- Depth: 4.7mm
- Length: 100m Reel
BASEC Approved Cable 6243YH15GREYC Features
Construction: Plain annealed copper conductor, PVC insulated three colour coded cores laid flat with an uninsulated circuit protective conductor CPC and PVC sheathed.
Standards: Certified to BS6004
Conductor: Class 1 solid copper conductor to BS EN 60228:2005 (previously BS6360)
Standard Colours: Core - Grey, Black and Brown / Sheath Grey
Voltage Rating: 300/500 Volts.
