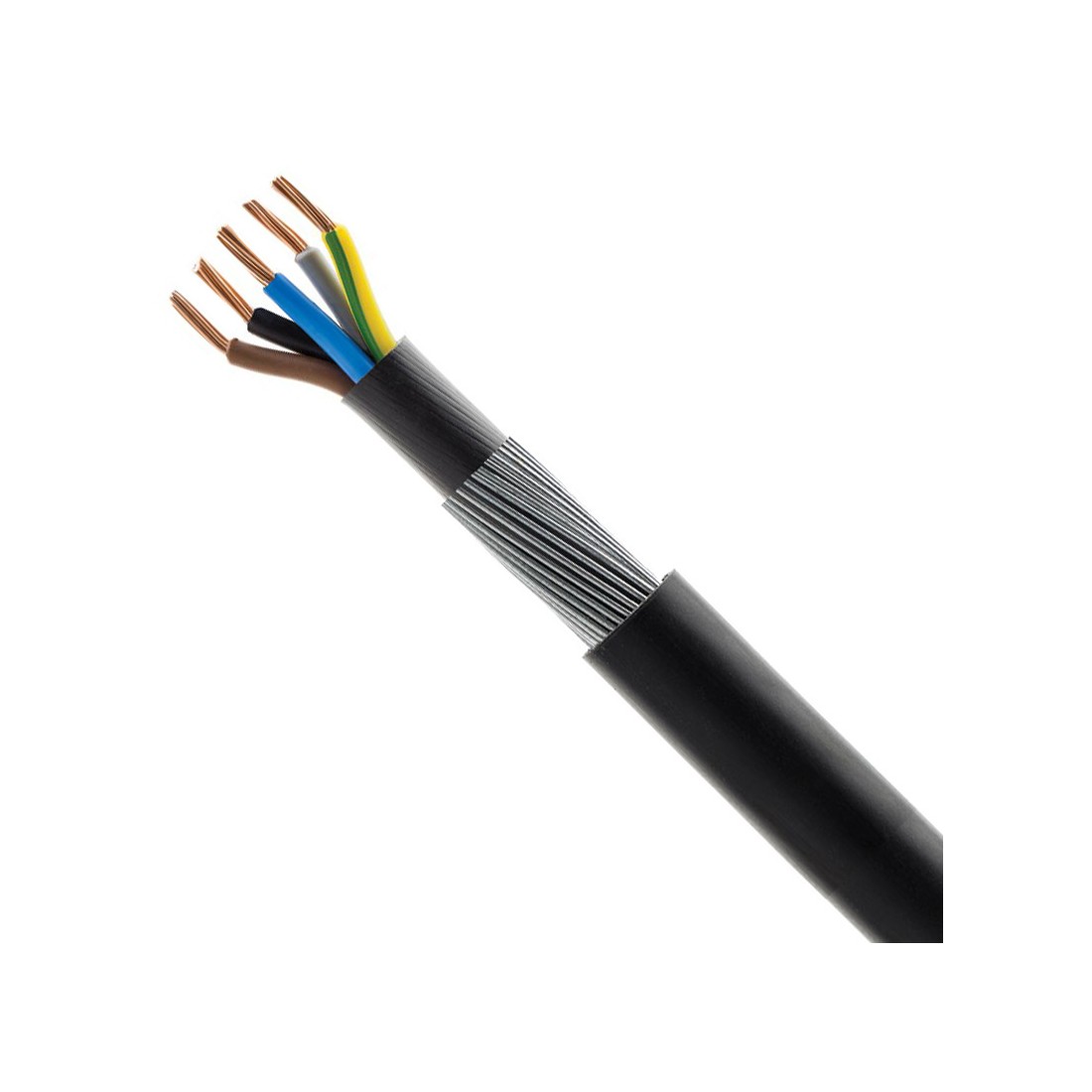

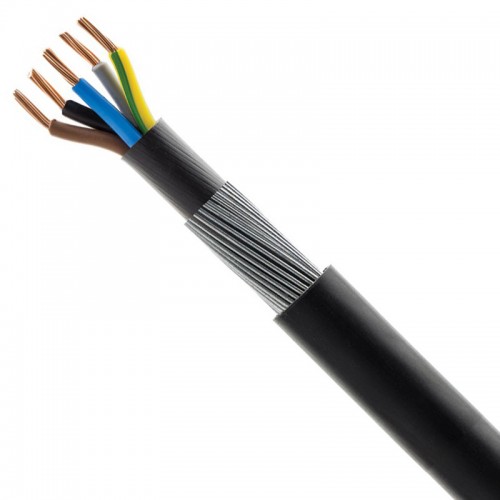

6945LSH15A BASEC Approved 6945X Black 5 Core LSF Steel Wire Armoured Cable 1.5mm (priced per metre)

6945LSH15A BASEC Approved 6945B 5 core 1.5mm LSF XLPE SWA cable cut to length by the metre is a high quality hard-wearing mains power distribution cable providing a high degree of mechanical protection. Suitable for installation underground, outdoor, indoor and for use in cable ducting. May be embedded in concrete. Designed for use where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

Order code: 6945LSH15A
Manufacturer: BASEC Approved Cable
GTIN:

£ 2.11 incl. VAT
£ 1.76 excl. VAT

Normally despatched within 3-4 working days
Normally despatched
within 3-4 working days

BASEC Approved Cable 6945LSH15A Description

  • Application: Auxiliary control, power networks and other mains supply wiring including underground and external applications.
  • Type: 6945B
  • Number of Cores: 5
  • Conductor Diameter: 1.5mm²
  • Length: Cut to length by the metre
  • Insulation: LSZH (Low Smoke Zero Halogen)
  • Conductors: Stranded Copper Conductor
  • Insulation: XLPE (Extruded Cross-Linked Polyethylene)
  • Bedding: LSZH (Low Smoke Zero Halogen)
  • Armouring: Galvanised Steel Wire Armour
  • Earth: In armouring
  • Outer Sheath Colour: Black
  • Core Colours: Brown, Black, Blue, Grey, Green/Yellow
  • Earth: In Armouring
  • Current Rating: 21A
  • Max Voltage: 600/1000V
  • BS number: BS6724

BASEC Approved Cable 6945LSH15A Features

Construction: Stranded plain copper conductors, XLPE insulated three, four or five cores laid up with extruded LSZH bedding, galvanised steel wire armoured and Black LSZH sheathed.

Core colours: Blue, Brown, Black, Grey, Green/Yellow

Voltage Rating: 600/1000 Volts

Temperature limits: -25°C to +90°C

Standards: BS6724, Acid gas emission to BS EN 50267 (IEC 60754-1), smoke emission to BS EN 50268 (IEC 61034) and flame propagation to IEC 60332-1, IEC60332-3, BS EN 50265, Category C; BS EN 50266
