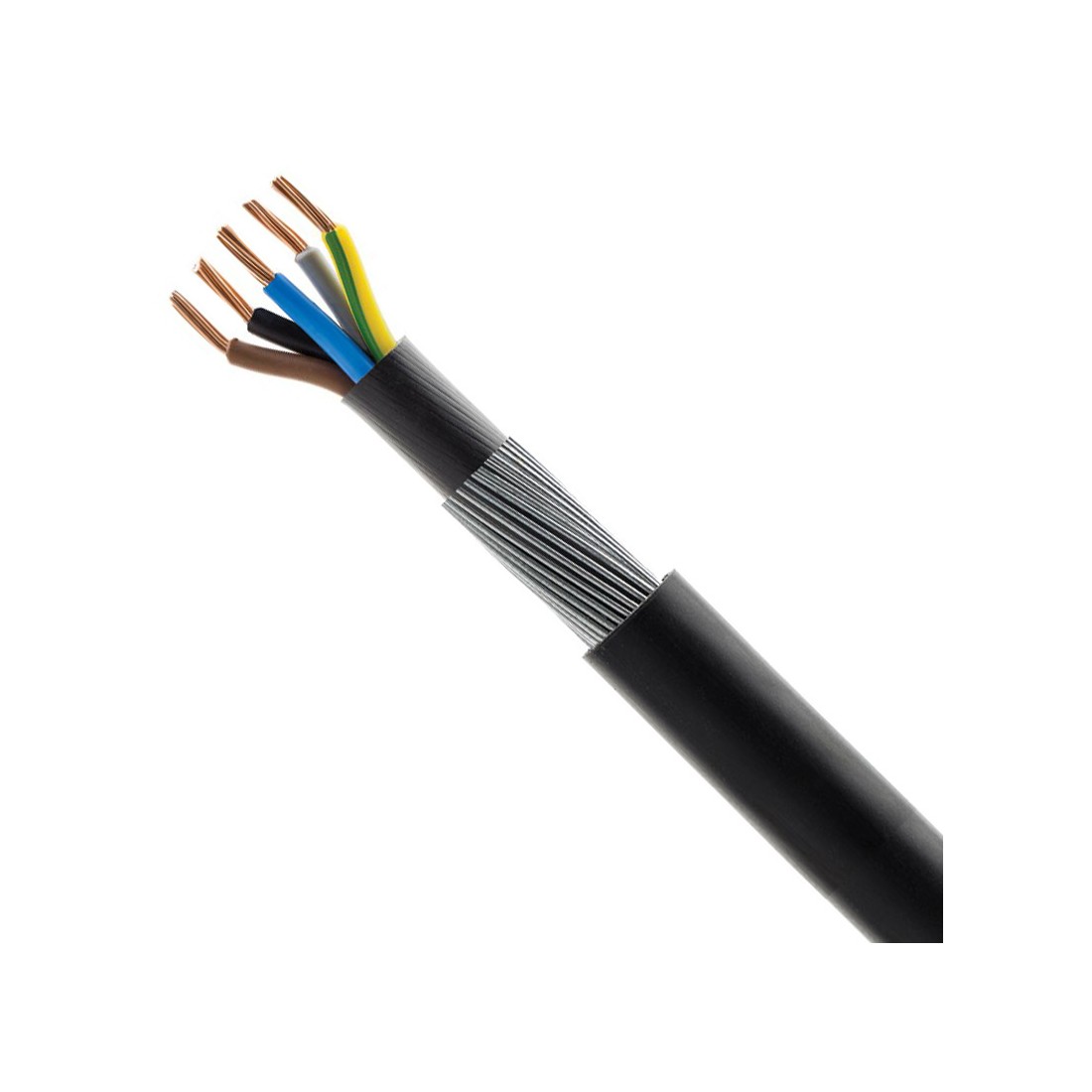

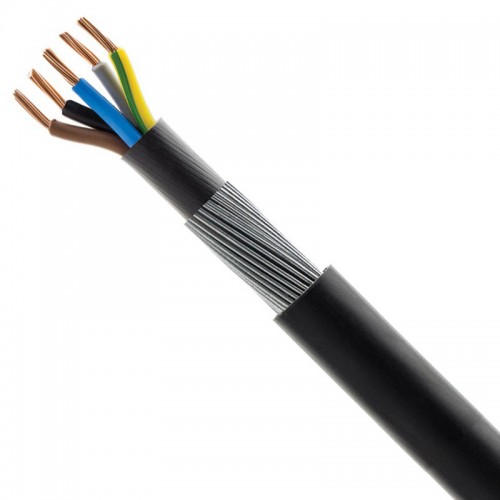

6945X25A BASEC Approved 6945X Black 5 Core PVC Steel Wire Armoured Cable 2.5mm (priced per metre)

6945X25A BASEC Approved 6945X 5 Core 2.5mm SWA Cable Cut to length by the metre is a hard-wearing mains power distribution cables for use underground, outdoor, indoor and for use in cable ducting. May be embedded in concrete.

Order code: 6945X25A
Manufacturer: BASEC Approved Cable

£ 2.78 incl. VAT
£ 2.32 excl. VAT

Normally despatched within 3-4 working days
Normally despatched
within 3-4 working days

BASEC Approved Cable 6945X25A Description

  • Application: Auxiliary control, power networks and other mains supply wiring including underground and external applications.
  • Type: 6945X
  • Number of Cores: 5
  • Conductor Diameter: 2.5mm²
  • Length: Cut to length by the metre
  • Insulation: PVC (Polyvinyl Chloride)
  • Conductors: Stranded Copper Conductor
  • Insulation: XLPE (Extruded Cross-Linked Polyethylene)
  • Bedding: PVC (Polyvinyl Chloride)
  • Armouring: Galvanised Steel Wire Armour
  • Outer Sheath Colour: Black
  • Core Colours: Brown, Black, Blue, Grey, Green & Yellow
  • Earth: In Armouring
  • Current Rating: 28A
  • Max Voltage: 600/1000V
  • Standards: BS 5467, BS

BASEC Approved Cable 6945X25A Features

Construction: Stranded plain copper conductors, XLPE insulated two, three, or four cores laid up with extruded PVC bedding, galvanised steel wire armoured and PVC sheathed.

Standards: Certified to BS5467, IEC 60502

Conductor: Class 2 plain stranded copper conductor to BS EN 60228:2005 (previously BS6360)

Standard Colours: Cores - Blue, Brown, Black, Grey & Green/Yellow / Sheath Black

Voltage Rating: 600/1000 Volts

Temperature Rating: 0°C to +90°C.
