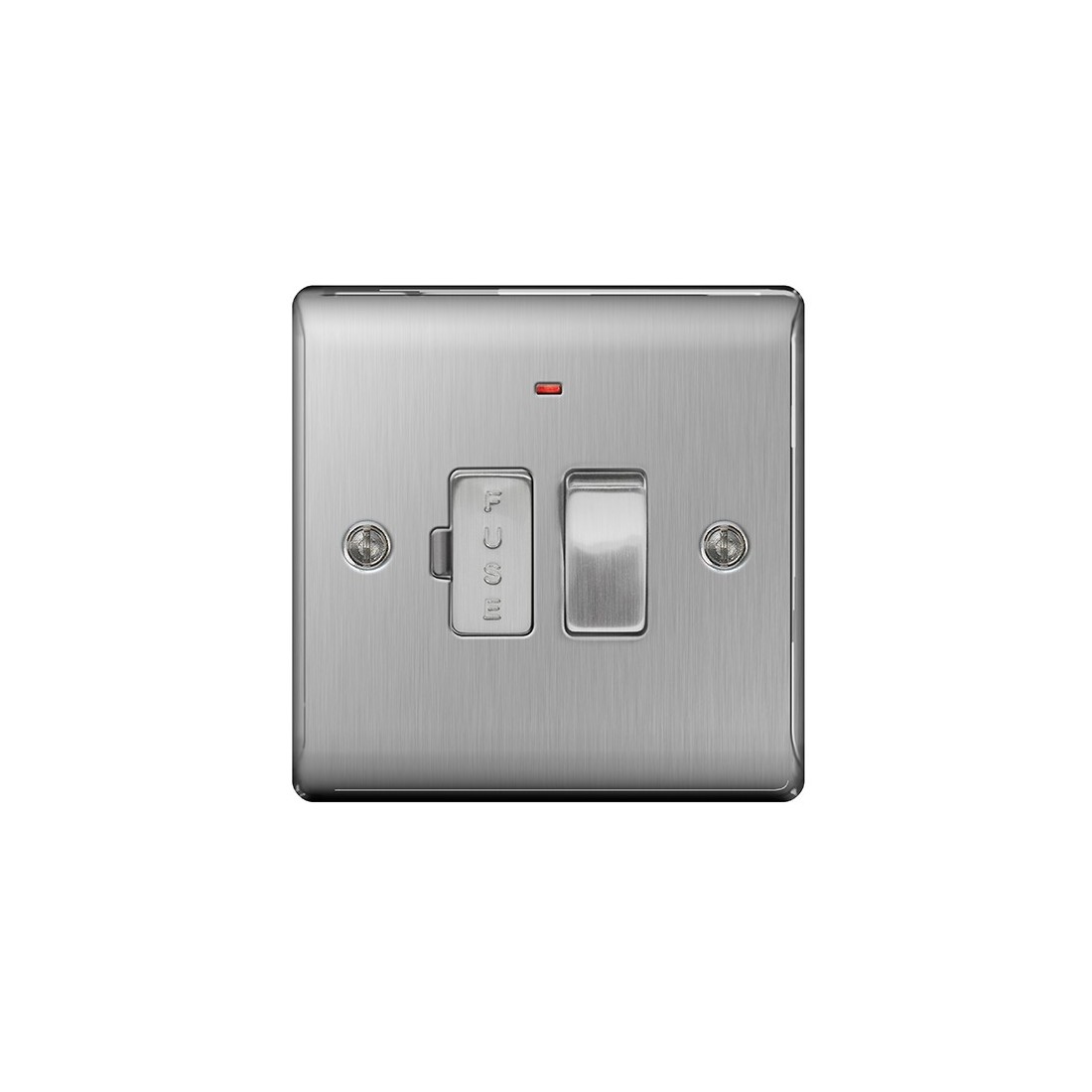

BG Electrical NBS52 Nexus Raised Edge Brushed Steel Screwed Double Pole Switched Fused Connection Unit With Neon 13A
The BG Electrical Nexus Metal NBS52 is a 13A double pole brushed steel decorative switched fused connection unit with neon indicator which compliments any interior décor and is suitable for domestic or commercial installations.
Order code: NBS52
Manufacturer: BG Electrical
GTIN: 5050765018968
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
BG Electrical NBS52 Description
The BG Electrical Nexus Metal NBS52 is a 13A double pole brushed steel decorative switched fused connection unit with neon indicator which compliments any interior décor and is suitable for domestic or commercial installations.
Premium sleek and slim gently curved brushed steel plate which has rounded corners and colour matching fixing screws offering a sleek, low profile appearance – combining quality with stunning good looks.
The lightly lacquered surface to help reduce fingerprint smudges. It has a matching shaped brushed steel rocker which have no visible plastic surround. Fixed integrated plastic gasket protects the metal edges from moisture.
Twin earth as standard and retrofits onto an existing wall box – a minimum mounting depth of 35mm is needed.
Features angled in-line colour coded terminals and backed out captive terminals for ease of installation.
BG Electrical NBS52 Features
- BG Electrical NBS52 brushed steel 13A double pole switched fused connection unit with neon
- Sleek and slim premium metal accessories
- Brushed steel raised faceplate with softly rounded raised edges
- Lightly lacquered surface to reduce fingerprint marks
- Fixed integrated plastic gasket protects the metal edges from moisture
- No visible plastic around matching brushed steel rocker
- Suitable for everyday use in domestic and commercial environments
- Colour coded terminals with backed out captive screws for easy installation
- Double pole switch type
- Neon indicator
- Twin earth terminals as standard
- 13A Rated 250V
- Minimum mounting box depth: 35mm
- Terminal capacity 3 x 2.5mm², 2 x 4.0m² & 1 x 6.0mm²
- Manufactured to BS 1363 part 4
- Dimensions: Width: 86mm | Height: 86mm | Depth: 28.8mm
| Brand : | BG |
| Part No : | NBS52 |
| GTIN : | 5050765018968 |
| Product Range : | Nexus Metal |
| Current Rating : | 13A |
| Voltage Rating : | 230V |
| Standards : | BS 1363 |
| Number of Gangs : | 1 |
| Neon : | Yes |
| Mounting : | Wall |
| Fixing Centres : | 60.3mm |
| Height : | 86mm |
| Width : | 86mm |
| Guarantee : | 25 Years |
| Finish : | Brushed Steel |
| Number of Poles : | Double Pole |
| Fuse Fitted : | Yes |
| Weight : | 0.38000kg |
| Insert Colours : | Brushed Stainless Steel |
