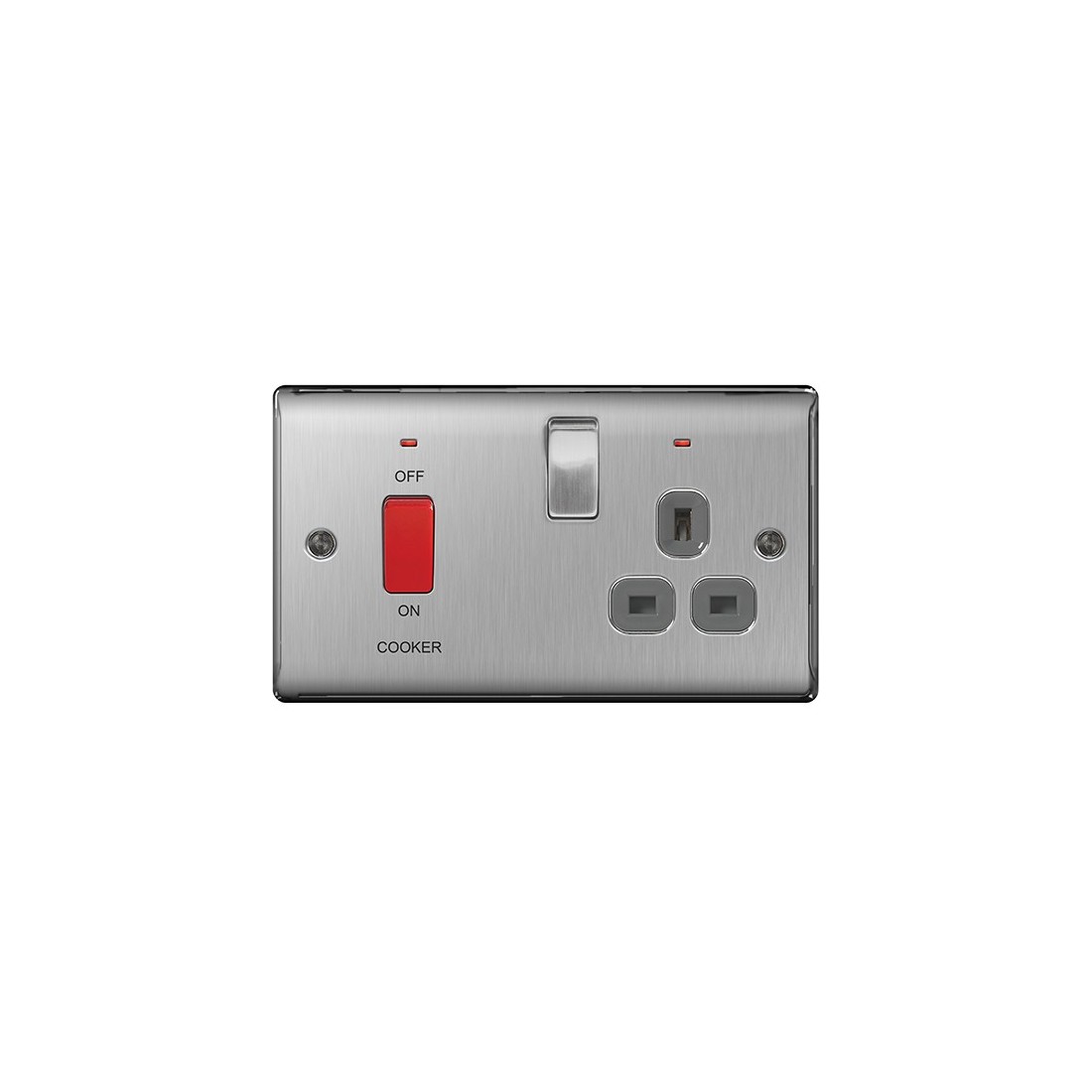

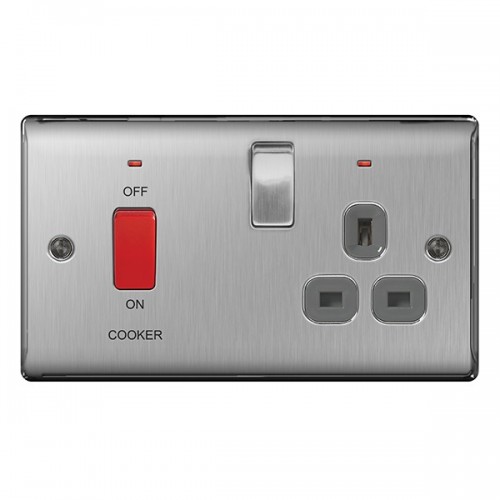

BG Electrical NBS70G Nexus Raised Edge Brushed Steel Screwed Double Pole Cooker Control Unit With Main Isolation Switch + Red Rocker & 13A Switchsocket + Grey Insert & Neons 45A
The BG Electrical Nexus Metal NBS70G is a 45A brushed steel double pole cooker control unit with red mains isolator switch, 13A switched socket with grey insert and neon indicators which complements any interior décor and is suitable for domestic or commercial installations.
Order code: NBS70G
Manufacturer: BG Electrical
GTIN: 5050765019002
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
BG Electrical NBS70G Description
The BG Electrical Nexus Metal NBS70G is a 45A brushed steel double pole cooker control unit with red mains isolator switch, 13A switched socket with grey insert and neon indicators which complements any interior décor and is suitable for domestic or commercial installations.
Premium sleek and slim gently curved brushed steel 2 gang sized plate which has rounded corners and colour matching fixing screws offering a sleek, low profile appearance – combining quality with stunning good looks.
The lightly lacquered surface to help reduce fingerprint smudges. It has a red rocker which has no visible plastic surround. Fixed integrated plastic gasket protects the metal edges from moisture.
Retrofits onto an existing wall box – a minimum mounting depth of 47mm is needed. Features angled in-line colour coded terminals and backed out captive terminals for ease of installation.
BG Electrical NBS70G Features
- BG Electrical NBS70G brushed steel double pole cooker control unit
- Rating: 45A 250V
- Mains isolator switch with red rocker and neon indicator
- 13A switched socket with grey insert, matching brushed steel rocker and neon indicator
- Sleek and slim premium metal accessories
- Brushed steel raised 2 gang sized faceplate with softly rounded raised edges
- Lightly lacquered surface to reduce fingerprint marks
- Fixed integrated plastic gasket protects the metal edges from moisture
- No visible plastic around rockers
- Double pole switch type
- Suitable for everyday use in domestic and commercial environments
- Colour coded terminals with backed out captive screws for easy installation
- Minimum mounting box depth: 47mm
- L & N terminal capacity 4 x 4.0mm², 3 x 6.0mm² & 1 x 16.0mm²
- E terminal capacity 3 x 4.0mm², 2 x 6.0mm² & 1 x 16.0mm²
- Manufactured to BS 4177
- Dimensions: Width: 146.5mm | Height: 86mm | Depth: 31.8mm
