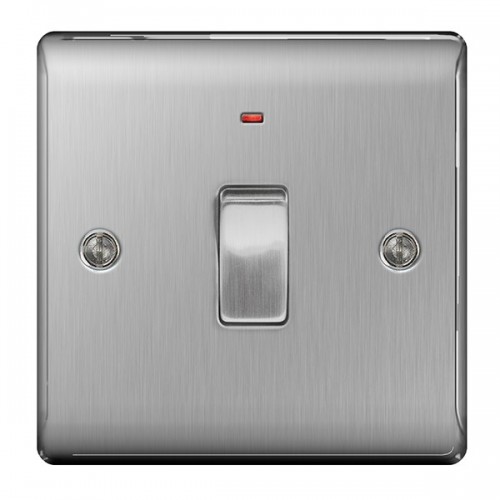

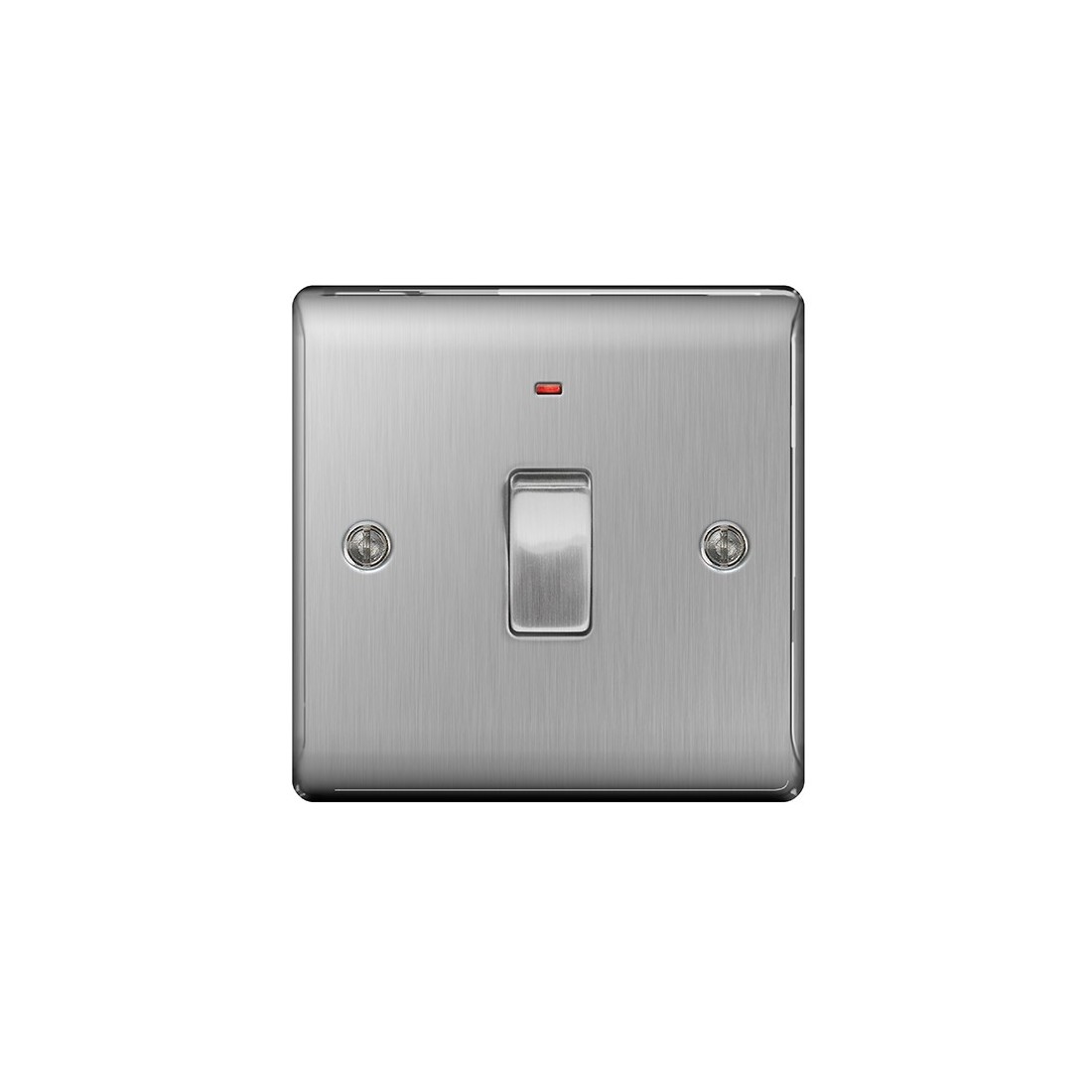

BG Electrical NBS31 Nexus Metal Brushed Steel DP Control Switch 20A
The BG Electrical NBS31 Nexus Brushed Steel 20A Double Pole Control Switch with Neon compliments any interior décor and is suitable for domestic or commercial installations.
Order code: NBS31
Manufacturer: BG Electrical
GTIN: 5050765018944
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
BG Electrical NBS31 Description
The BG Electrical Nexus Metal NBS31 is a 20A brushed steel decorative double pole control switch with neon indicator which compliments any interior décor and is suitable for domestic or commercial installations.
Premium sleek and slim gently curved brushed steel plate which has rounded corners and colour matching fixing screws offering a sleek, low profile appearance – combining quality with stunning good looks.
The lightly lacquered surface to help reduce fingerprint smudges. It has a matching shaped brushed steel rocker which have no visible plastic surround. Fixed integrated plastic gasket protects the metal edges from moisture.
Retrofits onto an existing wall box – a minimum mounting depth of 25mm is needed. Features angled in-line colour coded terminals and backed out captive terminals for ease of installation.
BG Electrical NBS31 Features
- BG Electrical NBS31 brushed steel double pole control switch
- Rating: 20A 250V
- Sleek and slim premium metal accessories
- Brushed steel raised faceplate with softly rounded raised edges
- Lightly lacquered surface to reduce fingerprint marks
- Fixed integrated plastic gasket protects the metal edges from moisture
- No visible plastic around matching brushed steel rocker
- Double pole switch type
- Neon indicator
- Suitable for everyday use in domestic and commercial environments
- Colour coded terminals with backed out captive screws for easy installation
- Minimum mounting box depth: 25mm
- Terminal capacity 3 x 2.5mm², 2 x 4.0m² & 1 x 6.0mm²
- Manufactured to BS EN 60669-1
- Dimensions: Width: 86mm | Height: 86mm | Depth: 25.5mm
| Brand : | BG |
| Part No : | NBS31 |
| GTIN : | 5050765018944 |
| Product Range : | Nexus Metal |
| Current Rating : | 20A |
| Voltage Rating : | 230V |
| Standards : | BS EN 60669 |
| Number of Gangs : | 1 |
| Neon : | Yes |
| Mounting : | Flush |
| Fixing Centres : | 60.3mm |
| Height : | 86mm |
| Mounting Depth : | 25mm |
| Width : | 86mm |
| Guarantee : | 25 Years |
| Finish : | Brushed Steel |
| Number of Poles : | Double Pole |
| Weight : | 0.38000kg |
