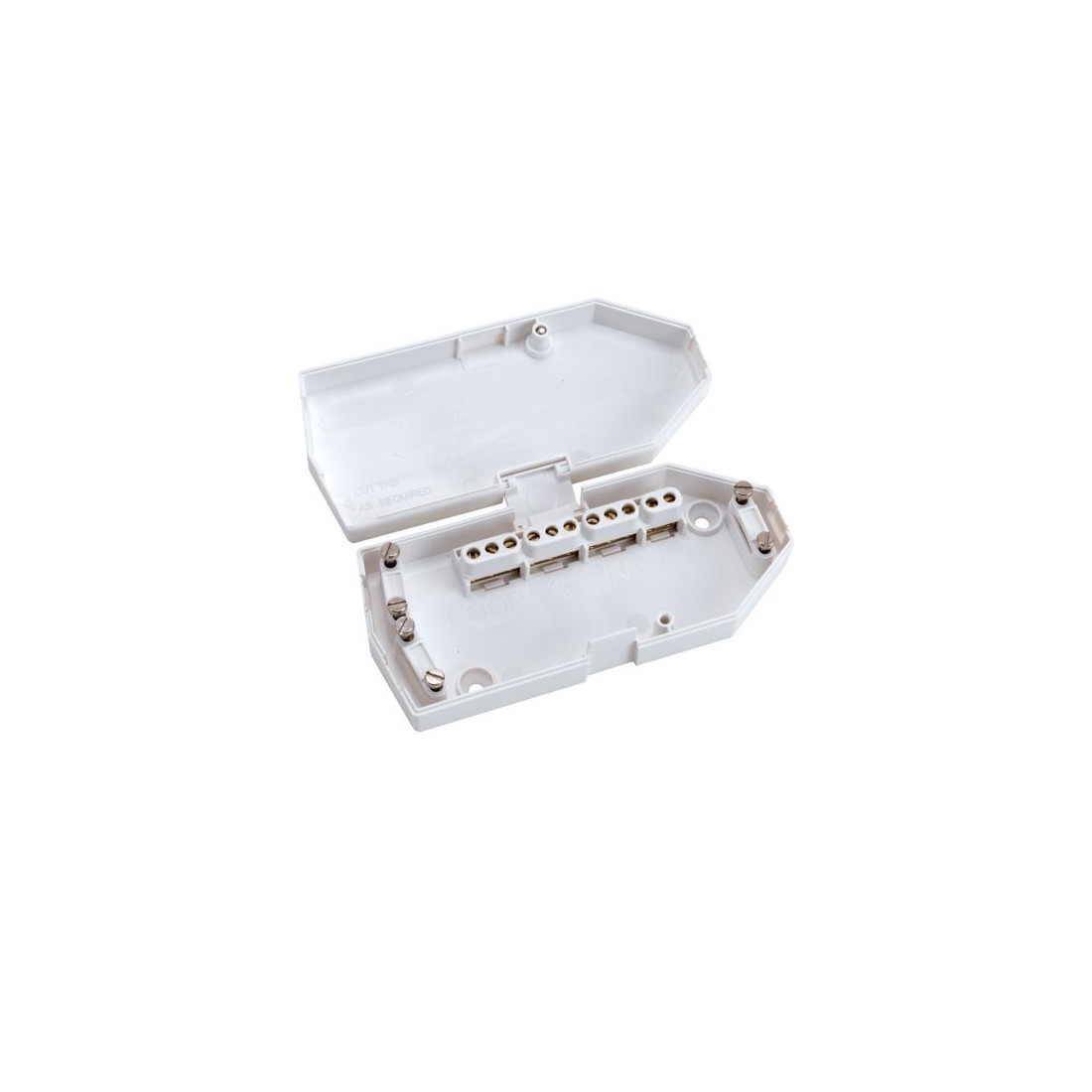

Hager Ashley J501 240V/16A 4 Terminal Downlighter Junction Box

Hager J501 Description

The Hager J501 Ashley white 4 terminal 16A 18th edition low profile downlighter junction box provides a quick and easy means of connecting fixed wiring to the flexible cables of downlight fittings to provide a safer, more effective wiring solution. It Should only be used in scenarios where the junction box can be accessed.

Torpedo shaped it fits through a 58mm diameter hole in the ceiling, whilst providing the option for wall fixing using two back screws. All the cables are securely clamped and they exit from either end of the junction box so there is no strain placed on the terminal connections and no risk of exposed unsheathed conductors. The cable clamps can be reversed to allow either single or double cable entry, which allows up to four flat and one flexible cable to be terminated.

Cabling space is maximised with all the terminals arranged on one side and the upper wall on the lid hinges through 360° for unrestricted access. The lid fits nicely in the hand during termination and cabling. It also wraps around on a hinge to snap shut prior to installation.

Wiring is fast and simple. The three plate terminal style in the box is logical and easy to use and separate terminals for flexible cords and twin and CPC cables help prevent damage to smaller flexible conductors.

The Hager J501 is ideal for installing downlights efficiently and safely.

Hager J501 Features

• Complies with BS EN 60670-22
• 18th Edition Compliant
• Current rating: 16A
• Lighting junction box (downlighter junction box)
• Easy to use
• Fits through a a standard 58mm cut out for a downlighter
• 3 plate terminal style with captive terminal screws
• Separate terminals for flexible cords
• The terminals are on one side to maximise cabling space
• Terminal capacity: 3 x 3 x 1.5mm², 1 x 2 x 1.5mm²
• The clamps secure cables in place
• Complete with incoming and outgoing cable clamps
• Cable clamps prevent strain on terminations & prevent exposed unsheathed conductors
• Cable clamps can be reversed for single or double cable entry
• The lid wraps around to fit snugly in the hand during termination and cabling
• The lid wraps around on a hinge to snap shut prior to installation
• Has rear holes for fixing to the wall if needed
• J501 dimension : Height: 53mm | Width: 122mm | Depth: 27mm
