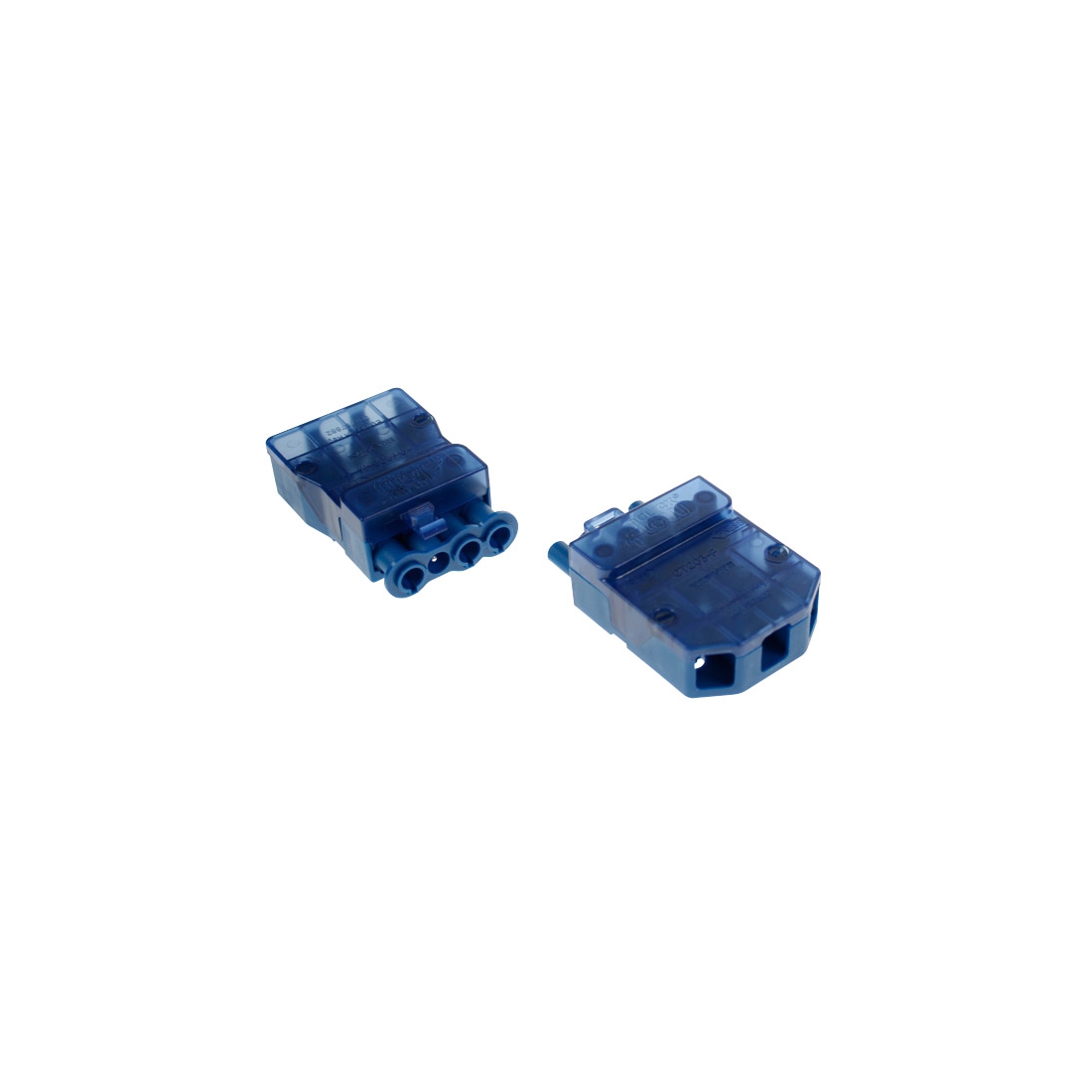

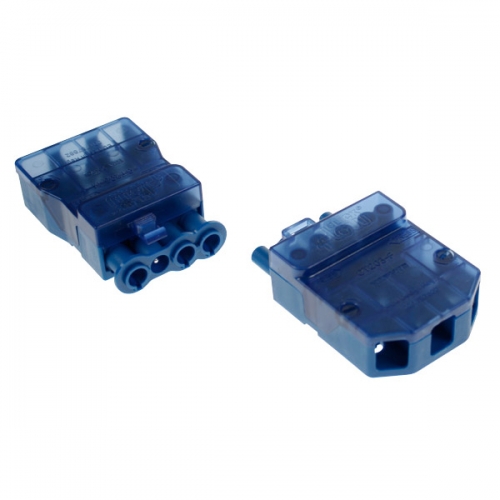

Scolmore CT203C Flow Blue 4 Pole Fast-Fit Push-In Cord Grip Connector 20A 240V

Scolmore CT203C Description

The Scolmore CT203C Clickflow is a 20A blue 4 pole fast-fit push-in cord grip connector primarily designed for lighting circuits with the emphasis around ease of installation.

With increased load handling that has been designed specially to help contractors create more complex lighting installations quickly, easily and safely. With the CT203C there is no requirement to isolate to change a fitting anymore.

Installation is fast and simple, featuring large easy access terminals, 4 cable entry points alongside a unique lock and release plug mechanism. Installations are neater, more organised and faster, ideal for saving time and money on site.

Auxiliary provides the opportunity for a second switched live or permanent feed for use typically with emergency lighting applications

Comprising 2 sections, male and female, fitted with silver plated brass terminals. The female connector has a capacity for 3 x 2.5mm² terminals alongside an additional loop terminal. The male connector can terminate 4 x 1.5mm² cables Disconnecting the male/female plug connection allows for easy maintenance or replacement of light fittings.

The width of the CT203C connector is ideal for recessed downlights as it will easily fit thought the ceiling cut-out hole or indeed through a hole that could be covered by the ceiling cup of many decorative ceiling lights, chandeliers or pendants.

Scolmore CT203C Features

• • 250V 20A Plug in connector
• • 4 pin plug-in connector with auxiliary terminals and loop
• • Large terminals for easy access Raised terminal screws supplied
• • Easy lock and release system
• • Versatile easy connection system
• • Fast fit cable clamps
• • Quick release lockable covers
• • Cable grips for where the installation limits the fixing of the connector
• • Fits through 55mm diameter hole
• • Male : Max 1.5mm² 3 core cable
• • Female : Max 3 x 2.5mm² twin and earth (with additional loop terminal)
