BG Electrical MC531 Metalclad DP Control Switch With Neon & Mounting Box 20A

BG Electrical MC531 Description

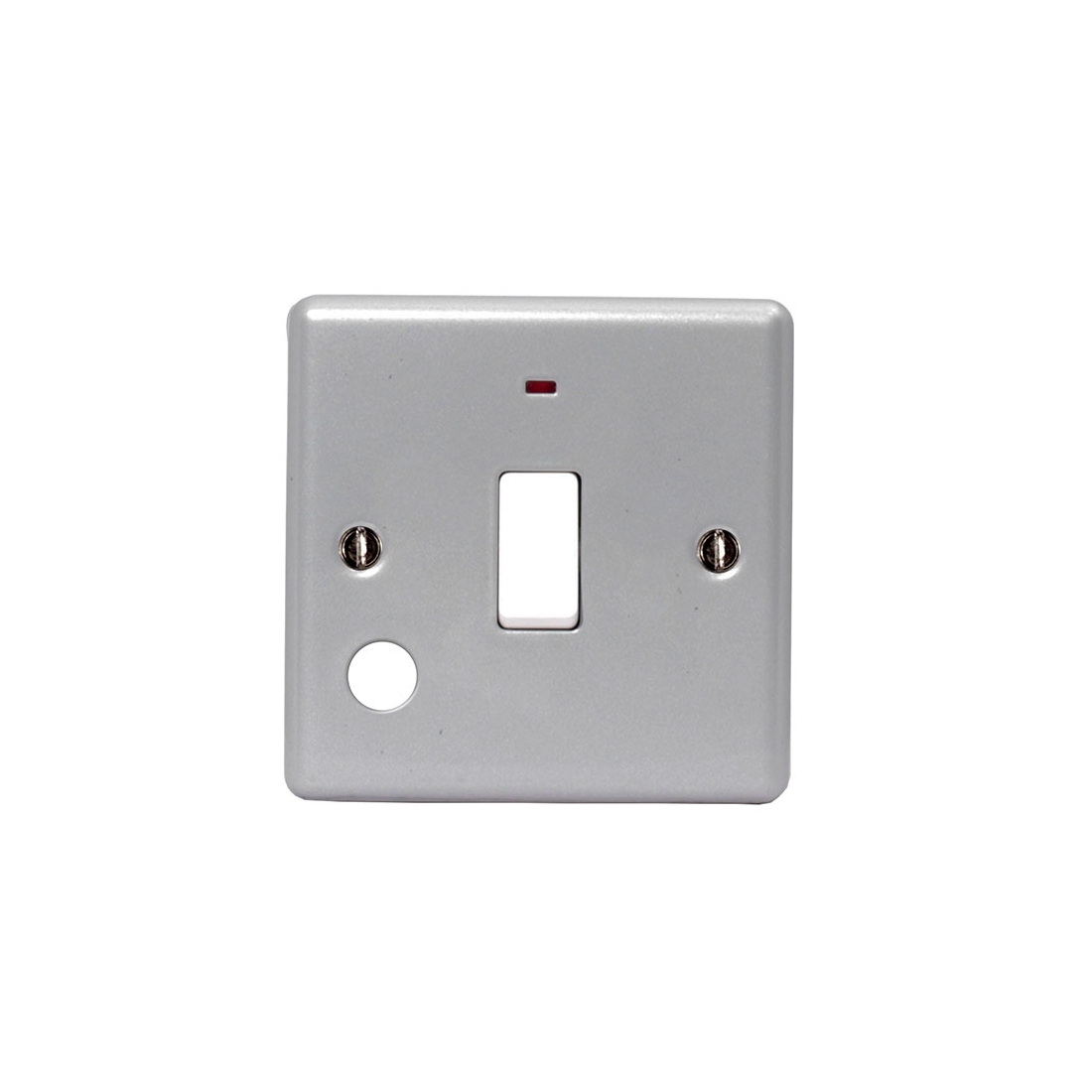

The BG Electrical MC531 is a metalclad 20A double pole control switch with neon indicator that is manufactured in rugged scratch resistant metal, suitable for everyday use in commercial and industrial environments.

Supplied with surface metal back box with multiple knockouts and angled in-line colour coded terminals and backed out captive terminals for ease of installation.

The face plate has a flat profile design with rounded edges, neon indicator and an optional front flex outlet with cord grip. There is no visible plastic around the white pvc rockers.

BG Electrical MC531 Features

• BG Electrical MC531 metalclad double pole control switch
• Rating: 20A 250V
• Durable, powder coated finish that is rugged and scratch resistant
• Flat profile with rounded edges
• No visible plastic around switches
• Double pole switch type
• Neon indicator
• Optional flex outlet with cord grip
• Suitable for everyday use in commercial and industrial environments
• Colour coded terminals with backed out captive screws for easy installation
• Terminal capacity 3 x 2.5mm² 2 x 4.0mm² 1 x 6.0mm²
• Supplied with surface mounting box with multiple knockouts in each side and rear face
• Manufactured to BS EN 60669-1
• Dimensions: Width: 81.5mm | Height: 81.5mm | Depth: 50mm
