Wiska 10111273 COMBI 108 BK/3-221-413 Weatherproof Junction Box

Wiska 10111273 Description

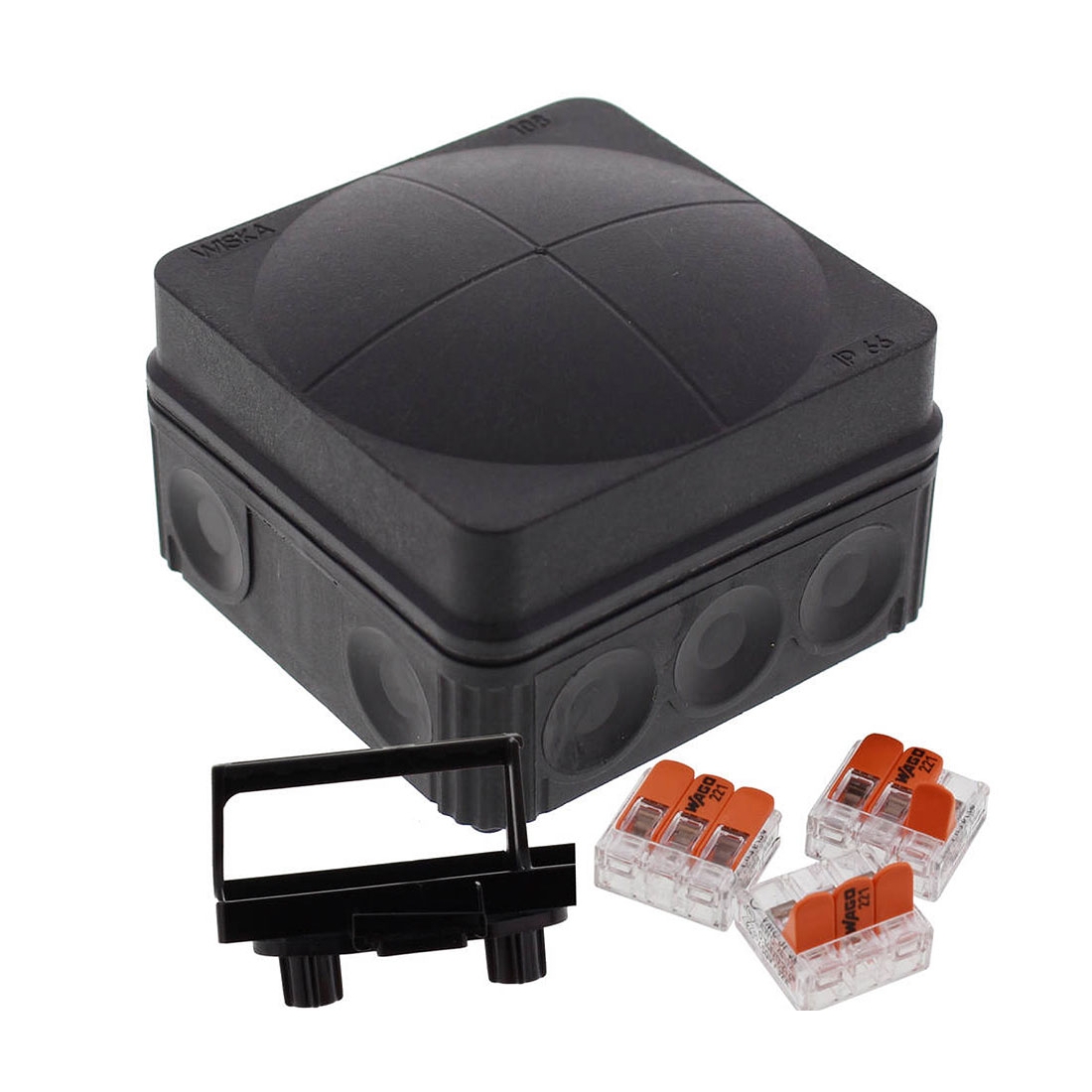

The Wiska 10111273 COMBI® 108 is a black polypropylene weatherproof IP66 rated junction box is supplied with 3 x 221-413 Wago lever connectors.

Ideal for installation both inside and outside even in extreme conditions it offers a shatterproof, impact resistant, flame retardant and halogen free solution that is able to withstand a temperature range of -25°c to 50°c.

The unmistakable domed or bellied lid which distinguishes the COMBI® junction box from the competition, offers an extra 10% internal wiring space. It is suitable for use with cable diameters of a minimum of 3mm² to a maximum of 14mm².

The 10111273 COMBI® 108 features 10 elastic self-sealing puncture-membranes for cable entry, creating a weatherproof seal when the cables are inserted. Quick and easy to install with no further tools required.

Supplied with the renowned market leading 221-413 Wago tool free lever operated connectors that allow solid, stranded and fine-stranded wires to be connected faster and more reliably.

This junction box is finished in black and is rated at 24A 400V. Its dimensions are Length: 76mm | Width: 76mm | Depth: 51mm.

WISKA COMBI Range Overview

The proven WISKA COMBI junction boxes meet the most demanding customer requirements, combining the highest plastics expertise and unique design with ribbed corners for more stability.

They are ideally suited for indoor and outdoor installations thanks to their robust, shatterproof, weather, ozone and UV-resistant housing

IP66 / 67 weatherproof protection against moisture and dust. Use two component Wiska gel to achieve IP68 protection.

Simple and time-saving assembly that delivers 30% saving on labour thanks to the combined threaded and membrane entries for installation without tools or locknuts.

Their unique bellied covers offer 10% more internal installation space for easier installation. Also includes fast mounting brackets and mounting plates for easy assembly (certain ranges only).

The rust-free captive, quick-release fasteners allow the Combi box to be closed and sealed with a quarter turn.

Available empty or with WAGO 221 3-lever connector and unique connector holder.
