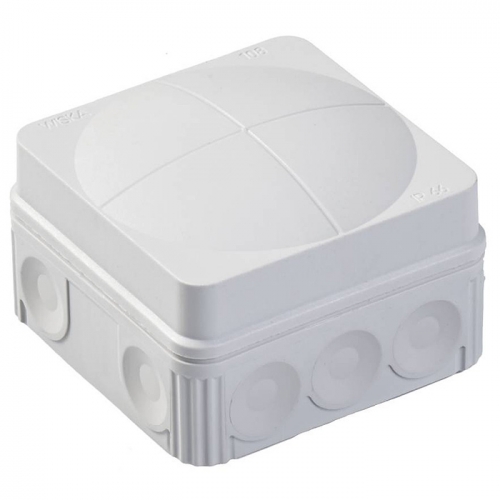

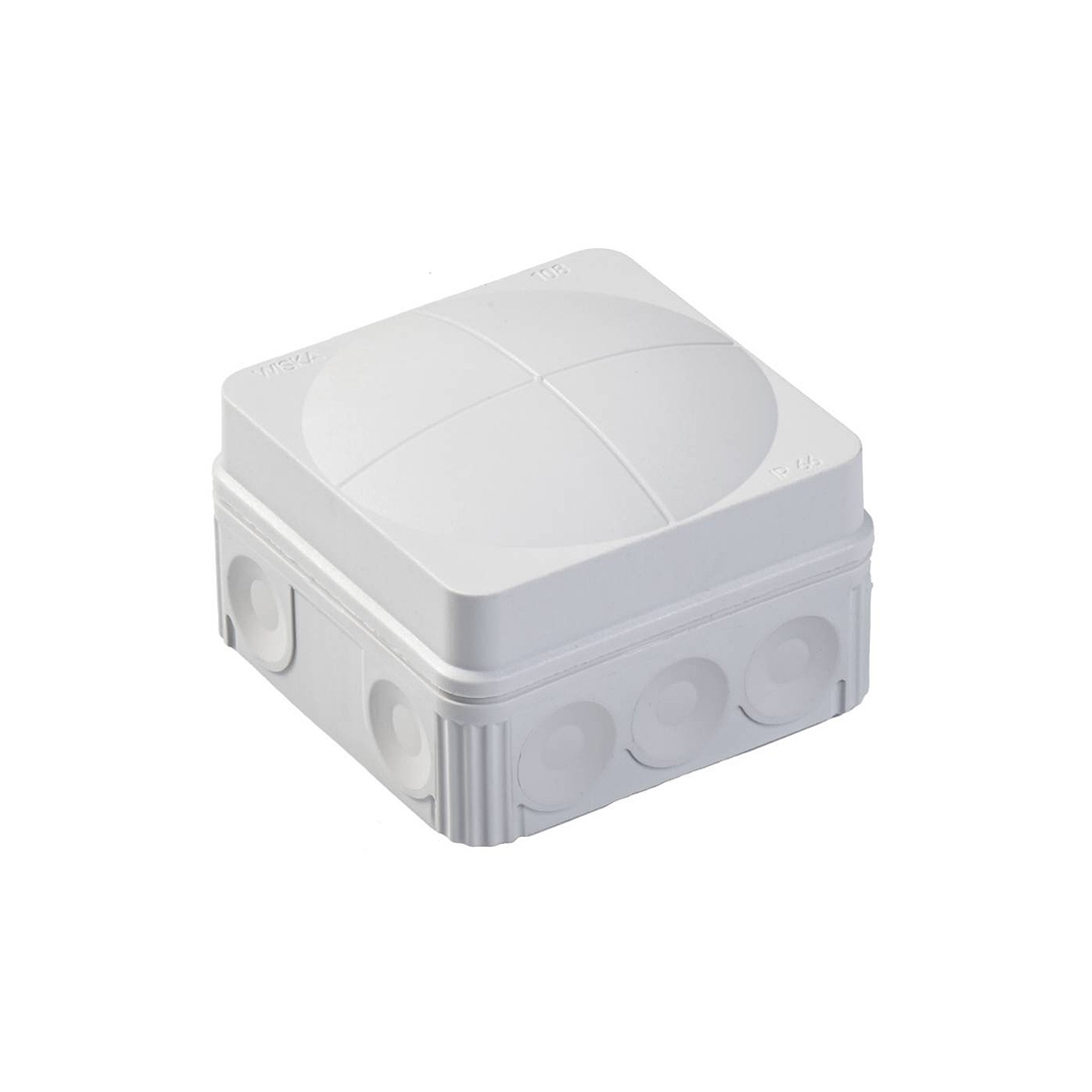

Wiska 10060522 COMBI® 108 Grey Polypropylene Weatherproof Junction Box With 10 Self Sealing Cable Inlets Without Terminals IP66 400V L:76mm | W:76mm | D:51mm
The Wiska 10060522 COMBI® 108 grey polypropylene weatherproof, shatterproof, impact resistant, flame retardant and halogen free IP66 rated junction box is supplied without terminals.
Order code: 10060522
Manufacturer: Wiska
GTIN: 4007685605311
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Wiska 10060522 Description
The Wiska 10060522 COMBI® 108 grey polypropylene weatherproof, shatterproof, impact resistant, flame retardant and halogen free IP66 rated junction box is supplied without terminals.
Ideal for installation both inside and outside even in extreme conditions, being able to withstand a temperature range of -25°c to 50°c. It is suitable for use with cable diameters of a minimum of 3mm² to a maximum of 14mm².
The unmistakable domed or bellied lid which distinguishes the COMBI® junction box from the competition, offers an extra 10% internal wiring space.
The 10060522 COMBI® 108 features 10 elastic self-sealing puncture-membranes for cable entry, creating a weatherproof seal when the cables are inserted. Quick and easy to install with no further tools required.
This junction box is finished in grey and is rated at 24A 400V. Its dimensions are Length: 76mm | Width: 76mm | Depth: 51mm.
Wiska 10060522 Features
Range Overview
The proven WISKA COMBI junction boxes meet the most demanding customer requirements, combining the highest plastics expertise and unique design with ribbed corners for more stability.
They are ideally suited for indoor and outdoor installations thanks to their robust, shatterproof, weather, ozone and UV-resistant housing
IP66 / 67 weatherproof protection against moisture and dust. Use two component Wiska gel to achieve IP68 protection.
Simple and time-saving assembly that delivers 30% saving on labour thanks to the combined threaded and membrane entries for installation without tools or locknuts.
Their unique bellied covers offer 10% more internal installation space for easier installation. Also includes fast mounting brackets and mounting plates for easy assembly (certain ranges only).
The rust-free captive, quick-release fasteners allow the Combi box to be closed and sealed with a quarter turn.
Available empty or with WAGO 221 3-lever connector and unique connector holder.
- Protection class to EN 60 529: IP 66
- Flame protection: glow wire test 750° C acc. to EN 60695-2-11
- Temperature range: -25° C up to 50° C, intermittent up to approx. 75°C
- Cable Diameter: 3mm² (Min) to 14mm² (Max)
- Current: 24A
- Voltage: 400V
- Material: Polypropylene, reinforced glass fibre; sealing: thermoplastic elastomer
- Fixing: With mounting clip for snap-on fixing or 2 internal openings outside of the sealing area
- Equipment: 10 elastic self-sealing membranes for cable entry without mechanical devices at the side and 2 in the base
You may need Adobe Reader to view some of our downloads.
If you do not already have it installed please click the icon above to install it.
| Brand : | Wiska |
| Part No : | 10060522 |
| GTIN : | 4007685605311 |
| Colour : | Grey |
| Product Range : | Combi 108 |
| Voltage Rating : | 400V |
| IP Rating : | IP66 |
| Type : | Junction Box |
| Dimensions : | (L)76 mm x (W)76 mm x (D)51 mm |
| Mounting : | Surface |
| Height : | 76mm |
| Width : | 76mm |
| Cable Size Range : | 3 - 14mm² |
| Guarantee : | 1 Year |
| Material : | Polypropylene |
| Length : | 76mm |
| Operating Temperature Range : | -30 °C - 100 °C |
| Minimum Operating Temperature : | -30°C |
| Number of Knockouts : | 10 |
