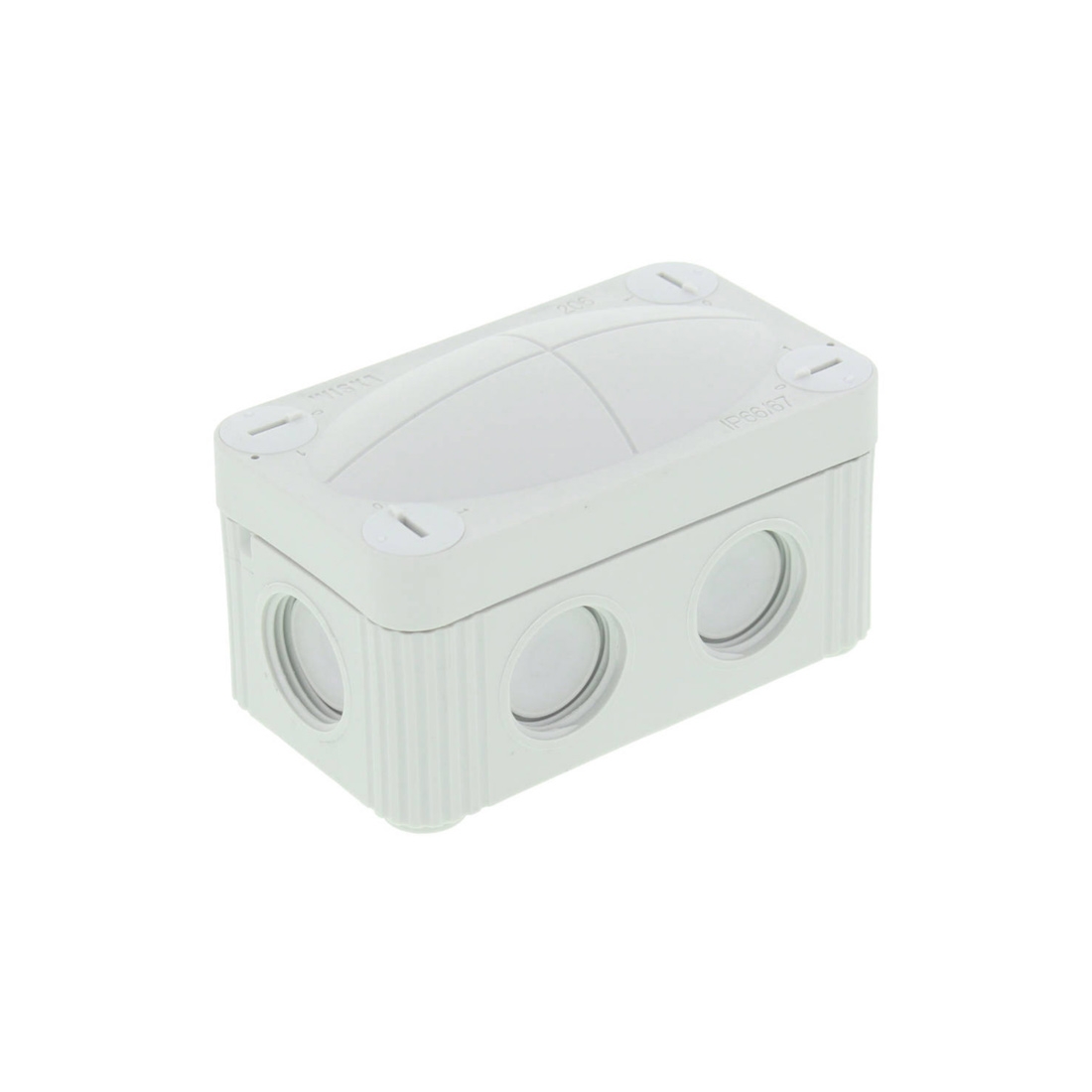

Wiska 10109569 COMBI® 206 Grey Polypropylene Weatherproof Junction Box With 6 Self Sealing Cable Inlets Without Terminals IP66/IP67 400V L:85mm | W:49mm | D:51mm
The Wiska 10109569 COMBI® 206 grey polypropylene weatherproof, shatterproof, impact resistant, flame retardant and halogen free IP66/IP67 rated junction box is supplied without terminals.
within 3-4 working days
Wiska 10109569 Description
The Wiska 10109569 COMBI® 206 grey polypropylene weatherproof, shatterproof, impact resistant, flame retardant and halogen free IP66/IP67 rated junction box is supplied without terminals.
The smallest member of the COMBI® junction box range at approximately half the size of the popular COMBI® 308 model. This clever junction box is perfect for outside applications including video-surveillance systems and LED lighting where space is at a premium.
Ideal for installation both inside and outside even in extreme conditions, being able to withstand a temperature range of -30°C up to 100°C. It is suitable for use with cable diameters of a minimum of 3mm² to a maximum of 14mm².
The unmistakable domed or bellied lid which distinguishes the COMBI® junction box from the competition, offers an extra 10% internal wiring space.
The 10109569 COMBI® 206 has an integrated thread in which cable glands can be directly mounted into - without locknuts. It features 6 x M20 elastic self-sealing puncture-membranes for cable entry, creating a weatherproof seal when the cables are inserted. Quick and easy to install with no further tools required.
This junction box is finished in grey and is rated at 32A 400V. Its dimensions are Length: 85mm | Width: 49mm | Depth: 51mm.
Wiska 10109569 Features
Range Overview
The proven WISKA COMBI junction boxes meet the most demanding customer requirements, combining the highest plastics expertise and unique design with ribbed corners for more stability.
They are ideally suited for indoor and outdoor installations thanks to their robust, shatterproof, weather, ozone and UV-resistant housing
IP66 / 67 weatherproof protection against moisture and dust. Use two component Wiska gel to achieve IP68 protection.
Simple and time-saving assembly that delivers 30% saving on labour thanks to the combined threaded and membrane entries for installation without tools or locknuts.
Their unique bellied covers offer 10% more internal installation space for easier installation. Also includes fast mounting brackets and mounting plates for easy assembly (certain ranges only).
The rust-free captive, quick-release fasteners allow the Combi box to be closed and sealed with a quarter turn.
Available empty or with WAGO 221 3-lever connector and unique connector holder.
- Protection class to EN 60 529: IP66 / IP67
- Flame protection: glow wire test 750°C acc. to EN 60695-2-11
- Temperature range: -30°C up to 100°C
- Installation temperature: -5°C - 60°C
- Cable Diameter: 3mm² (Min) to 14mm² (Max)
- Current Rating: 32A
- Voltage Rating: 400V
- Material: Polypropylene, reinforced glass fibre; sealing: thermoplastic elastomer
- Fixing: With 4 internal openings outside of the sealing area
- Equipment:
6 M20 threaded membrane entries
2 membrane cable entries through rear
4 captive cover screws
Brand : | Wiska |
Part No : | 10109569 |
Colour : | Grey |
Product Range : | COMBI 206 |
Type : | Combi Junction Box IP66/67 |
Dimensions : | (L)85 mm x (W)49 mm x (D)51 mm |
Width : | 49mm |
Guarantee : | 1 Year |
Depth : | 51mm |
Material : | Polypropylene |
Length : | 85mm |
