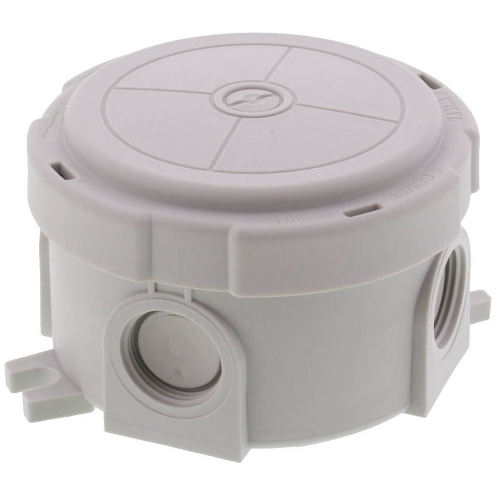

Wiska 10110629 COMBI® 304 Grey Polypropylene Round Weatherproof Junction Box With 4 Self Sealing Cable Inlets Without Terminals IP66/IP67 400V DiaØ:82mm | D:57mm
The Wiska 10110629 COMBI® 304 grey circular polypropylene weatherproof, shatterproof, impact resistant, flame retardant and halogen free IP66/IP67 rated junction box is supplied without terminals.
Order code: 10110629
Manufacturer: Wiska
GTIN: 4007686227925
Notify me by email when product is available
Normally despatched
within 3-4 working days
within 3-4 working days
Wiska 10110629 Description
The latest COMBI 304® range are the first circular COMBI® junction boxes from WISKA.
The Wiska 10110629 COMBI® 304 grey circular polypropylene weatherproof, shatterproof, impact resistant, flame retardant and halogen free IP66/IP67 rated junction box is supplied without terminals.
Ideal for installation both inside and outside even in extreme conditions, being able to withstand a temperature range of -30°C to 100°c. It is suitable for use with cable diameters of a minimum of 3mm² to a maximum of 12mm².
Features a flat lid with bayonet cap that is screwed by a quarter turn. The unique hook closing mechanism prevents unauthorised access. A tool is required to gain access once closed.
The 10110629 COMBI® 304 has an integrated thread in which cable glands can be directly mounted into - without locknuts. It features 4 x M20 threaded elastic membrane entries for cable entry, creating a weatherproof seal when the cables are inserted. Quick and easy to install with no further tools required.
This junction box is finished in grey and is rated at 32A 400V. Its dimensions are Diameter: 82mm | Depth: 57mm. It is mounted using external lugs.
Wiska 10110629 Features
Range Overview
The proven WISKA COMBI junction boxes meet the most demanding customer requirements, combining the highest plastics expertise and unique design with ribbed corners for more stability.
They are ideally suited for indoor and outdoor installations thanks to their robust, shatterproof, weather, ozone and UV-resistant housing
IP66 / 67 weatherproof protection against moisture and dust. Use two component Wiska gel to achieve IP68 protection.
Simple and time-saving assembly that delivers 30% saving on labour thanks to the combined threaded and membrane entries for installation without tools or locknuts.
Their unique bellied covers offer 10% more internal installation space for easier installation. Also includes fast mounting brackets and mounting plates for easy assembly (certain ranges only).
The rust-free captive, quick-release fasteners allow the Combi box to be closed and sealed with a quarter turn.
Available empty or with WAGO 221 3-lever connector and unique connector holder.
- Protection class to EN 60 529: IP66 using the membrane entry / IP67 using the threaded entry together with cable gland
- Flame protection: glow wire test 750° C acc. to EN 60695-2-11
- Temperature range: -30°C up to 100°C
- Installation temperature: -5°C - 60°C
- Cable Diameter: 3mm² (Min) to 12mm² (Max)
- Current Rating: 32A
- Voltage Rating: 400V
- Material: Polypropylene, reinforced glass fibre; sealing: thermoplastic elastomer
- Fixing: 2 external mounting feet
- Equipment: 4 M20 threaded membrane entries
You may need Adobe Reader to view some of our downloads.
If you do not already have it installed please click the icon above to install it.
| Brand : | Wiska |
| Part No : | 10110629 |
| Colour : | Grey |
| Product Range : | Combi 304 |
| Voltage Rating : | 400V |
| IP Rating : | IP66/IP67 |
| Type : | Junction Box |
| Dimensions : | Ø 82 x 57mm |
| Mounting : | Surface |
| Height : | 57mm |
| Width : | 82mm |
| Cable Size Range : | 3 - 12mm² |
| Diameter : | 90mm |
| Guarantee : | 1 Year |
| Material : | Polypropylene |
| Operating Temperature Range : | -30 °C - 100 °C |
| Minimum Operating Temperature : | -30°C |
| Number of Knockouts : | 4 |
