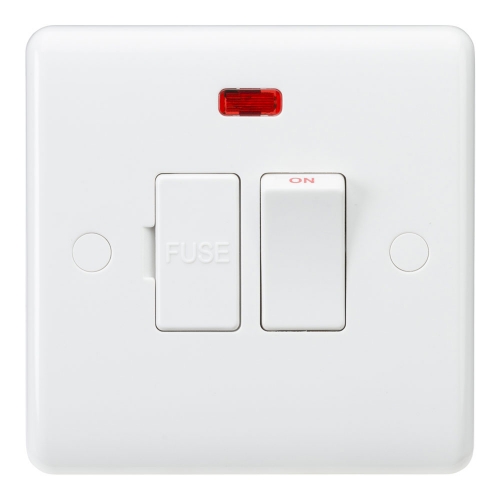

Knightsbridge CU6300N White Curved Edge 13A Switched Fused Connection Unit With Neon

Knightsbridge CU6300N Description

The Knightsbridge CU6300N is a double pole 13A switched fused connection (spur) unit with neon that forms part of the white moulded curved edge range of wiring accessories.

Designed with a gently contoured 7mm plate with rounded edges with anti-microbial properties that suits a wide variety of settings. Includes screw cap covers for a neat final appearance with no visible screws.

Switched fused spur units or connection units are an electrical switch with a built in fuse, designed for appliances that do not have or require a fused plug top. Fused spur units are also used for high powered electrical equipment with heavy continuous load, so that the appliance can be isolated by a single cable from a ring main for safety and maintenance purposes.

Complies with the latest British Standards delivering a quality product that belies the selling price.

Knightsbridge CU6300N Features

• Knightsbridge CU6300N switched fused connection unit with neon
• White moulded - manufactured from urea
• Gently contoured 7mm plate with rounded edges
• Double pole switching
• IP20 rated
• Rating: 13A 230V 50Hz
• Terminal capacity: 3 x 2.5mm² or 2 x 4.0mm²
• Earth terminal: Yes
• Min. mounting box depth: 25mm
• Matching screw cap covers
• Standards: BS 1363
• Dimensions: Height: 86mm | Width: 86mm | Depth: 7mm
