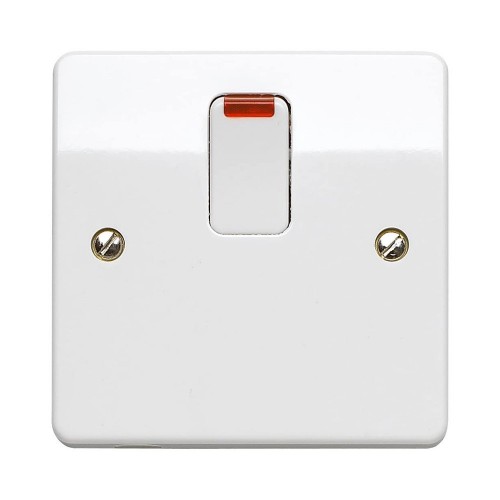

MK Electric K5423WHI Logic Plus White Moulded DP Control Switch With Neon & Base Flex Outlet 20A

MK Electric K5423WHI Description

The MK Electric Logic Plus K5423WHI is a white moulded 20A double pole control switch with neon and base flex outlet that is quick and easy to install in both domestic and commercial installations.

It is designed for the connection of refrigerators, water heaters, central heating boilers and other fixed appliances. Not recommended for switching large banks of PCs.

The double pole switch offers extra electrical safety with a neutral "make first", "break last" feature and is supplied with earth terminal.

The base flex outlet securely grips cord without the need for screws, and blanking plugs are supplied where the bottom outlet is not required.

Has a raised edge slim profile faceplate with visible screws and requires a minimum 35mm depth mounting boxes (flush and surface mounting).

Designed to perfectly complement modern interiors, offering an unobtrusive and sophisticated look totally in keeping with today's design.

Conforms to BS EN 60669-1: 2000.

MK Electric K5423WHI Features

• MK Electric K5423WHI double pole control switch 20A
• Finish: white moulded
• Double pole switching
• Neon indicator
• Base flex outlet securely grips cord without the need for screws
• Blanking plugs are supplied where the bottom outlet is not required
• IP Rating: IP2XD
• Stylish modern contoured design
• Scratch resistant surface
• Rating: 20A 240V
• Quick and easy to install
• Additional safety from neutral "make first", "break last" feature
• Top access, angled terminals make wiring easier and quicker
• All supply and load cables can be cut and stripped to same length
• Integral wired indicators save installation time
• Backed out and captive terminal screws
• Base entry front plates are offer extra depth at 12.5mm deep
• Push-fit cord grips, for safer, quicker installation
• Printed terminal markings on grey rear mouldings for clearer identification
• Requires minimum 35mm depth mounting boxes
• Terminal Capacity: 2 x 6mm² 3 x 4.0mm² 3 x 2.5mm²
• 20 year guarantee gives total peace of mind (10 years Electronic Devices)
• Conforms to Standards: BS EN 60669-1: 2000
• Dimensions: Width: 86mm | Height: 86mm | Fixing Centres: 60.3mm

MK Electric Logic Plus Range Overview

The MK Electric Logic Plus range offers unrivalled quality and reliability and provides the largest selection of wiring devices in any single range.

Smoothly formed front plates, rounded rocker switches and chamfered radius corners as standard.

A range of innovative design features to ensure a quick and easy installation come as standard across the range, including in-line terminals, funnel entrances to terminals, backed out and captive screws and clear terminal markings.

Manufactured from high grade thermoset material with antimicrobial properties making the range resistant to MRSA, E.Coli, Salmonella and Klebsiella Pneumoniae.

Technically, they exceed British Standard requirements with patented features that make these products the most advanced and safest available.
