MK Electric K4872WHI Logic Plus White Moulded 2 Gang 2 Way Plateswitch 10A

MK Electric K4872WHI Description

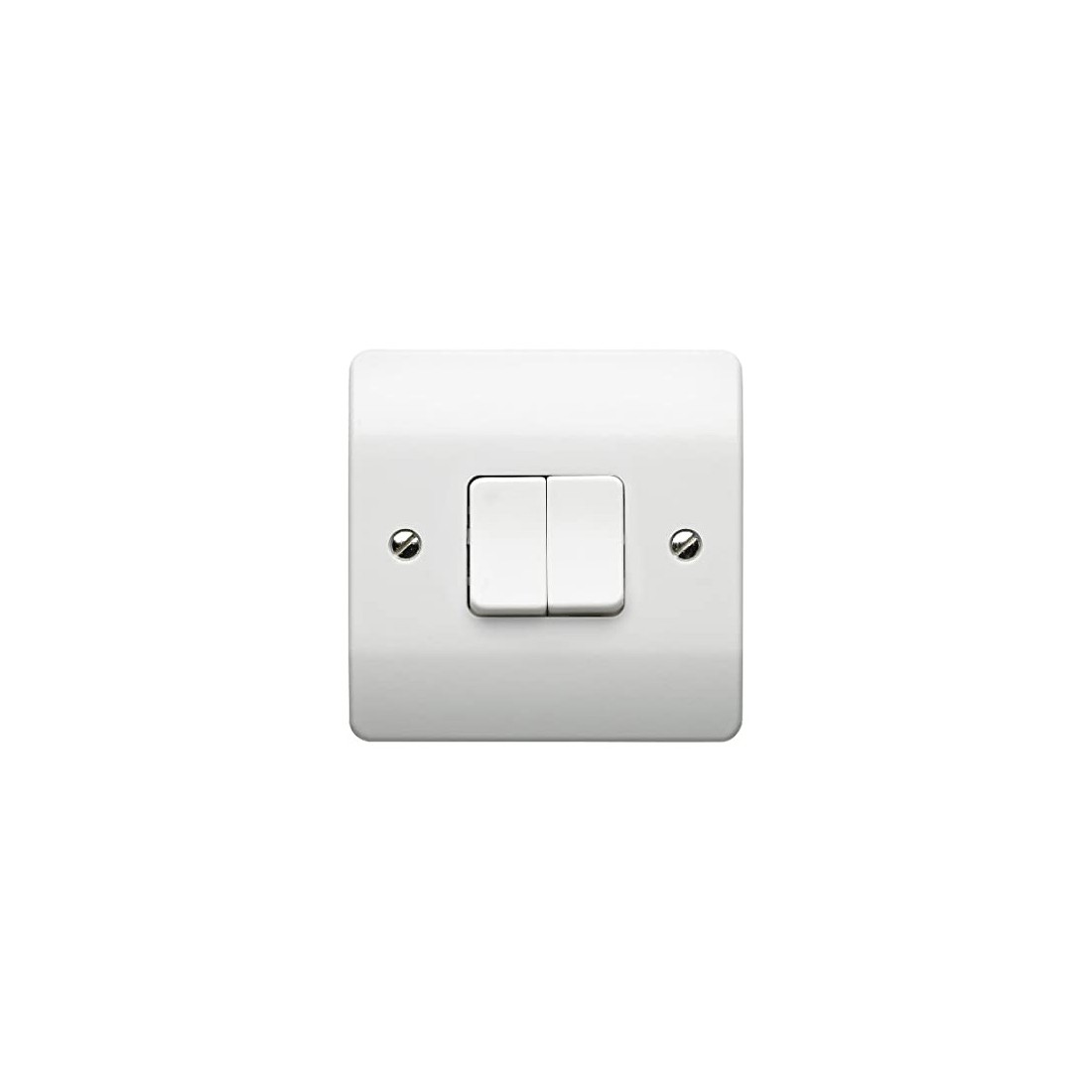

The MK Electric Logic Plus K4872WHI is a white moulded 2 gang 2 way 10A light plate switch that is quick and easy to install in both domestic and commercial installations.

Has a raised edge slim profile faceplate with visible screws and requires a minimum 16mm depth mounting boxes (flush and surface mounting).

It does not have to be de-rated when used with fluorescent or inductive loads.

Designed to perfectly complement modern interiors, offering an unobtrusive and sophisticated look totally in keeping with today's design.

Conforms to BS EN 60669-1: 2000 | BS 5733: 1995

MK Electric K4872WHI Features

• MK Electric K4872WHI 2 gang 2 way light plate switch 10A
• Finish: white moulded
• IP Rating: IP2XD
• Does Not Have to be de-rated when using fluorescent or inductive loads
• Positive switch action
• Stylish modern contoured design
• Scratch resistant surface
• Rating: 10A 240V
• Quick and easy to install
• Side access
• Top access, angled terminals make wiring easier and quicker
• Secure cable and flexible cord connection
• Integral wired indicators
• Backed out and captive terminal screws
• Printed terminal markings on grey rear mouldings for clearer identification
• Requires minimum 16mm depth mounting boxes
• Terminal Capacity: 4 x 1mm² 4 x 1.5mm² 3 x 2.5mm² 2 x 4mm² 1 x 6mm²
• 20 year guarantee gives total peace of mind (10 years Electronic Devices)
• Conforms to BS EN 60669-1: 2000 | BS 5733: 1995
• Dimensions: Width: 86mm | Height: 86mm | Fixing Centres: 60.3mm

MK Electric Logic Plus Range Overview

The MK Electric Logic Plus range offers unrivalled quality and reliability and provides the largest selection of wiring devices in any single range.

Smoothly formed front plates, rounded rocker switches and chamfered radius corners as standard.

A range of innovative design features to ensure a quick and easy installation come as standard across the range, including in-line terminals, funnel entrances to terminals, backed out and captive screws and clear terminal markings.

Manufactured from high grade thermoset material with antimicrobial properties making the range resistant to MRSA, E.Coli, Salmonella and Klebsiella Pneumoniae.

Technically, they exceed British Standard requirements with patented features that make these products the most advanced and safest available.
