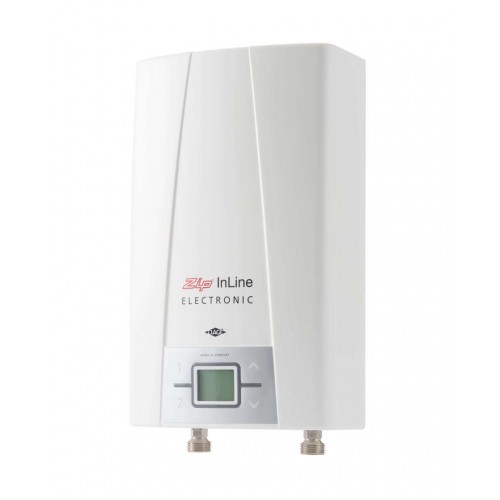

Zip CEX-O White Plastic Instantaneous In Line Oversink Water Heater 6.6kW - 8.8kW 230V
The Zip CEX-O is an electronically controlled instantaneous oversink electric water heaters for supplying single or multiple outlets. It provides a constant supply of instant hot water at exactly the temperature selected with zero standing heat loss as there is no stored water. It represent the most energy efficient way of directly heating water electrically. Suitable for use with pre-heated water from solar heating systems.
Order code: CEX-O
Manufacturer: Zip Water Heaters
GTIN: 5036764424146
Notify me by email when product is available
Normally despatched
within 5-7 working days
within 5-7 working days
Zip Water Heaters CEX-O Description
Zip CEX-O Inline Instantaneous Over Sink Water Heater provides instant hot water is the most energy efficient way of heating water electrically to single or multiple outlets. It provides a constant supply of instant hot water at exactly the temperature selected with zero standing heat loss as there is no stored water.
- Flow rate up to 5 litres/minute to supply one or more outlets
- Power rating can be set on installation to 6.6kW or 8.8kW @230V
- Bare wire elements for fast heat-up
- Zero standing heat loss
- Provides a constant supply of hot water
- Heating power electronically adjusted to compensate for variable inlet pressure and temperature
- Suitable for use with pre-heated water from renewable heat source – maximum inlet temperature of 70°C
- Outlet temperature user adjustable between 30°C and 55°C with two programmable settings
- Optional remote control handset available – order code ZL016
Zip Water Heaters CEX-O Features
Heating System - Bare-wire system.
IP Rating - Oversink IP25 / Undersink IP24 Suitable for Zone 1.
Approvals - WRAS, VDE & CE endorsed.
Warranty - 1 year on site parts and labour.
Location
The appliance must be installed in a frost free environment.
In order to minimise thermal losses the distance between the appliance and the outlet fitting should be as short as possible.
CEX-U enables installation under-sink, close to the outlet fitting, keeping thermal losses to a minimum.
Plumbing
The appliance is intended for connection to a mains potable water supply.• The specific water resistance of the supply must not fall below the minimum specified on the rating plate.
Minimum flow rate 2 litres/min.
Should be installed by a suitable qualified installer of electric instantaneous water heaters.
Electrical
The appliance must be earthed and connected to the supply by means of permanent wiring through an isolation switch having a contact separation of at least 3mm on all poles and protected by a suitably rated circuit breaker.
The cross sectional area of the connection cable must be in accordance with the poser rating of the appliance.
The installation must be in accordance with current IEE regulations.
