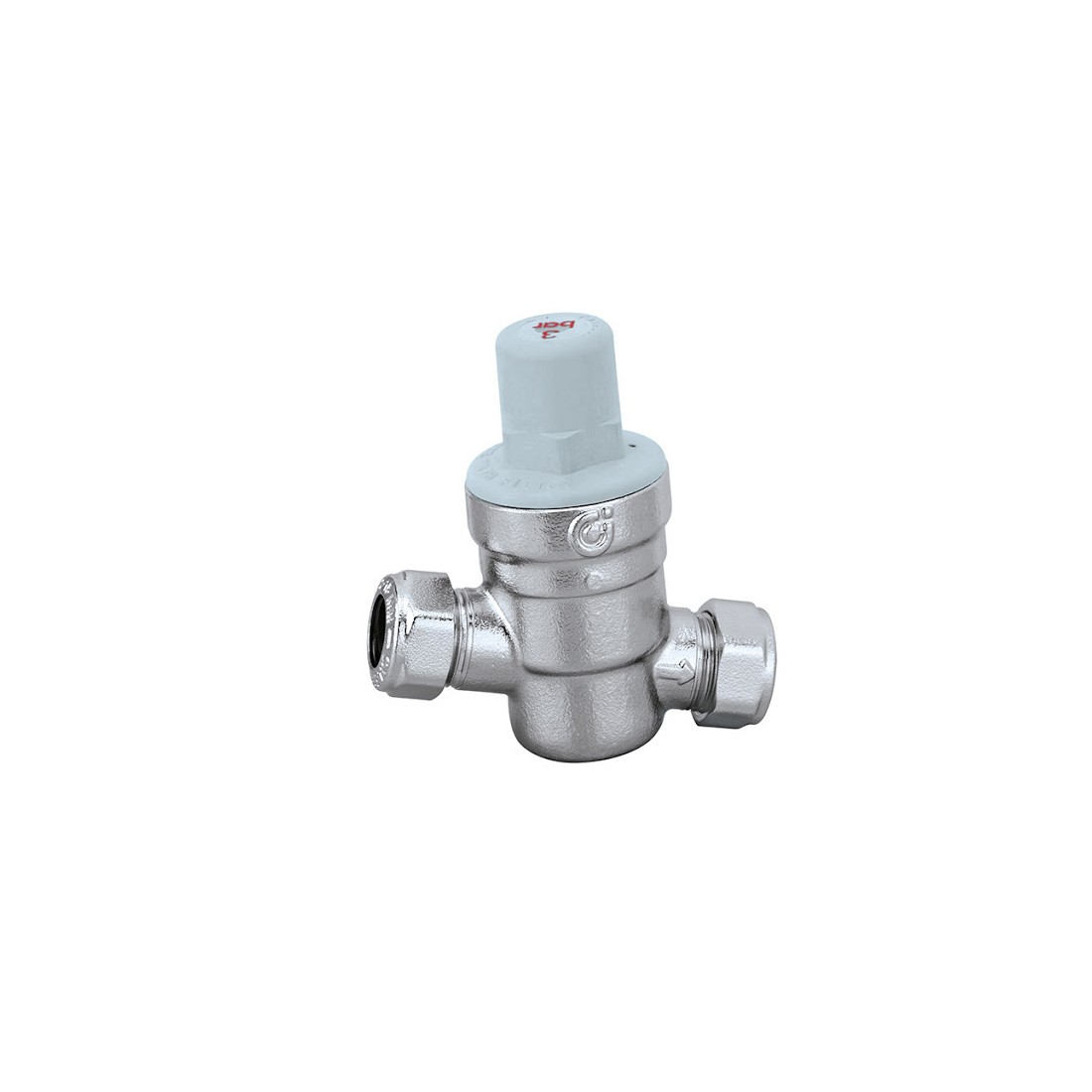

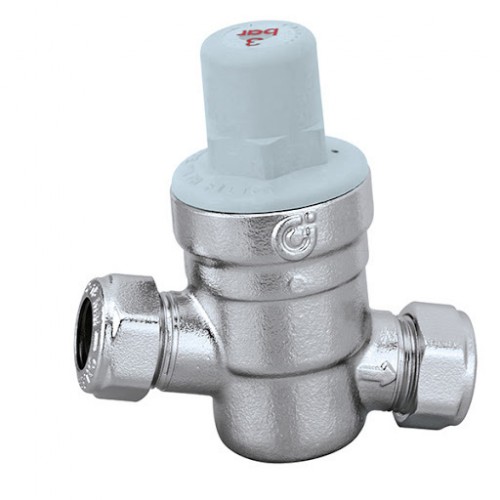

Zip AQ3 Combined Pressure Reducer & Line Strainer
Zip AQ3 Combined Pressure Reducer & Line Strainer For Use With Aquapoint III & Varipoint II water heaters.
Order code: AQ3
Manufacturer: Zip Water Heaters
GTIN: 5036764834037
Notify me by email when product is available
Normally despatched
within 3-4 working days
within 3-4 working days
Zip Water Heaters AQ3 Description
The Zip AQ3 Combined Pressure Reducer & Line Strainer may be needed if your nearest cold water draw off from the unit is within 4ft (1.22M).
The check valve is set at 3.5 bar, this will reduce the incoming water pressure and also protects the water tank from any surging water pressures from your water supplier; this in-turn will help prolong the life of the tank and also serves to prevent the expanded water expanding to other cold water draw off points!
- Inclined pressure reducing valve with compression ends
- Pressure reducer factory set a 3bars
- Replaceable cartridge and strainer
- Dezincification resistant alloy body
- Chrome plated
- Max. upstream pressure: 16 bar
- Downstream setting pressure range: 1–6 bar
- Max. working temperature: 60°C
- High flow rates
- Compact design
The Zip AQ3 kit is a combined line strainer and pressure reducer which may be needed if your installation is within 4ft or 1.22m of the nearest cold water draw off.
The check valve is set to 3.5 bar at the factory and will reduce the pressure of the incoming water, it also protects against surging water pressures which helps prolong the life heating tank, IT also prevents expanding hot water arriving at other cold water draw off points along the pipe.
