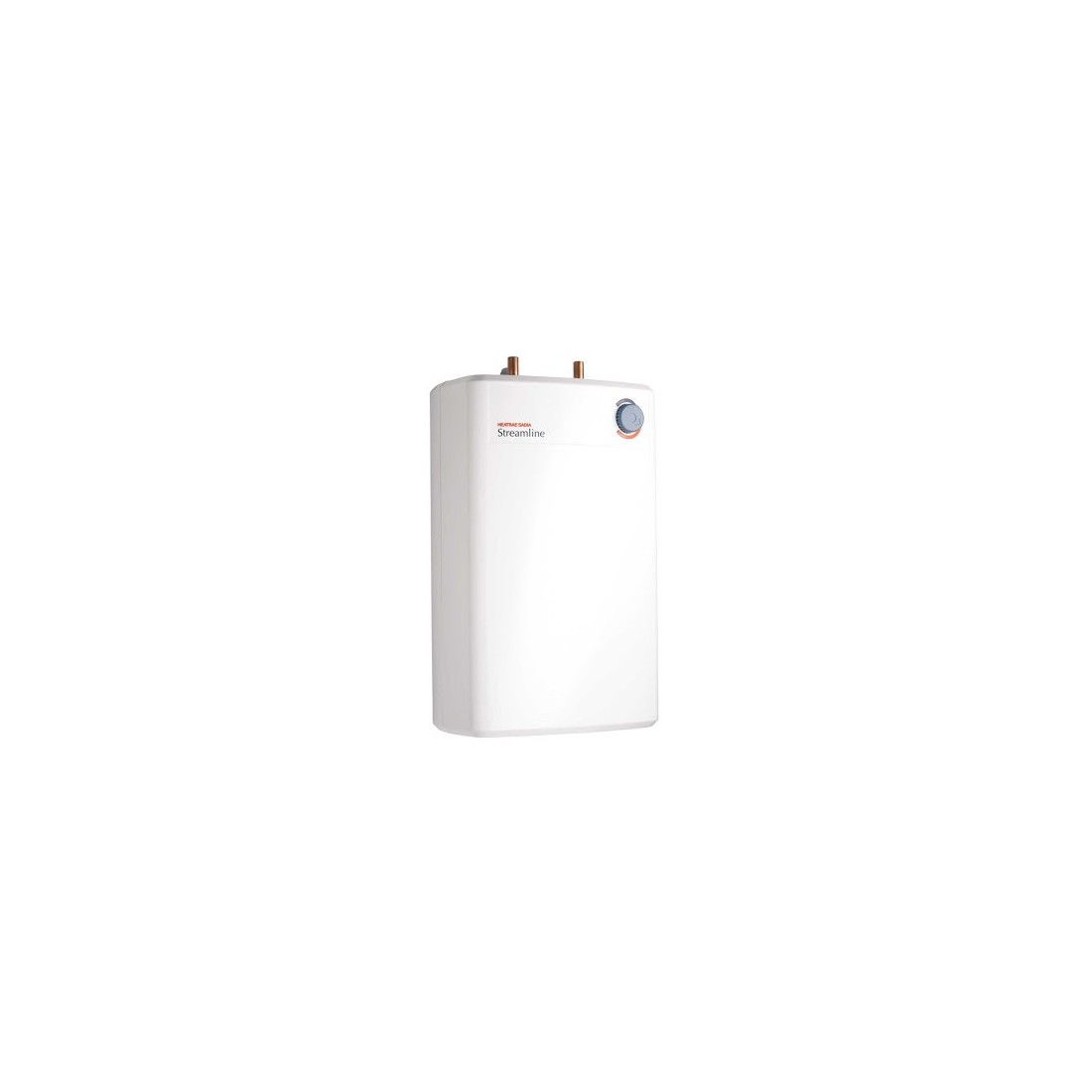

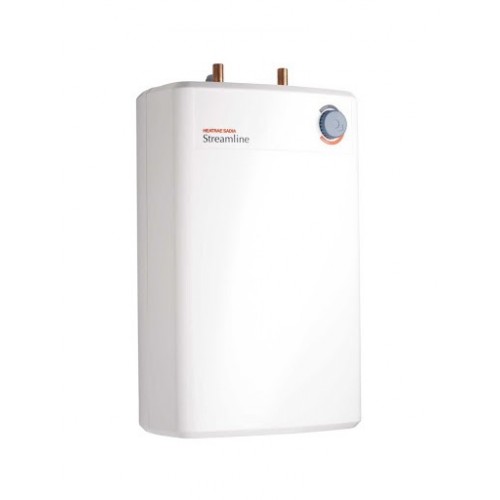

Heatrae Sadia Streamline 7 litre 3kW Vented Undersink Water Heater (95010282)
Heatrae Sadia Streamline 7 (Order Code 95.010.282) undersink vented point of use hot water heater to be used in conjunction with Heatrae Sadia's open vented tap range. An attractive, thermoplastic, point of use product offering remarkable versatility, this Streamline model has a 7 litre capacity is rated at 3kW.
Order code: 95010282
Manufacturer: Heatrae Sadia
GTIN: 5012496102828
Notify me by email when product is available
Normally despatched
within 5-7 working days
within 5-7 working days
Heatrae Sadia Streamline 7 Description
The compact low-profile Heatrae Sadia Streamline 7 litre 3kW Vented Undersink Water Heater stands out as a reliable and efficient solution for on-demand hot water needs.
Crafted with attention to both form and function, the unit features a white moulded thermoplastic case with a grey spout and flow control. The thermal insulation is CFC/HCFC free, using flame-retardant expanded polystyrene, providing both safety and energy efficiency. The water container is constructed from durable polypropylene, rigorously tested to withstand pressures up to 0.5 bar (7psi). The Heatrae Sadia Streamline 7 is equipped with a rod-type alloy sheathed long-life element, guaranteeing consistent performance over time.
One notable feature of the Heatrae Sadia Streamline 7 is its versatility. The system allows for easy conversion from oversink to undersink use, offering flexibility in installation options. Furthermore, the device has easy access for maintenance. The capillary-type, externally adjustable thermostat allows precise temperature regulation from 5°C to 90°C. Additionally, it has a 5°C to 70°C temperature lock for hand-wash applications.
The Heatrae Sadia Streamline 7 litre 3kw undersink water heater incorporates essential safety features such as a dry start cut-out and anti-frost protection. This water heater comes with a two-year guarantee with on-site service support.
Manufactured in the UK in a BS EN ISO 9001:2008 registered factory and CE marked. BEAB and Kiwa approved to UK Water Supply Regulations.
Heatrae Sadia Streamline 7 litre 3kW Features
- Capacity (L): 7
- Power rating (kW): 3
- MPN: 95010282
- Voltage Rating (V): 230
- Installation: Undersink
- Dimensions (mm): W178 H477
- Weight (kg): 3.4
- Colour: white
- Choice of 15 vented taps, spouts and mixers.
- Externally adjustable thermostat from 5°C to 90°C.
- 5°C to 70°C temperature lock for hand-wash applications.
- Dry start cut-out and Anti-frost protection.
- Two year guarantee with on-site service support.
- Made in the UK.
- Outer casing: White moulded thermoplastic
- Thermal insulation: CFC/HCFC free (ODP zero) flame-retardant expanded polystyrene
- Water container: Polypropylene, tested to 0.5 bar (7psi)
- Heat unit: Rod-type alloy sheathed element
- Approvals: BEAB and Kiwa approved to UK Water Supply Regulations. CE marked
- Manufactured in the UK in a BS EN ISO 9001:2008 registered factory.
Fixing
Bracket, screws and plugs supplied for wall-mounting.
Plumbing
All installations should be fitted with a service valve to facilitate maintenance (not supplied). Minimum inlet pressure should be 0.34 bar (5psi) at which maximum flow is 5 litres/min. A flow restrictor (available as an accessory) should be fitted for inlet pressures above 0.69 bar (10psi) to limit flow to 7 litres/min.
Supply direct from rising main or cistern (minimum head 4m) using 15mm O/D pipe. Cistern supply is not possible for all outlet types; consult Heatrae Sadia for further advice.
NOTE: Only Heatrae Sadia vented taps must be used with Streamline heaters.
Electrical
Cable entry at rear or base of unit for oversink installations and at rear or top for undersink installations. Must be permanently connected to the electrical supply through a double-pole linked isolating switch with a minimum rating of 13A (3kW model) or 5A (1kW model).
Must conform to current IEE wiring regulations.
