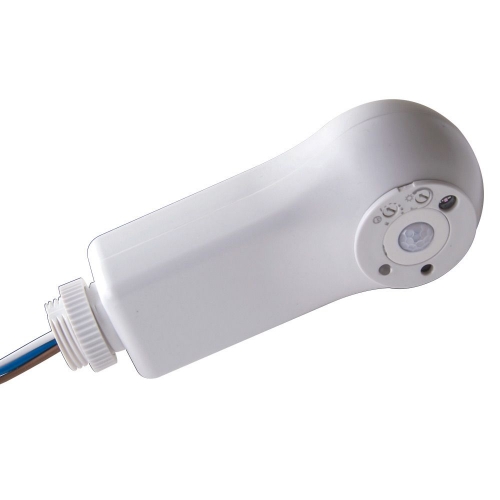

Danlers BMPIR10M Batten Mounted PIR Occupancy Switch

Danlers BMPIR10M Description

The Danlers BMPIR10M is a white 10A batten mounted PIR occupancy switch designed for the automatic switching of lighting loads. It has a all around detection of 360° up to range of 10 metres and includes a passive photocell.

Includes adjustable time on settings (between 10sec - 40min) to suit individual lighting requirements and is able to provide user feedback, including real time photocell status (glows green when active or red when inactive).

It is cleverly designed to fit on the end of an existing batten or a suspended light fitting via a 20mm knock out and .

Ideal for use in factories, warehouses, offices, schools etc..

Danlers BMPIR10M Features

• Danlers BMPIR10M batten mounting PIR occupancy switch
• Detects movement of people in the vicinity
• White polycarbonate finish
• IP53 rated
• Rating: 230V
• Detection range 360° | 10m
• Includes passive photocell with real time photocell status (green/active, red/inactive)
• Adjustable photocell lux: 30 to 3000 lux and inactive
• Adjustable time on settings (between 10sec - 40min)
• Maximum Halogen and Incandescent load: 10 Amp or 2500 Watt
• Maximum fluorescent load: 6 Amp or 1500 Watt
• Maximum compact fluorescent load: 2 Amp or 500 Watt
• Maximum LED load: 2 Amp or 500 Watt
• Maximum fan load: 1 Amp or 250 Watt
• Mounted onto the end of a lighting batten via 20mm thread
• Supplied with 1m of wire tails for connecting to the ballast
• Ideal for use in factories, warehouses, offices, schools, hospitals etc.
• Standards: BS EN 60669-2-1 and BS EN 55015
• Dimensions: Height: 120mm | Width: 50mm | Depth: 36mm
