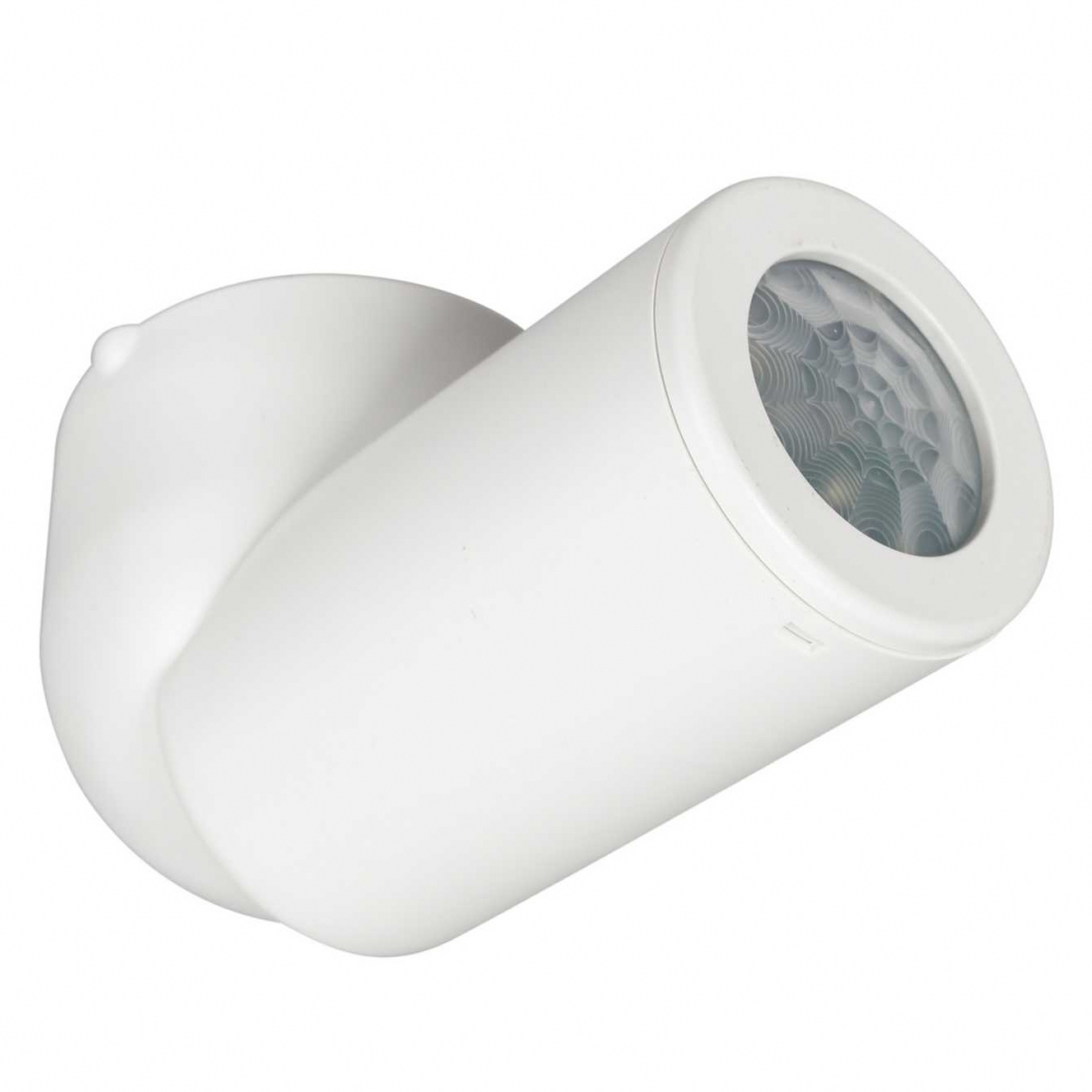

Danlers CEDR 6P 120° Ceiling Mount Directional PIR Occupancy Switch With Lux Level Sensor & Variable Delay
The Danlers CEDR6P is a white round surface ceiling mount plug-in directional PIR switch that plugs into a ceiling mounted socket that enables the automatic switching of a wide variety of load types, including LEDs. Ideal for solid ceilings.
within 1-2 working days
Danlers CEDR6P Description
The Danlers CEDR6P is a white round surface ceiling mount plug-in directional PIR switch that plugs into a ceiling mounted socket that enables the automatic switching of a wide variety of load types, including LEDs. Ideal for solid ceilings.
Designed to give a long narrow 120° / 10m detection range that can be rotated and lowered through a 45° angle. The socket can be mounted on a BESA box.
The PIR switch will switch on the connected load automatically when an area is occupied, and then switch it off when the area has been vacant for a chosen duration. It incorporate a passive infra-red sensor to detect movement of a warm body within its detection zone and a photocell to monitor the ambient light level and keep lights off when there is sufficient daylight available.
Offers a 120 degree / 10m detection zone and a 10 second to 40 minute adjustable time lag in 9 steps. This switch provides light when needed benefitting from reduced energy bills and automatic control.
It switches up to 6 amps (1500W) of resistive and fluorescent, 3 amps (750W) of electronic and wire wound transformer, 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings of maximum load and minimum load of 1 amp (250W) of fans.
Long narrow detection range, ideal for corridors and storage aisles.
Danlers CEDR6P Features
- Danlers CEDR6P is a white round surface ceiling mount plug-in directional PIR switch
- Plugs into a ceiling mounted socket (order code CESO)
- IP20 rated
- Can be installed directly onto solid ceilings using BESA mounting box
- Designed to give a directional view of the activity to be monitored
- Long narrow detection range, ideal for corridors and storage aisles
- Incorporate a passive infra-red sensor which detects the movement of a warm body moving
- Photocell to monitor the ambient light level
- Detection Angle: 120°
- Detection Range: 10m
- Can be rotated and lowered through a 45° angle
- Adjustable time lag range: 10 seconds to 40 minutes in 9 steps
- Adjustable photocell range: 100 to 1000 lux and inactive
- Loading: Up to 6 amps (1500W) of resistive, or fluorescent lighting loads or up to 1 amp (250W) of fans
- Up to 2 amps (500W) of low energy lighting loads (LED lamps and compact fluorescent)
- Dimensions: Diameter Ø: 60mm | Length: 102mm | Height: 64mm
