Danlers CESR PIR White Round Surface Mount Single Channel 360° | 7m PIR Presence Detector With Lux Level Sensing & 10sec - 40min Time Delay Function IP20 6A 240V DiaØ: 91mm | Depth: 45mm

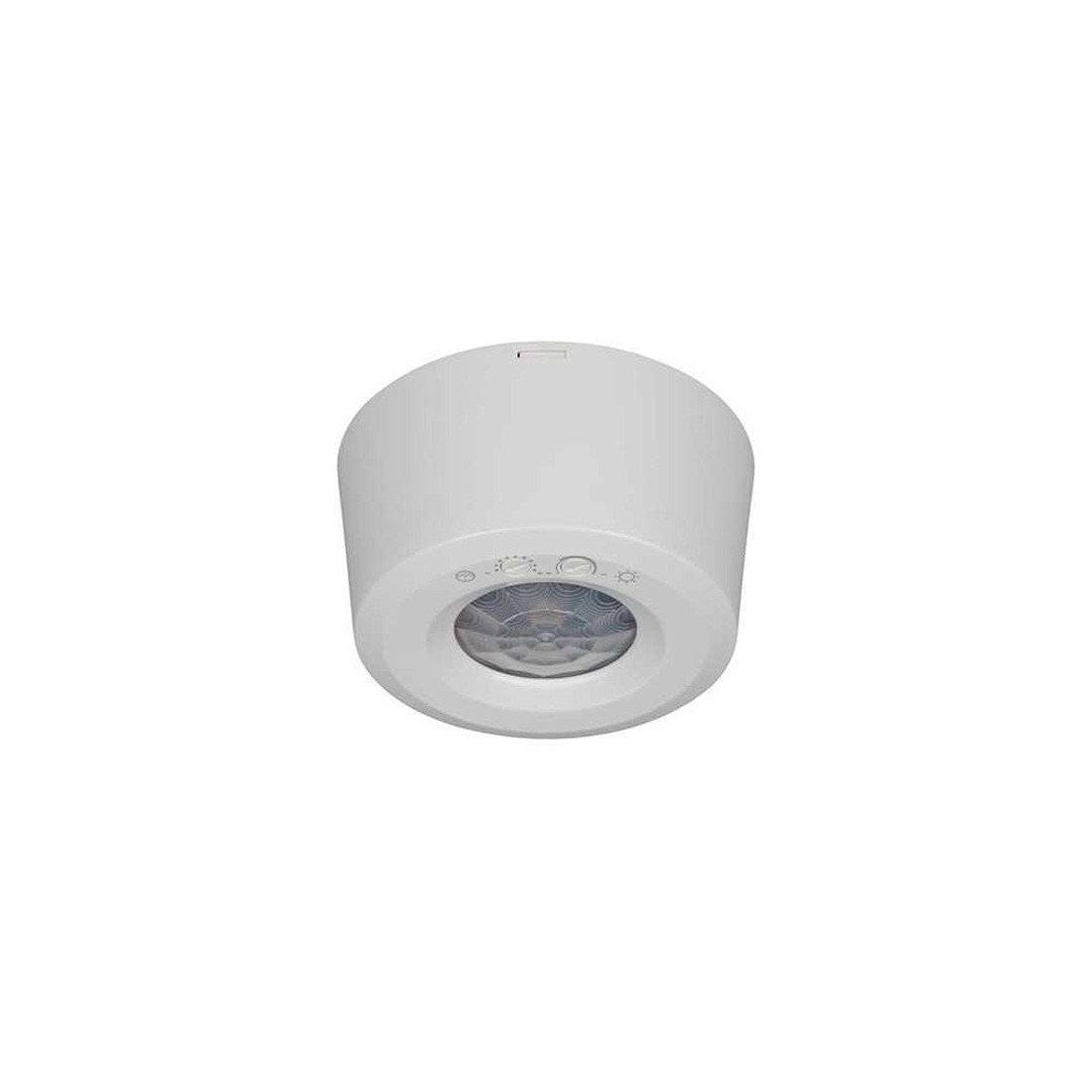

The Danlers CESRPIR is a white round surface mount single channel PIR presence detector that can be installed directly onto solid ceilings or a range of different mounting boxes.
within 1-2 working days
Danlers CESRPIR Description
The Danlers CESRPIR is a white round surface mount single channel PIR presence detector that can be installed directly onto solid ceilings or a range of different mounting boxes.
The PIR switch will switch on the connected load automatically when an area is occupied, and then switch it off when the area has been vacant for a chosen duration. It incorporate a passive infra-red sensor to detect movement of a warm body within its detection zone and a photocell to monitor the ambient light level and keep lights off when there is sufficient daylight available.
Offers a 360 degree detection zone and a 10 second to 40 minute adjustable time lag in 9 steps. This switch provides light when needed benefitting from reduced energy bills and automatic control.
It switches up to 6 amps (1500W) of resistive and fluorescent, 3 amps (750W) of electronic and wire wound transformer, 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings of maximum load and minimum load of 1 amp (250W) of fans.
Ideal for offices, factories, warehouses, canteens, schools and factories.
Danlers CESRPIR Features
- Danlers CESR PIR white surface mounting single channel 360° | 7m PIR presence detector
- IP20 rated
- Surface mounting
- Can be installed directly onto solid ceilings or a range of different mounting boxes
- Ideal for retrofitting or new build
- Product is hard wired
- Incorporate a passive infra-red sensor which detects the movement of a warm body moving
- Photocell to monitor the ambient light level
- Detection zone: 360°
- Detection range: up to 7m (5m strong detection and 2m secondary detection)
- Adjustable time lag range: 10 seconds to 40 minutes in 9 steps
- Adjustable photocell range: 30 to 1000 lux and inactive
- Loading: Up to 6 amps (1500W) of resistive, or fluorescent lighting loads or up to 1 amp (250W) of fans
- Up to 2 amps (500W) of low energy lighting loads (LED lamps and compact fluorescent)
- Dimensions: Diameter Ø: 91mm | Proj: 45mm
