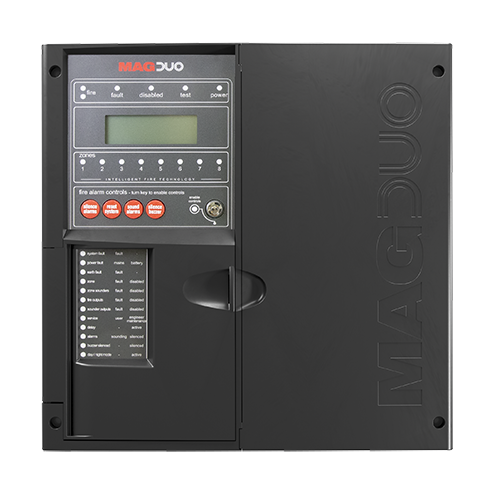

ESP MAGDUO8B MAGDUO Black 8 Zone Bi-Wire EN54 Fire Alarm Panel - Requires 2 x 12V 2.3Ah Batteries (BAT32)

ESP MAGDUO8B Description

The ESP MAGDUO8B is a black 8 zone bi-wire EN54 fire alarm panel that utilises intelligent 2-wire technology enables all devices such as smoke and heat detectors, manual call points, strobes and sounders to be connected on the same pairs of wires.

Supports up to 32 devices per zone and has the ability to differentiate between smoke detector, heat detector or a manual call point alarm. Zones can be reconfigured to day or night detection modes.

Supplied complete with an alarm confirmation feature & 3 enhanced test modes.

The advanced technology on the MAGDUO8B reduces installation and material cost.

ESP MAGDUO8B Features

• ESP MAGDUO8B black bi-wire EN54 fire alarm panel
• ‘Two-Wire’ meaning that all system devices can be installed on the same circuit
• Certified to EN54 2/4 Standards
• IP21C rated
• 8 Zones
• Supports up to 8 repeater panels
• Zone can be configured to day/night detection mode
• Up to 32 devices per zone
• 3 enhanced test modes
• Ability to differentiate between smoke detector, heat detector or a manual call point alarm
• 4-line x 20-character LCD display
• Alarm confirmation feature
• Event log storing up to 500 events
• Delay programming options
• Active end of line monitoring and head removal
• Mains supply: 230V 50/60Hz
• Requires 2 x 12V 3.2Ah batteries (BAT32)
• MAGDUO FlexiPoint detectors are changeable from smoke to heat detection mode using the dip switch
• FlexiPoint detectors are also available with inbuilt sounder & strobe options
• Dimensions: Height: 333mm | Width: 333mm | Depth: 99mm
