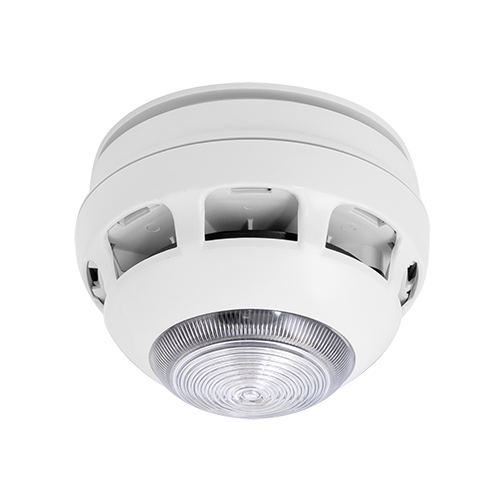

ESP MAGDUOSHDSS FlexiPoint Bi-Wire Smoke & Heat Detector with Sounder & Strobe
The ESP MAGDUOSHDSS FlexiPoint Bi-Wire Smoke & Heat Detector with Sounder & Strobe is a white bi-wire round multi-sensor smoke & heat detector with sounder and strobe for use with two wire fire alarm systems and fire alarm panels.
Order code: MAGDUOSHDSS
Manufacturer: ESP
GTIN:
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
ESP MAGDUOSHDSS Description
The ESP FlexiPoint MAGDUOSHDSS is a white bi-wire round multi-sensor smoke & heat detector with sounder and strobe for use with two wire fire alarm systems and fire alarm panels.
Features 7 modes of fire detection including 3 modes of optical smoke detection, 3 modes of thermostatic heat detection, and 1 mode of combined smoke and heat detection.
Supplied with a built-in sounder and 3 sounder modes and LED strobe light.
Self-calibration every 6 hours. Comes complete with built-in end of line function. Includes the device wiring base.
Designed for fast and simple installation. Certified to the EN54 standard.
ESP MAGDUOSHDSS Features
- ESP MAGDUOSHDSS bi-wire round multi-sensor smoke & heat detector with sounder and strobe
- For use with two wire fire systems
- Finish: White
- Rating: IP21C suitable for indoor use
- 7 modes of fire detection including combined smoke/heat.
- Built-in sounder and 3 sounder modes
- Integral LED strobe
- Self-calibration every 6 hours
- Built-in end of line function
- Device wiring base included
- Adjustable levels of fire detection sensitivity
- Continuous dust contamination monitoring
- Voltage: 18V-32V
- Standards: EN54
- Dimensions: Dia Ø: 107mm | Depth: 75mm
