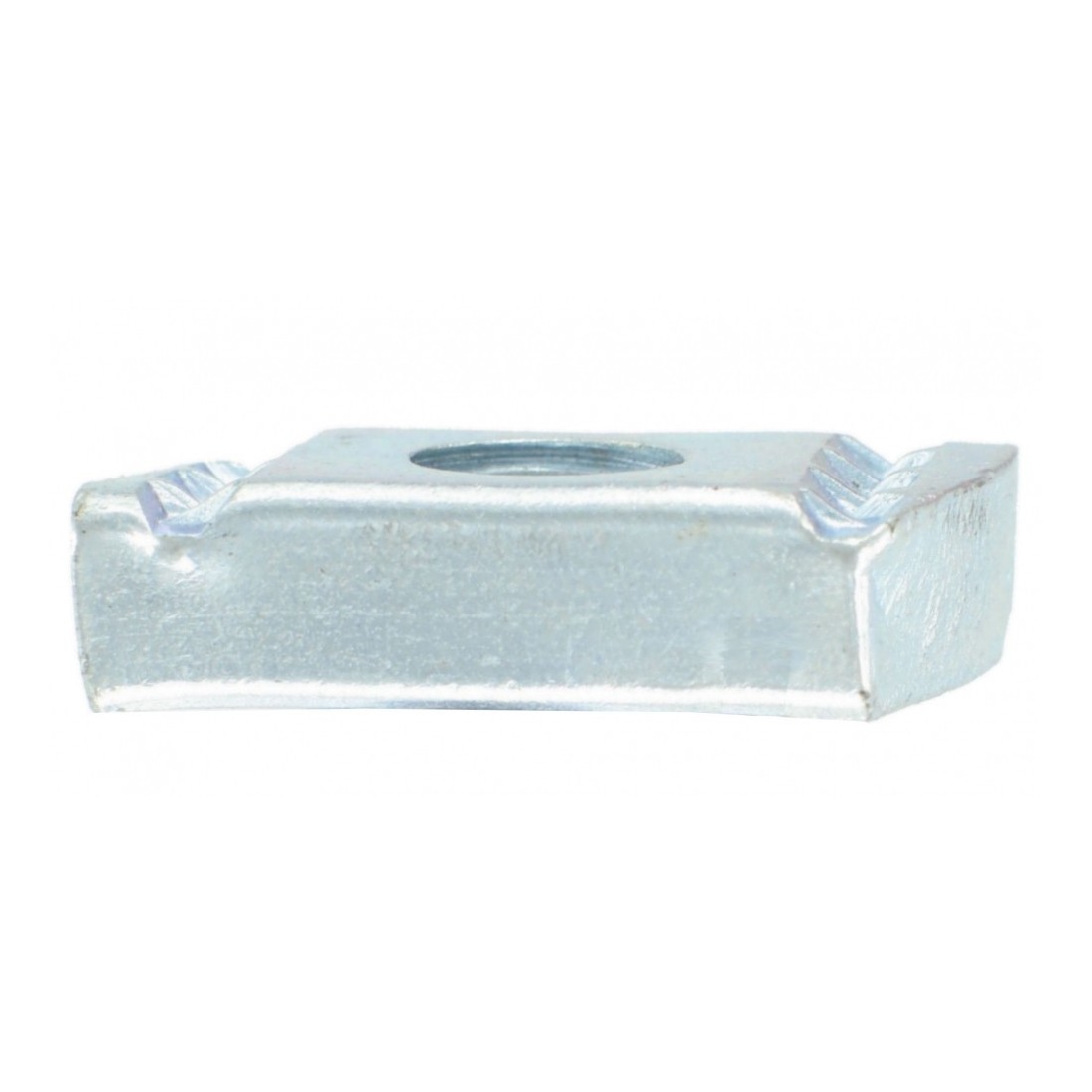

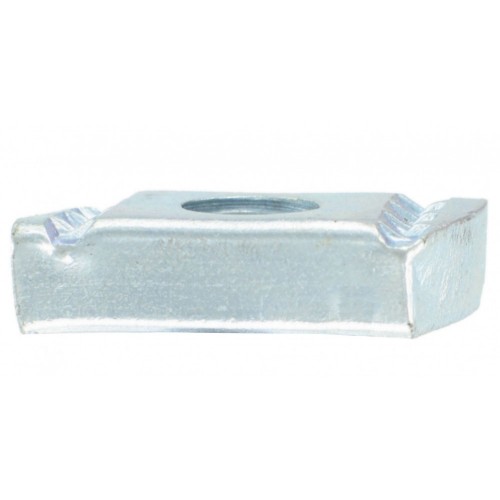

Deligo CNM6 Plated Steel Channel Nut Without Spring Thread: M6 - Priced Individually

Deligo CNM6 Description

The Deligo CNM6 is an M6 threaded plain channel nut without a spring manufactured from zinc plated steel for use when installing plain and slotted channel support systems. Suitable for indoor, low corrosion environments.

The narrow rectangular base has grooves along the edges act as small gripping teeth that lock onto the channel when tightened. Has a tapped hole in the centre. Typically pre–mounted on any bolt before insertion into the channel length.

The channel nuts is inserted lengthways into the central trough of the metal channel. Turing the nut 90° aligns the gripping teeth with the internal folded edges of the channel. When a threaded nut or bolt is offered up and tightened, the gripping teeth bite into the edge of the channel securing it in place. Provides a secure anchor point along the channel length to install pipe and cable support components.

Often referred to as zebs or zebedees they are priced individually so only buy what you need!

Deligo CNM6 Features

• Deligo CNM6 channel nut without spring
• M6 threaded
• Manufactured from zinc plated steel
• Typically pre–mounted on any bolt before insertion into the channel length
• For use when installing plain and slotted channel
• Provides a secure anchor point to install pipe and channel fittings
• Suitable for indoor, low corrosion environments
• Often referred to as zebs or zebedees
• Conforms with BS 6946
