JCC Lighting RadiaLED Rapid Pro Bulkheads
The JCC RadiaLED Rapid Pro LED Bulkhead range combines versatile lighting performance with practical installation features, making it an excellent choice for residential, commercial and communal lighting applications. Available in round and square designs with black and white finishes, these durable IP65 and IK10 rated bulkheads provide reliable illumination for corridors, stairwells, entrances, walkways and sheltered or exposed outdoor locations.
Selectable wattage options include 8W/12W and 12W/16W/20W, allowing electricians to adjust light output and energy consumption to meet individual project requirements. Integrated 3CCT selection provides a choice of 3000K warm white, 4000K cool white and 5700K daylight, offering greater flexibility without needing separate fixed-colour fittings.
JCC's distinctive clip-in, tool-less LED gear tray and multiple side conduit entries are designed to simplify installation and improve access for electrical connections. Compatible plug-and-play emergency, self-test emergency, microwave sensor and photocell modules allow standard fittings to be adapted for additional lighting requirements. With high-efficiency LED performance, interchangeable decorative trims and a choice of fitting sizes, RadiaLED Rapid Pro provides a flexible, installer-friendly solution for both new installations and lighting upgrades.
Showing 1 - 24 of 24 items
JCC LIGHTING RADIALED RAPID PRO PLUG-IN MODULES
JCC LIGHTING RADIALED RAPID PRO BULKHEAD TRIM RINGS
Showing 1 - 24 of 24 items
Key Features & Benefits
- Wattage selectable – choose between 8W/12W or 12W/16W/20W settings, depending on the fitting, to match light output to the application.
- 3CCT colour selectable – integrated selection between 3000K warm white, 4000K cool white and 5700K daylight.
- IP65 weather protection – suitable for a wide range of indoor and outdoor lighting environments.
- IK10 impact resistance – robust polycarbonate construction provides protection against mechanical impact.
- High-efficiency LED performance – selected 20W models deliver up to 2430 lumens, with efficiency reaching 127lm/W at the 16W setting.

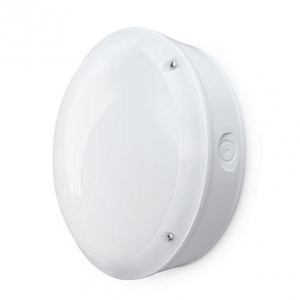

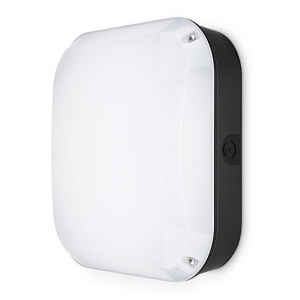

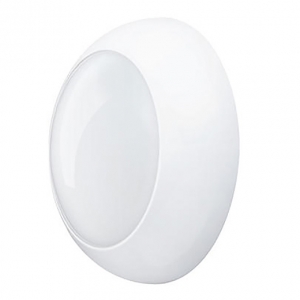

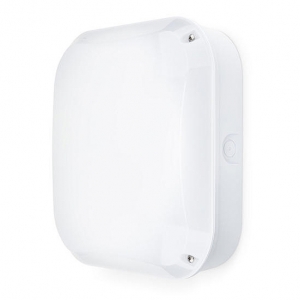

- Round & square designs – a choice of fitting shapes provides flexibility for different architectural and lighting requirements.
- Black & white finishes – practical colour options to complement interior and exterior surroundings.
- Tool-less clip-in LED gear tray – a distinctive JCC design developed to simplify installation and maintenance access.
- Four side conduit entries – 20mm cable entry points provide flexibility for different wiring arrangements.
- Plug-and-play emergency compatibility – compatible with JCC JCEM005 emergency modules for applications requiring backup illumination.

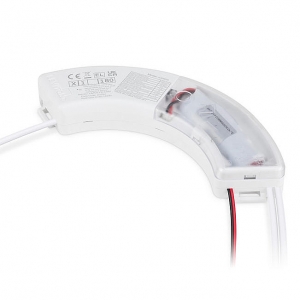

- Self-test emergency option – compatible with JCEM005ST modules for automatic emergency testing.

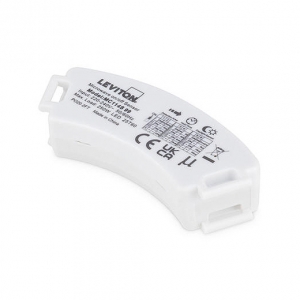

- Microwave sensor compatibility – optional LEV71960 modules provide automatic movement-responsive lighting control.

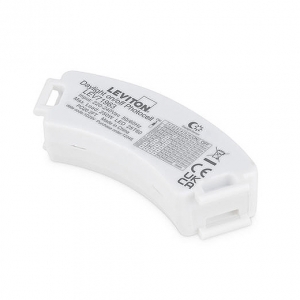

- Photocell compatibility – optional LEV71963 modules provide light-level-responsive switching.
- Decorative trim options – matching and interchangeable trim rings, including black and satin chrome options, allow fittings to complement their surroundings.
- Wall & ceiling mounting – suitable for entrances, corridors, stairwells, communal areas and external walkways.
- Long-life integrated LEDs – selected Rapid Pro fittings are rated for 60,000 hours, helping minimise ongoing maintenance.
