Collingwood Lighting LEDEP10 White Dual Mode Emergency Kit For Commercial LED Downlights

Collingwood Lighting LEDEP10 Description

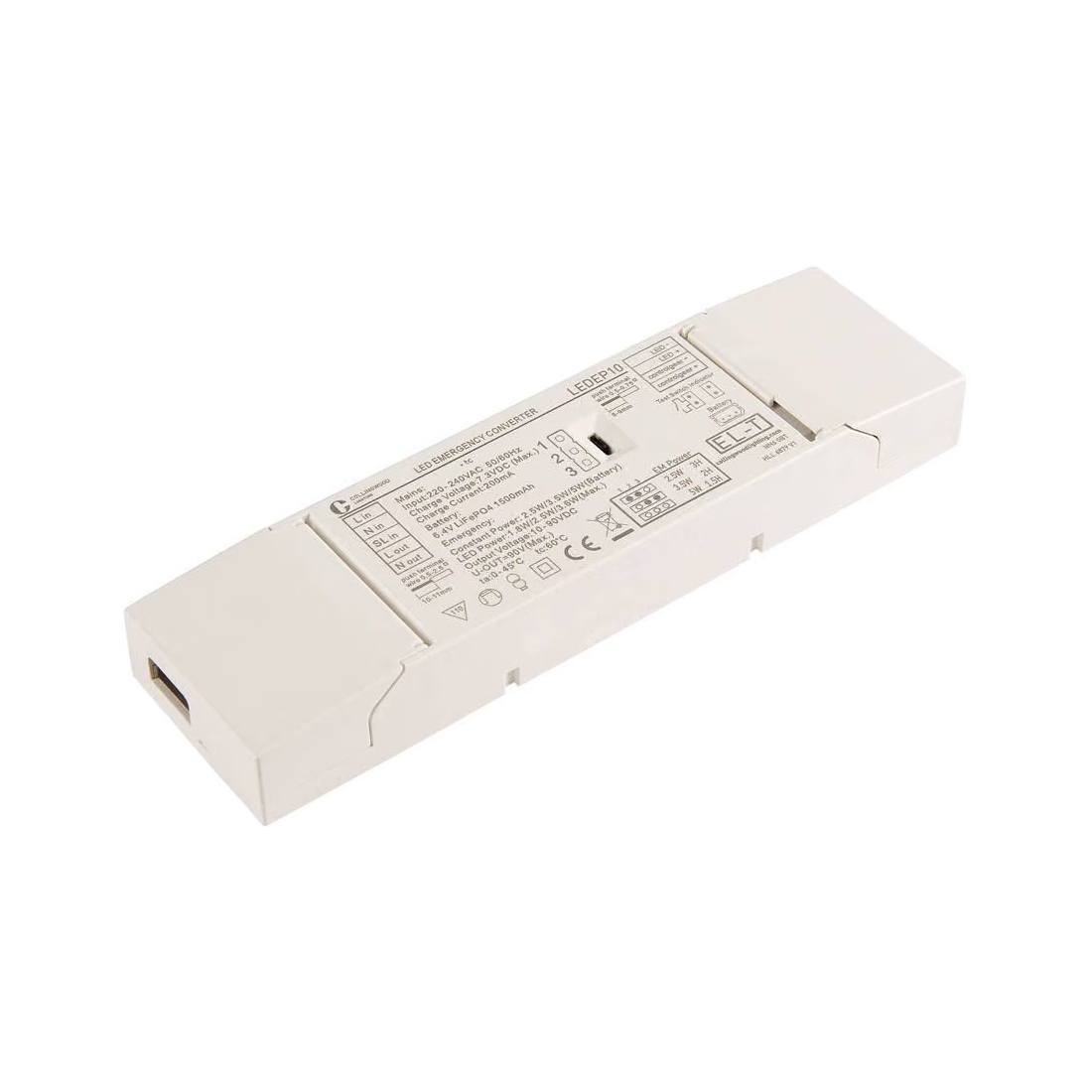

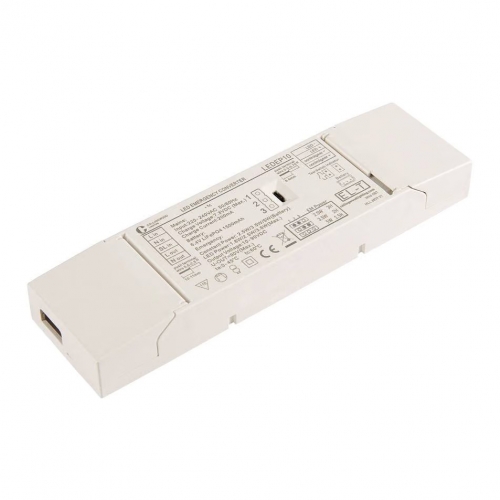

The Collingwood LEDEP10 Emergency Converter is designed to convert a wide range of compatible Collingwood LED luminaires for maintained emergency lighting operation. Suitable for selected Solis LED panels, Thea commercial downlights, H2 Pro, 1901 and H5 downlights, it provides a versatile emergency solution across both commercial and residential lighting applications.

The LEDEP10 offers switchable Self-Test and Manual-Test operation, allowing the testing method to be selected to suit the application. In Self-Test mode, the unit automatically carries out emergency lighting tests, including a synchronised battery duration test every six months, helping simplify ongoing testing requirements. A dual-colour green/red LED status indicator provides clear visual indication of the emergency unit status, while the supplied test button allows a battery duration test to be initiated when required.

In the event of a mains power failure, the connected luminaire operates at a reduced light output for a minimum of three hours. Long-life LiFePO4 battery technology is combined with built-in protection against open circuit, overcharging, over-discharging and excessive temperature. Push-fit terminals and DC plug-and-play connectors also help reduce connection time, making the Collingwood LEDEP10 a practical emergency conversion solution for compatible Collingwood lighting products.

Collingwood Lighting LEDEP10 Features

• Product type: LED emergency converter / emergency pack
• Converts compatible Collingwood LED luminaires for maintained emergency operation
• Self-Test and Manual-Test switchable
• Minimum emergency duration: 3 hours
• Battery technology: LiFePO4
• Long operational battery life
• Dual-colour green/red LED status indicator
• Supplied with a test button for manual battery duration testing
• Self-Test function automatically synchronises a battery duration test every 6 months
• Luminaire operates at reduced output during a mains power failure
• Push-fit terminals help reduce connection time
• DC plug-and-play connectors for straightforward connection to compatible luminaires
• Built-in open-circuit protection
• Built-in overcharge protection
• Built-in over-discharge protection
• Built-in over-temperature protection
• Input voltage: 220–240V AC
• IP rating: IP20
• Finish: Matt White
• Dimmable: No
• Insulation coverable: No
• Status LED cut-out: 18mm
• Test button cut-out: 7mm
• Compatible with selected Solis LED panels
• Compatible with selected Thea commercial downlights
• Compatible with selected H2 Pro, 1901 and H5 downlights
• Not suitable for compatible ranges in trimless configurations
• 5-year extended manufacturer warranty
