  5. JCC Lighting JC5503 Corel LED Plus White Commercial CCT LED Downlight IP54 18W 3000K/4000K/5700K 2400Lm 240V Dia Ø: 228mm | Cut-Out: 200-210mm | Recess Depth: 60.6mm

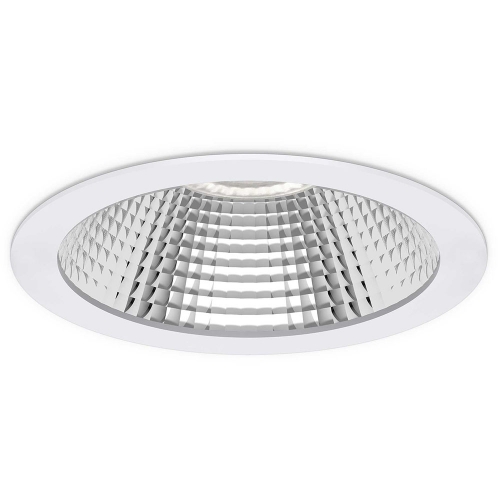

JCC Lighting JC5503 Corel LED Plus White Commercial CCT LED Downlight IP54 18W 3000K/4000K/5700K 2400Lm 240V Dia Ø: 228mm | Cut-Out: 200-210mm | Recess Depth: 60.6mm

JCC Lighting JC5503 Corel LED Plus White Commercial CCT LED Downlight IP54 18W 3000K/4000K/5700K 2400Lm 240V Dia Ø: 228mm | Cut-Out: 200-210mm | Recess Depth: 60.6mm

The JCC Lighting Coral LED plus JC5503 is a white IP54 rated 18W recessed commercial LED downlight with 3 colour selectable LEDs that are retrofit replacement for compact fluorescent lamp or first generation LED fittings.

Order code: JC5503
Manufacturer: JCC Lighting
GTIN: 5052544116063

£ 53.35 incl. VAT
£ 44.46 excl. VAT

Trade Price: £ 135.15
You SAVE
£ 90.69 or 67%
Add to compare
Normally despatched within 1-2 working days
Normally despatched
within 1-2 working days

JCC Lighting JC5503 Description

The JCC Lighting Coral LED plus JC5503 is a white IP54 rated 18W recessed commercial LED downlight with 3 colour selectable LEDs that are retrofit replacement for compact fluorescent lamp or first generation LED fittings.

Constructed from aluminium and polycarbonate with a CRI (colour rendering index) of 85 – these downlights are perfect for installation in retail environments. UGR19 as standard, designed to comply with BS EN 12464-1 lighting of workspace.

Supplied with 3 colour selectable LED options, ranging from warm white (3000K), cool white (4000K) and daylight white (5700K). Delivers 2400Lm of crisp white LED light at energy efficient 133Lpc/W.

Easy to install. The low profile design with external flicker free driver ensures it can be installed in shallow ceiling voids. A simple inline switch allows the installer to choose between 3000K, 4000K or 5700K colour temperatures at installation time.

For emergency installation simply use the JCEM002/JCEM002ST plug-and-play remote emergency packs.

The JCC Lighting Coral LED plus JC5503 looks great in prominent locations where maintenance is an issue and where the light levels need to be controlled.

JCC Lighting JC5503 Features

  • JCC Lighting JC5503 recessed commercial LED CCT downlight
  • Constructed from aluminium and polycarbonate
  • Supplied with white twist-and-lock bezel
  • IP54 rated
  • Rating 18W 240V~
  • 3 colour selectable LEDs warm white (3000K) | cool white (4000K) | daylight white (5700K)
  • Lumens: 2400Lm | 133Lpc/W.
  • Simple inline switch allows the installer to choose LED colour at installation time
  • CRI (colour rendering index) of 85 – perfect for installation in retail environments
  • 60° beam angle
  • UGR19 as standard, designed to comply with BS EN 12464-1 lighting of workspace.
  • Low profile design ensures it can be installed in shallow ceiling voids.
  • Non-dimmable, external, flicker free driver
  • Suitable for use with JCEM002/JCEM002ST remote emergency packs
  • Dimensions: Diameter Ø: 228mm | Cut-Out: 200-210mm | Recess Depth: 60.6mm
