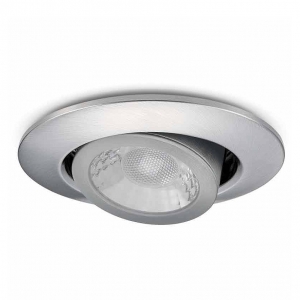

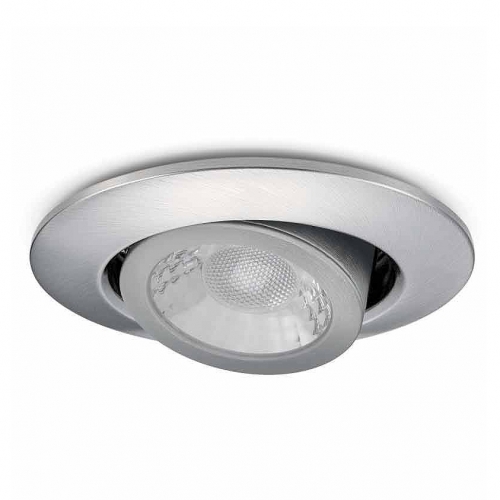

JCC Lighting JC1026/BN V50 Pro Brushed Nickel IP65 6W 650-700Lm 2CCT Selectable 100mm Round Adjustable LED Fire Rated Downlight

JCC Lighting JC1026/BN Description

The JCC JC1026/BN V50 Pro Tilt Fire Rated LED Downlight is a versatile adjustable fitting designed for applications where directional lighting, high performance and IP65 protection are required. Its integrated 6W LED delivers 650 or 700 lumens, with selectable 3000K warm white or 4000K cool white colour temperature providing flexibility from a single fitting. The adjustable design provides an impressive 350° rotation and 20° tilt from below the ceiling, making it easy to direct illumination towards specific areas and features. A slim die-cast aluminium bezel and low-profile construction require only a 50mm minimum ceiling void, while JCC's double-hinged remote driver provides clear access to the terminal block for installer convenience. Finished in brushed nickel and complete with Triac dimming, a wide 60° beam and fire-rated construction, the V50 Pro Tilt provides a flexible solution for residential and commercial lighting schemes.

JCC Lighting JC1026/BN Features

• Product type: Adjustable fire-rated LED downlight
• Finish: Brushed nickel
• Power: 6W
• Light output: 650 / 700 lumens
• Luminous efficacy: 108 / 116 lm/W
• 2CCT selectable: 3000K warm white / 4000K cool white
• Colour temperature selected using a switch on the remote driver
• Adjustable head: 350° rotation and 20° tilt
• Adjustment can be carried out from below the ceiling
• IP65 rated – JCC identifies the V50 Pro Tilt IP65 as suitable for bathrooms and wet areas
• Dimmable: Yes
• Dimming protocol: Triac
• Beam angle: 60°
• CRI: Ra 80
• Voltage: 230-240V
• Electrical class: Class II
• Slim die-cast aluminium bezel
• Overall dimensions: Ø100mm x 62.7mm
• Ceiling cut-out: Ø86mm
• Minimum ceiling void: 50mm
• Maximum ceiling thickness: 30mm
• Mounting: Recessed with spring clips
• Low-profile construction is ideal for shallow ceiling voids
• JCC double-hinged remote driver provides easier access to the terminal block
• Clear terminal cover allows the connection to be visually checked
• Tested for use in solid and I-joist ceiling constructions
• JCC states the V50 Pro range adheres to relevant Parts B, C and E of the Building Regulations
