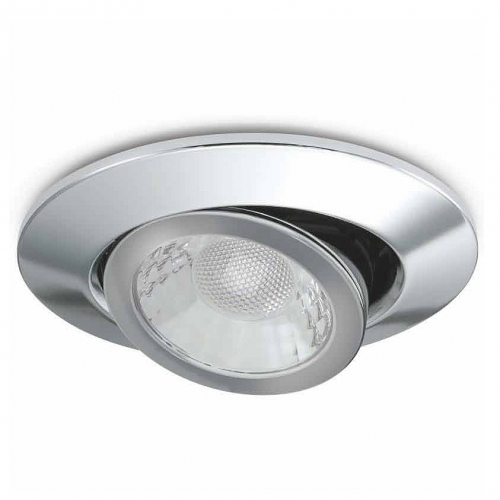

JCC Lighting JC1026/CH V50 Pro Chrome IP65 6W 650-700Lm 2CCT Selectable 100mm Round Adjustable LED Fire Rated Downlight

JCC Lighting JC1026/CH Description

The JCC JC1026/CH V50 Pro Tilt Fire Rated LED Downlight is a versatile adjustable fitting designed for applications where both directional lighting and IP65 protection are required. Its integrated 6W LED delivers 650 or 700 lumens, with selectable 3000K warm white or 4000K cool white colour temperature providing two popular lighting options from a single fitting. The adjustable head offers 350° rotation and 20° tilt, allowing the light to be directed towards specific areas or features while retaining a clean 100mm round profile. A low-profile design requires only a 50mm minimum ceiling void, while JCC's double-hinged remote driver provides clear access to the terminal block to assist installation. With Triac dimming, a wide 60° beam, IP65 protection and fire testing for solid and I-joist ceiling constructions, the chrome V50 Pro Tilt combines flexible lighting performance with installer-focused design.

JCC Lighting JC1026/CH Features

• Product type: Adjustable fire-rated LED downlight
• Finish: Chrome
• Power: 6W
• Light output: 650 / 700 lumens
• Luminous efficacy: 108 / 116 lm/W
• 2CCT selectable: 3000K warm white / 4000K cool white
• Colour temperature selectable via the remote driver
• Adjustable design: 350° rotation and 20° tilt
• Allows the light direction to be adjusted to suit the required area
• IP65 rated – suitable for appropriate bathroom and wet-area applications
• Dimmable: Yes
• Dimming: Triac
• Beam angle: 60°
• CRI: Ra 80
• Voltage: 230-240V
• Electrical class: Class II
• Die-cast aluminium bezel with slim-profile design
• Overall dimensions: Ø100mm x 62.7mm
• Ceiling cut-out: Ø86mm
• Minimum ceiling void: 50mm
• Maximum ceiling thickness: 30mm
• Recessed mounting with spring clips
• Low-profile design makes the fitting suitable for shallow ceiling voids
• JCC double-hinged remote driver provides improved access to the terminal block
• Clear terminal cover allows secure termination to be visually checked
• Fire tested for solid and I-joist ceiling constructions
• JCC states V50 Pro complies with relevant Parts B, C and E of the Building Regulations
