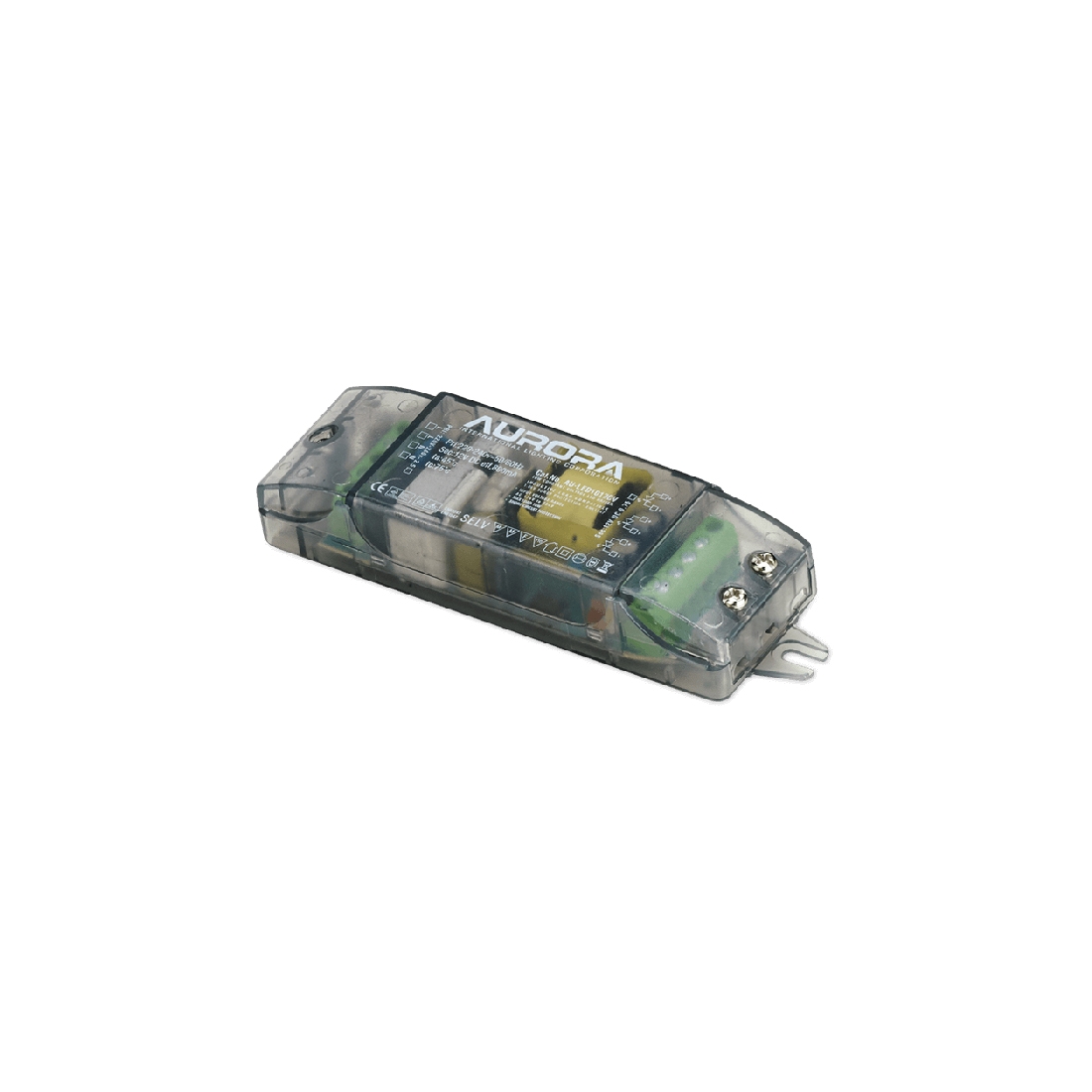

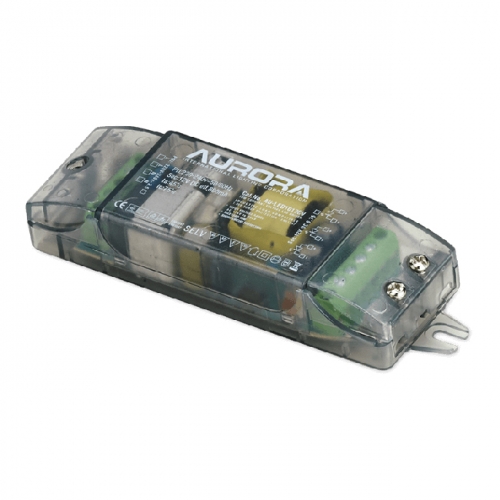

Aurora Lighting AU-LED1012CV Non-Dimmable Constant Voltage LED Driver 10W 12VDC Length: 122mm | Width: 40mm | Height: 24mm
Order code: AU-LED1012CV
Manufacturer: Aurora
GTIN: 5055155440602
Notify me by email when product is available
We can notify you
when we have stock
when we have stock
Aurora AU-LED1012CV Description
Specification:
| Input Voltage (V) | 100-264V AC 50/60Hz V |
| Output Voltage (V) | 12V DC V |
| Nominal Power (VA) | 10W VA |
| Line Current (A) | 0.060 A |
| Max Ambient Temp (deg. C) | 50 deg. C |
| Max Case Temp (deg. C) | 80 deg. C |
| Length (mm) | 122 mm |
| Width (mm) | 40 mm |
| Height (mm) | 24 mm |
Features:
• Registered Community Design 001886730
• For the supply of low voltage LED lamps
• 12V DC output
• Overload protection
• Short circuit protection
• Thermal protection
• Secondary wiring terminals - 3 outputs
• Loop-in, loop-out primary wiring terminals
• Integrated earth terminal for earth continuity
• No junction box required
• 1.0kV SURGE PROTECTION – EN 61547
• Safety compliance – EN 61347
• EMC compliance – EN 55015, EN 61000, EN 61547
• Non-dimmable
• Parallel wiring only
• 3 Year guarantee
| Brand : | Aurora |
| Part No : | AU-LED1012CV |
| GTIN : | 5055155440602 |
| Colour : | White/Blue |
| Type : | Non-Dimmable Constant Voltage LED Driver |
| Dimensions : | (L)122 mm x (H)24 mm x (W)40 mm |
| Height : | 24mm |
| Width : | 40mm |
| Guarantee : | 3 Years |
| Material : | Polycarbonate |
| Length : | 122mm |
| Power Rating : | 10W |
| Power Range : | 1 - 10W |
| Voltage Range : | 230V |
