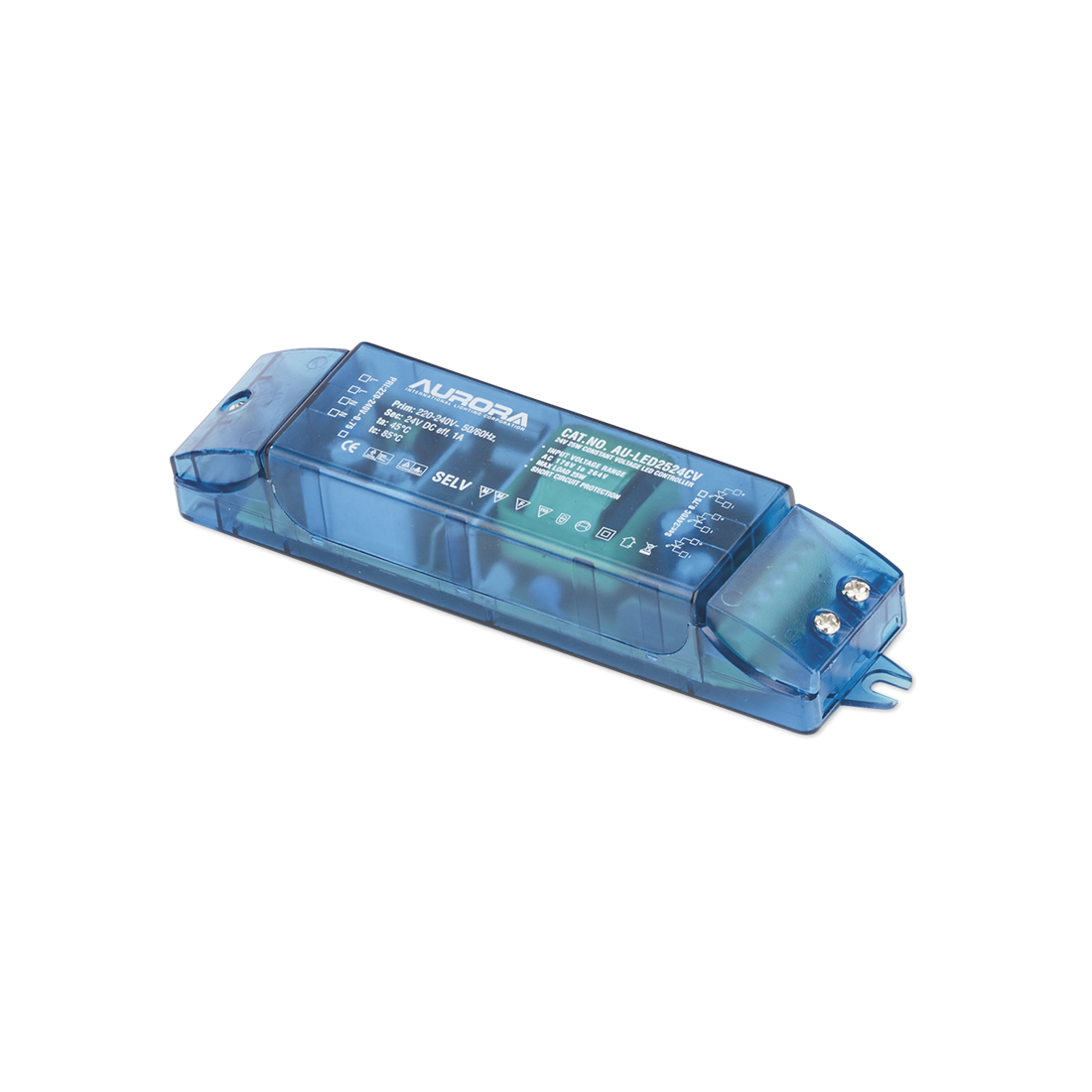

Aurora Lighting AU-LED2524CV Non-Dimmable Constant Voltage LED Driver 25W 24VDC Length: 169mm | Width: 38mm | Height: 28mm

Aurora AU-LED2524CV Description

Features
• 1.0kV SURGE PROTECTION – EN 61547
• Safety compliance – EN 61347
• EMC compliance – EN 55015, EN 61000, EN 61547
• Non-dimmable
• Parallel wiring only
• 3 Year Warranty
• Registered Community Design 001886730
• For the supply of low voltage LED lamps
• 24V DC output
• Overload protection
• Short circuit protection
• Thermal protection
• Secondary wiring terminals - 3 outputs
• Loop-in, loop-out primary wiring terminals
• Integrated earth terminal for earth continuity
• No junction box required

Specification
Input Voltage (Min): 100 V
Input Voltage (Max): 264 V
Input Voltage Type: AC
Input Voltage Frequency (Min): 50 Hz
Input Voltage Frequency (Max): 60 Hz
Output Voltage (Min): 24 V
Output Voltage (Max): 24 V
Output Voltage Type: DC
