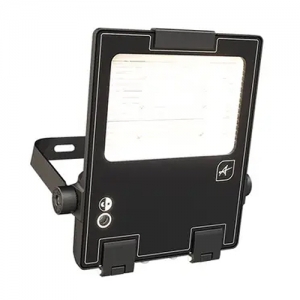

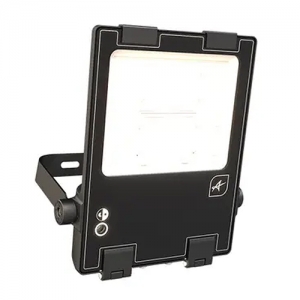

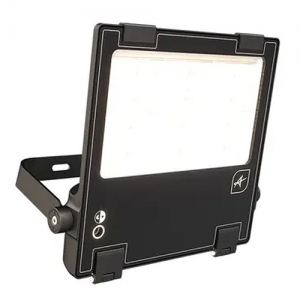

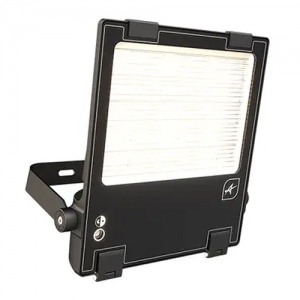

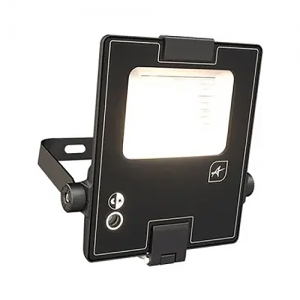

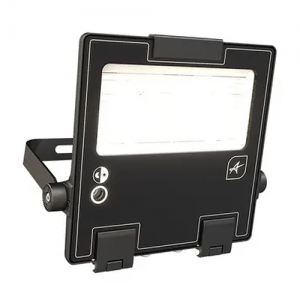

Ansell Lighting Aztec LED Floodlights
The Ansell Aztec LED Floodlight range is engineered for high-performance commercial and industrial exterior lighting, with robust die-cast aluminium construction and IP66 protection. Each fitting offers 3000K, 4000K and 5000K CCT selection, allowing the required light colour to be chosen to suit the project.
Choose from high-efficiency symmetric optics for powerful general-area illumination or asymmetric versions designed to direct light more precisely and help reduce unwanted light pollution. With options ranging through to 320W and 57,000 lumens at 4000K, and efficiencies reaching 180lm/W, Aztec provides substantial performance for larger exterior spaces.
An integral photocell with two lux settings and off option provides automatic dusk-to-dawn control, while surge protection helps safeguard the fitting in demanding applications. Installer-focused details include a mounting bracket that does not need to be removed during installation, 1.5 metres of pre-wired rubber-insulated cable, fast-fit lever terminals for loop-in/loop-out wiring and a breathable gland to help prevent internal moisture accumulation.
Showing 1 - 14 of 14 items
ANSELL LIGHTING AZTEC ASYMMETRIC CCT LED FLOODLIGHTS
ANSELL LIGHTING AZTEC SYMMETRIC CCT LED FLOODLIGHTS
Showing 1 - 14 of 14 items
Key Features & Benefits
- 3CCT selectable – choose 3000K warm white, 4000K cool white or 5000K light output from each fitting.
- Extensive output range – Aztec options extend through to 320W for demanding commercial and industrial exterior lighting projects.
- Up to 57,000 lumens – AAZT6/ASY/1 delivers 57,000lm at 4000K from its 320W high-output configuration.
- Up to 180lm/W efficiency – selected Aztec models combine substantial lumen output with highly efficient LED performance.
- Symmetric & asymmetric optics – choose high-efficiency general-area illumination or asymmetric light distribution designed to reduce light pollution.
- IP66 protection – robust die-cast aluminium construction provides protection against dust and powerful water jets.
- Integral photocell – two selectable lux settings plus an off option provide flexible automatic lighting control.
- Enhanced surge protection – 20W–80W models feature 6kV protection, increasing to 10kV on 120W–320W fittings.
- Installer-friendly design – mounting bracket design, pre-wired 1.5m cable and fast-fit lever terminals help simplify installation.
- Moisture management – a pre-installed breathable gland helps prevent moisture accumulation inside the floodlight.
